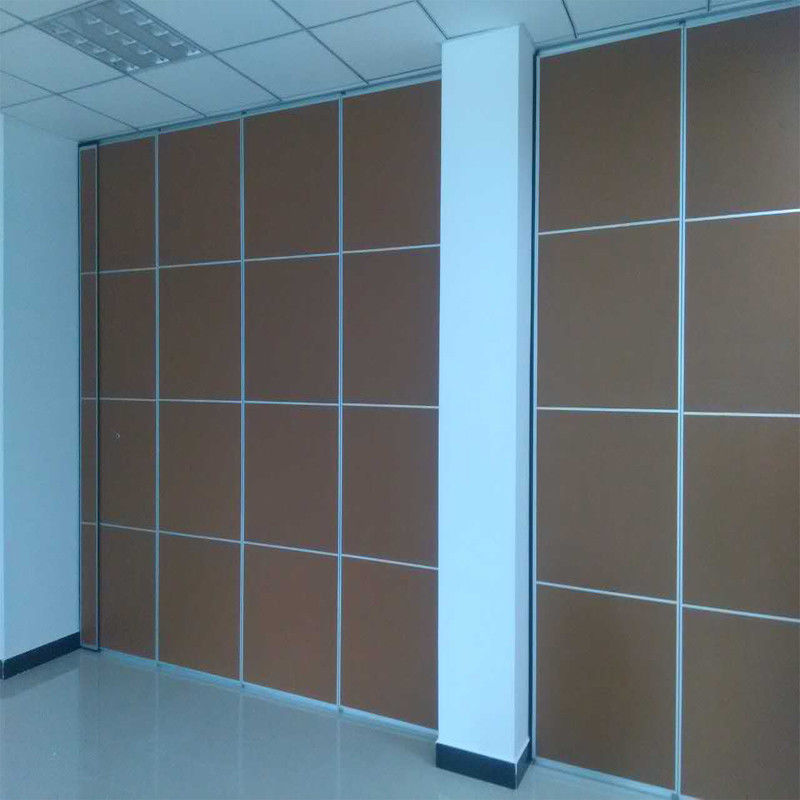

Soundproof Sliding Meeting Room Movable Partition Wall On Wheels And Track
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | BUNGE |
| Model Number: | 65 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | USD 80-90 Square meters |
| Packaging Details: | Partition board paper packaging, and finally packed in wooden carton |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 Square meters per month |
|
Detail Information |
|||
| Product Name: | Partitions Wall | Material: | Aluminum Frame |
|---|---|---|---|
| Surface: | MDF Melamine | Height: | Max 4000mm |
| Width: | 1200mm | Thickness: | 65 Mm |
| Application: | Meeting Room | Advantage: | Diver Room |
| Color: | Customized | ||
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Soundproof Sliding Folding Meeting Room Movable Partition Walls On Wheels And Track
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Product performance
This product for the suspension type movement partition door, with the guide rail, the lifting wheel slippery form laid and receives the wall body,
arranges the space ingeniously, the use operation is simple.
The main wall board is composed of steel frame, mechanical extension system, sound insulation material, aluminum alloy sealing strip, special plastic, basic plate and various decorative materials.
Wallboard bearing parts are made of special heavy-duty aluminum alloy track and movable universal lifting wheel, combined with steel Angle frame and other accessories, the product is more firm, stable and perfect effect concept.
The wall board side mouth surface USES the aluminum alloy sealing, the seam is strict; The inner component is operated by a crank equipped with an extension mechanism (upper and lower telescopic system), which makes the wallboard and the ground more sealed.
The wall adopts the form of lifting, so that the ground is not laid track, to ensure the coordination and integrity of decorative style.
Scope of application
Hotels, guesthouses, exhibition halls, offices, business buildings, eat halls, convention and exhibition centers, government organs, banquet halls, multi-functional halls, schools, hospitals, museums, factories, dance halls and other indoor public places.
FAQ
1:What you should you do on site?
A beam (truss)should built on site for track installation.The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.
2:How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
3:What is lead time ?
The lead time is 7 days to 10days.
4:How to transport?
Sea transport is a common mode of transportation.In an emergency,can be air freight .
5:How do the goods packing?
Carton paper package ,MDF batten cover all around cotner.
6:What is procurement procedure?
Firstly, seng us the shop drawing (if the shop drawings is not available ,you can tell us the height from false ceiling to finfshed floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation.
Thirdly, we quote the movable wall in acordance with confirmed drawings.
