Foldable Hanging Sound Proof Partition Wall For Restaurant Customized Size
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 65 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity available |
|---|---|
| Price: | US $78-108 per square meter. |
| Packaging Details: | Paper Carton, outside with wooden boxes. |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 8000 square meters per month. |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Size: | Customized Size |
|---|---|---|---|
| Feature: | Sound Proof And Acoustic | Sound Efficient: | 30 DB - 55 DB |
| Material: | Aluminum Frame | Sample: | Free |
| Installation: | Drawing Or Manual Provided | ||
| High Light: | acoustic operable partitions,acoustic operable wall |
||
Product Description

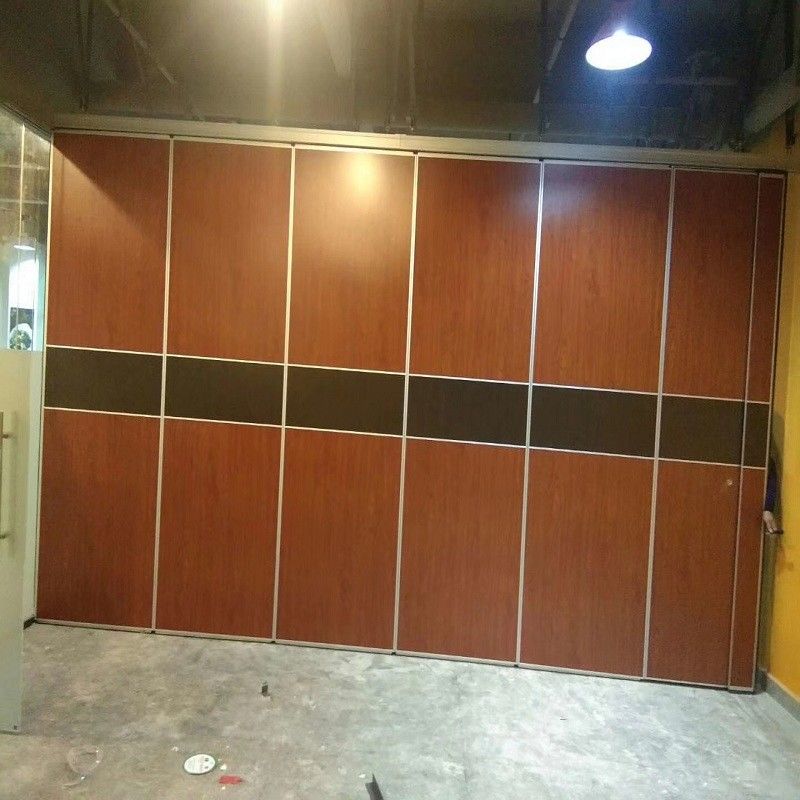

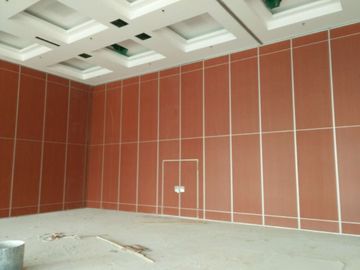

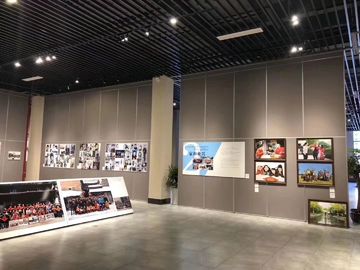

Sound Proof Foldable Hanging Movable Partitions Restaurant Acoustic Partition Walls
Acoustic partition walls features
A. Sound insulation: Each acoustic partition wall panel is fixed by a rocker, and the upper and lower sides are retractable. The edge of the acoustic partition wall is equipped with a special soundproof cover rubber. The concave-convex fit between the acoustic partition wall panel and the wall panel ensures the continuity of each wall panel after deployment, effectively preventing the sound wave transmission and achieving the sound insulation effect.
B. Multi-directionality: The hanging system adopts universal pulley (steel type, nylon silent type), which can conveniently send each wallboard to any position, and provide design scheme of track orientation and storage space according to customer requirements.
C. Stability: Internal steel structure, aluminum frame, telescopic system inside, ensuring durability and stability.
D. Integrity: There is no track on the ground, which guarantees the integrity of the decorative style.
E. Warranty: Five years warranty, lifetime after-sales service, customer files, completely relieved worries.
Acoustic partition walls details
The movable acoustic partition wall only needs to be installed on the floor or the load-bearing beam or the grid. The floor has no track and no damage to the ground. It only needs to be locked and locked, then it can be stable and reliable, and it is not easy to swing. The straightness is ensured when the partition is pulled out; and the impact force of 50-100 kg can be withstood; the movable acoustic partition wall is completely sealed from top to bottom, left and right, and four sealing strips on the upper and lower sides of the door panel, and two sealants on the left and right sides. Therefore, the sound insulation effect is particularly good, and the maximum sound insulation coefficient can reach 50dB;
The movable acoustic partition wall has excellent thermal insulation performance. According to different occupancy rates, the large space is divided into small spaces to reduce the air-conditioning power consumption. It can be made of high-efficiency fireproof materials according to customer requirements, and the fireproof performance is good. The surface is arbitrarily decorated, and the surface of the partition door can be made into a variety of decorative surfaces such as plywood, fireproof board, paint board, wallpaper, soft cloth, etc., and can be integrated with the interior decoration style, the overall appearance is elegant and can be unified with the interior decoration effect; Simple, flexible, one person can complete the whole process of partitioning; when closing, the partition can be hidden in the special storage cabinet, without affecting the overall appearance;
Acoustic partition walls technical details
| Model | 65 Movable Partition Wall |
85 Movable Partition Wall |
100 Movable Partition Wall |
Ultrahigh Movable Partition Wall |
| Panel Thickness | 65 MM | 85 MM | 100mm | 100mm |
| Panel Width | 680mm-1210mm | 680mm-1230mm | 680mm-1230mm | 680mm-1230mm |
| Panel Height | 2000mm-4500mm | 3000mm-6500mm | 5000mm-8500mm | 7000mm-17000mm |
| Frame | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium |
|
Acoustic alreduction coefficient(db) |
32db | 45db | 60db | 60db |
|
Hermetic flex distance(mm) |
45mm | 45mm | 45mm | 60mm |
| Weight(kg/m) | 17,19,20,24 | 24,25,28,38 | 40,45,48,55 | 60,60,60,60 |
| Faceplate Material |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board ,Gypsum board, Color steel plate, Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
| Panel Surface Finish |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Acoustic partition walls packaging
