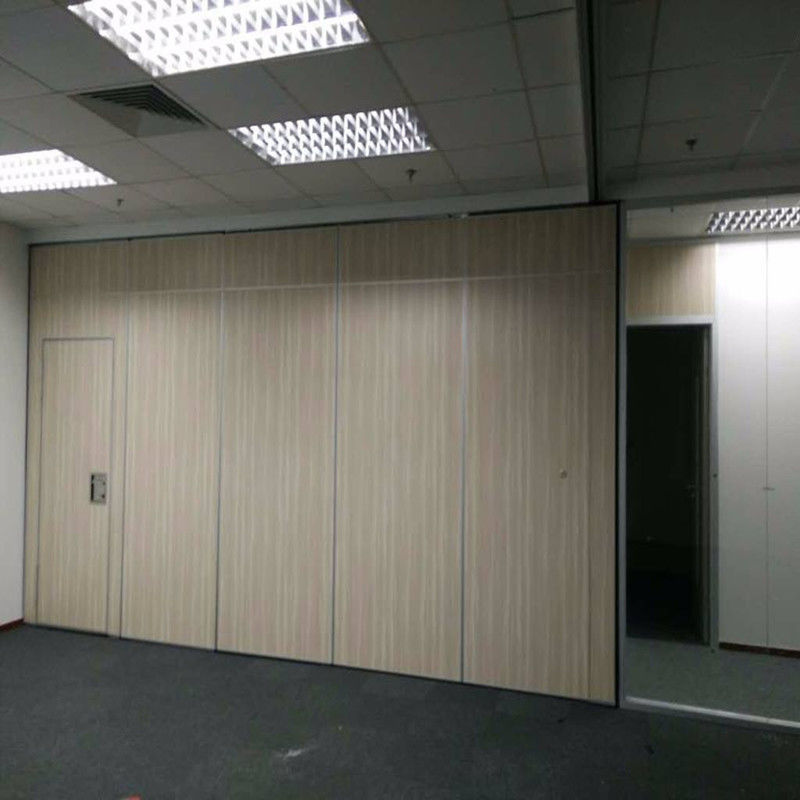

Mobile Fireproof Acoustic Partition Wall For Restaurant Banquet Hall
Product Details:
| Place of Origin: | Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $60-105 per square meter. |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. Outside with wooden boxes. |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Feature: | Sound Proofing |
|---|---|---|---|
| Color: | Accept Customized | Application: | Banquet Hall,hotel,ballroom |
| Thickness: | 85 Mm(3 1/4 Inch) | Service: | OEM ODM |
| High Light: | acoustic operable wall,movable acoustic partition walls |
||
Product Description
Factory Promotion Price Restaurant Mobile Banquet Hall Fireproof Acoustic Partition Walls
Acoustic Partition Walls Details
Guangzhou is a city that is more fashionable, avant-garde, modern, and more inclusive. At the same time, Guangzhou is known as the southern gate of China, and Guangzhou is also known as Guangzhou. When choosing a product, special attention is paid to the efficacy and cost-effectiveness of the product. In choosing the partition of the conference room, Guangzhou people pay more attention to details.
It can be partitioned into a soundproof, fireproof, moistureproof, movable, collapsible, and simple and convenient operation. It can be folded and folded flexibly to separate the space combination. According to their own space characteristics, reasonable and flexible space, greatly improve the utilization of the area. Can provide tailor-made manufacturers, diverse styles and widespread customer preferences.
The acoustic partition wall has good sound insulation and heat insulation functions to protect the privacy of customers and save air-conditioning energy. Each door has fixed sealing devices on both sides of the door, which can be fixedly locked and will not swing to both sides. When the fixing device is released, the door panel Suspended, push-pull and fold.
In the partition installation, the partition rails can be hidden above the ceiling of the ceiling. The partition design of the conference room is suspended from the ceiling by the ceiling of the suspension wheel, instead of placing the rails from the ground, which not only improves the appearance, but also improves the use of the partition. It also facilitates the staff and one person can easily separate the space.
Acoustic Partition Walls Advantages
1) Good performance of sound insulation, thermal insulation and Fire prevention.
2) Save much space for your building.
3) No tracks on the floor, it’s easy to install and remove.
4) Beautiful appearance, it is widely used in many spaces, such as meeting room, dining hall, exhibition
hall, Function room and office.
5) Aluminum or steel top hung system.
6) Retractable top and bottom seals ensure effortless movement of panels and sound-proof.
7) Concealed or exposed panel edge profiles.
8) Sealed for life roller assemblies provide smooth and silent movement.
9) Several levels of sound reduction.
10) Extensive range of surface finishes available.
Bunge Acoustic Partition Walls Systems-Technical Information
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65mm | 80mm | 100mm |
| Panel height | Up to 3500mm | Up to 5200mm | Up to 17000mm |
| Max height | 3500mm | 5200mm | 17000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | ||
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire retardant | as request | ||
| Retractable seals | have | ||
| Adjustable panels | Manual, with supplied operating handle | ||
| Pass doors | Single door or double door as request | ||
| Sound insulation | 32dB | 40dB | 50dB |
| Weight | Approx 22-35kg/sqm | Approx 25-40kg/sqm | Approx30-48kg/sqm |
| Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
||
How to install the acoustic partition walls
1. After the acoustic partition walls rail is transported to the construction site, the construction personnel should first understand the general decoration style of the site, including the ceiling shape, the ground shape, whether there is a skirt line on the wall, etc., timely communicate with the on-site woodworker, and then release the line to determine the track installation. position;
2. After the horizontal line is placed, the construction side will determine the layout direction of the air-conditioning duct fire-fighting pipe, and it is convenient to determine the steel structure installation form, whether it is a straight pull or a diagonal support or a U-slot fix. These are responsible installation teams. Do the preparation before the construction, otherwise work and do things, when the impact on the site construction layout, but also to rework, seriously affect the construction progress, will also bring unnecessary trouble to Party A;
3. After the acoustic partition walls track is installed, the track level will be self-checked again, and finally the steel structure will be rust-proofed, and then Party A will be notified and the position of the track movable port will be clearly stated. When the ceiling is clearly indicated, it cannot be fixed with the track. Otherwise, loading and unloading The door panel will likely damage the integrity of the ceiling.
