|Product Name:||Acoustic Partition Walls||Panel Material:||MDF+Laminate|
|Open Style:||Sliding||Feature:||Acoustic,sound Proofing|
|Thickness:||85 Mm(3 1/4 Inch)||Size:||Accept Customized|
|Iner Material:||Soundproof Cotton||Colors:||Can Be Customized|
MDF Laminate Finish Acoustic Operable Partitions Sliding Foldable Partition Walls Panels
Acoustic partition walls details

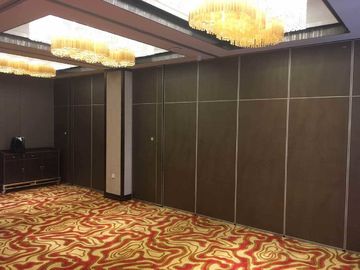

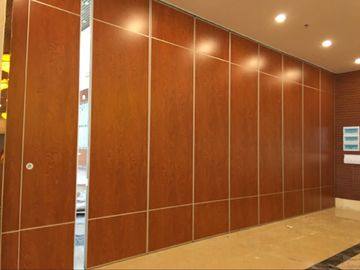

Acoustic Partition Walls Cases
Acoustic partition walls are made of high-quality anodized aluminum frame and environmentally friendly composite panels that move on ceiling tracks and do not require floor rails. The standard thickness of the panel is 65mm, 80mm and 100mm and the width is up to 1219mm. The maximum height is up to 17 meters high.
The acoustic partition walls consists of a series of interlocking panel and a quick set of foldable top and bottom seals. STC 32 to 53 is reached in the laboratory environment. Its excellent performance in sound insulation and the easy operation make it ideal for restaurants, schools, offices, religions, hospitals, shopping malls and many other indoor applications.
A wide range of finish options are available for acoustic partition walls: melamine faced MDF or particle board, fabric, carpet, leather, veneer, high pressure laminate, deck, acoustic board, white board. The panels can also supplied unfinished for site decoration.
Acoustic partition walls advantages
Use one wall to turn a large meeting room into two smaller ones.
Your office can be changed according to your needs - easily and quickly.
Within no time, you can have several separate rooms.
You do not need to build anything - you will get more space for significantly less money.
Visible aluminium profiles – anodised or powdercoated.
A wide range of panel finishes – laminated, veneered, covered with cloth or sheet metal, or even as rock imitation; attractive and very durable HPL film suitable for highly exposed areas.
Solid panels can be installed in combination with partially or fully glazed panels.
We also provide panels with a special acoustically absorptive surface.
Acoustic partition walls technicals
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||32-38dB Rw||36-45dB Rw||42-55dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
