Hotel Removable Acoustic Partition Wall Aluminium Frame Melamine Surface

China Hotel Removable Acoustic Partition Wall Aluminium Frame Melamine Surface supplier
Hotel Removable Acoustic Partition Wall Aluminium Frame Melamine Surface supplier Hotel Removable Acoustic Partition Wall Aluminium Frame Melamine Surface supplier Hotel Removable Acoustic Partition Wall Aluminium Frame Melamine Surface supplier Hotel Removable Acoustic Partition Wall Aluminium Frame Melamine Surface supplier

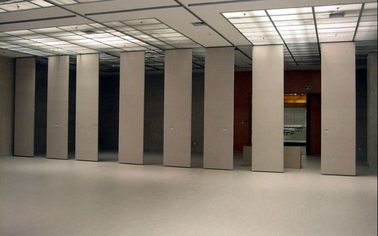

Large Image :  Hotel Removable Acoustic Partition Wall Aluminium Frame Melamine Surface

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 65 mm acoustic partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 82 / 126 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Contact Now
Detailed Product Description
Service: OEM Service Height: Less Than 4 M
Width: 500-1300 Mm Surface: Fabric,plywood,mdf Bare Finish
Open Style: Sliding And Folding Function: Soundproof
Application: Hotel,restaurant Thickness: 65 Mm

Aluminium Frame Melamine Surface Sound Proof Hotel Removable Acoustic Partition Wall


Specification:

Soundproof operable acoustic partition wall system is ideal for dividing and creating rooms.


The acoustic partition wall system can either be supported from the ceiling and is made up of wall panels that are connected by hinges and stored at the end of the track when opening the wall. There are sound insulation seals between the panels, ceiling and floor.

Feature:


Top hung system without the need for a floor track.



Retractable top and bottom seals for high sound insulation performance.



Ensure effortless movement of panels.



Combines elegance with robust construction.



Concealed panel edge profiles.



Sealed for life roller assemblies.



Provide smooth and silent movement.

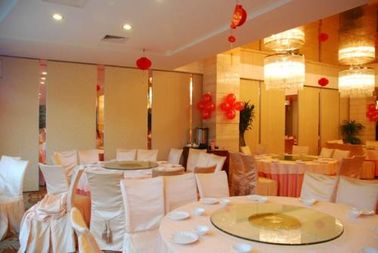

Hotel Removable Acoustic Partition Wall Aluminium Frame Melamine Surface


Acoustic partition wall structure:


The acoustic partition wall structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation. The combined structure forms a panel that has a total thickness of 85 mm and depending on the insulation material ensures a soundproof resistance max 53 dB.



When the acoustic partition wall system is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages. This enables the walls height to be adjusted by 15 mm.



The carriages are installed on every second wall panel and are located at the center of the panel. Because the wall hangs from the ceiling, it is important for the installation of the wall that the wall is attached to something solid (i.e. concrete ceiling, steel structure, wood beam etc.).



In the case that the acoustic partition wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by 15 mm.



At the end of the wall, a jamb profile is installed to close the last panel and which is also used as a door. This, together with the jamb is installed to start the wall and allows for the walls width to be adjusted 20 mm.


Technical information:



TYPE BG65 BG85 BG100
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

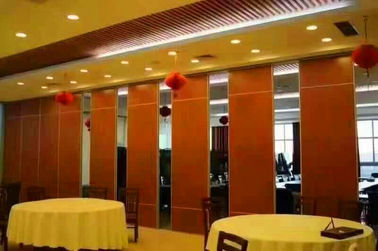

Hotel Removable Acoustic Partition Wall Aluminium Frame Melamine Surface

Acoustic partition wall operation:

When more flexibility is needed, multidimensional panels make it easy to rearrange the space. The system makes it possible to manually move the individual panels over multiple axes and thus to follow straight, curved or even crossed rails. As long as they remain on the same floor, the panels can be moved as far as a rail can drive them, whether for packing or storage.

We can offer:


 A full professional design service.


Survey and installation guide.


Using top quality materials and components.


A fully experienced work team.


Maintenance contracts to ensure your valuable asset remains in full work order.
