Decorative Soundproof Classroom Wall Partitions With Sliding Door Melamine Surface
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm acoustic partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 91 / 134 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Height: | 4 M | Service: | OEM Service |
|---|---|---|---|
| Thickness: | 65 Mm | Open Style: | Sliding |
| Position: | Commercial | Product Name: | Acoustic Partition Wall |
| Material: | Melamine,fabric,leather | Application: | Classroom,office |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description
Decorative Soundproof Sliding Door Melamine Surface Classroom Acoustic Partition Wall
Specification:
Acoustic partition wall is our top of the range operable walls. The system offers several layouts and stacking arrangements to create many useful areas within the working space.
Acoustic partition walls are sliding partitions available in three varying thicknesses . This system is top hung. Each panel is individually supported by a track system mounted on the ceiling. No floor track is required.
To create the seal, each panel has interlocking vertical profiles and retractable rubber seals. A handle inserted into the vertical edge of each panel operates the retractable seals.
One half turn of the handle operates a mechanism inside the panel that moves the seal against the floor and against the track. In most cases the last panel has a telescopic leading edge with a rubber seal operated with a handle inserted into the face of the panel. This panel will close and seal the whole system.
Advantage:
Alternatively, top hung with/without floor track.
Face operated salopettes bolts lock wall securely in position.
Continuous contact sweep seals minimize sound transfer.
Single wing or bi-parting configurations.
Leading element is full height pass door.
Optional vision panels.
Parking centrally or to side of line of track.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Application:
Ease of operation, acoustic performance and pleasing aesthetics are combined in it to create movable walls that maximize spatial versatility in offices, conference and meeting rooms, training areas, educational establishments, hotels and banqueting suites.
Aluminium accessories:
The acoustic partition wall tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.
Application:
The acoustic partition wall panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.
Movable wall system is a high quality bespoke movable wall system to suit timber panels up to 150 kiliograms in weight, there are multiple options for Door types, parking areas and track layouts.

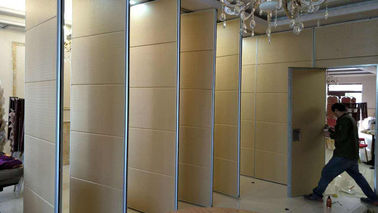

Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.
Operation:
All operations should be gentle and should pay attention to safety. Facing the screen station, use both hands to grab the screen and pull the screen in the direction of the rails; turn the screen in the direction of the rails.
After pushing the screen to its place, fix the screen. Tip: When pushing the screen to the intersection, you should pay attention to the direction of the rail, and then gently push the screen along the rail to the position where it should be placed.
