Decorative Material Movable Sliding Partition Walls For Meeting Room Top Hanging System
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm sliding partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 91 /138 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Application: | Meeting Room,classroom | Height: | 4 M |
|---|---|---|---|
| Thickness: | 65 Mm | Color: | Custom Design Color |
| Open Style: | Folding And Sliding | Width: | 500-1200 Mm |
| Service: | OEM Service | ||
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

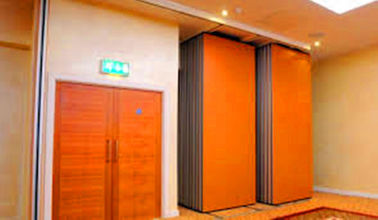

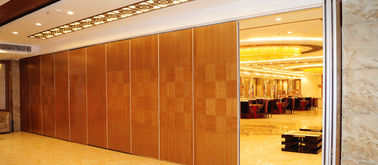

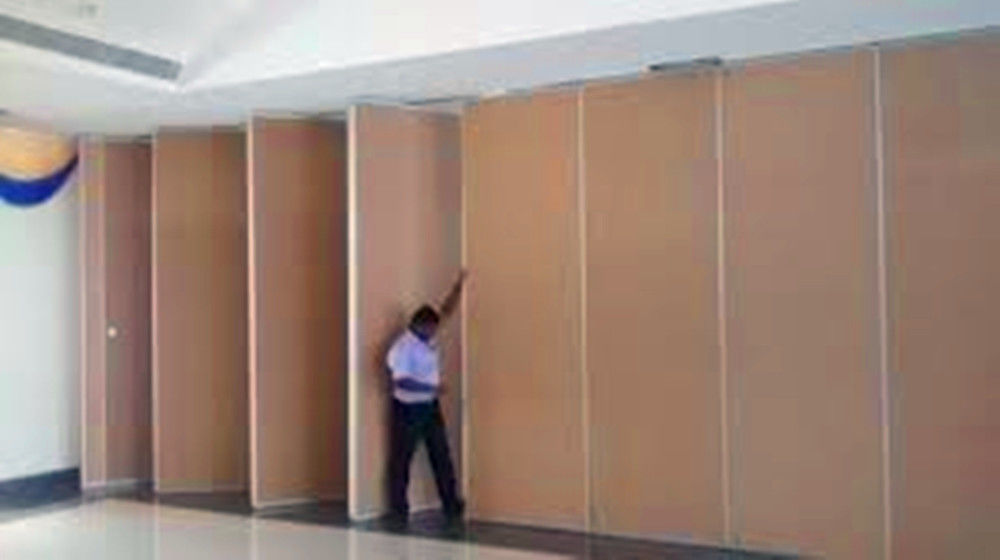

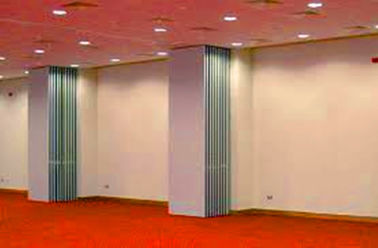

Top Hanging System Movable Aluminium Profile Meeting Room Sliding Partition Walls
Description:
The sliding partition wall is a kind of operable wall that can divide a large space into a small space or a small space into a large space at any time according to needs and has a general wall function. It can serve as a multi-purpose room with multiple functions.
The sliding partition has the characteristics of easy installation, reliability, industrial production, fire prevention, and environmental protection.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Notice information sliding partition:
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
Feature:
No floor rails: Top hung system without the need for a floor track.
Stable and safe: Stable and reliable after the partition, easy to swing.
Insulation energy saving: Excellent insulation performance, according to different seating rate, the large space is divided into small space to reduce air conditioning power consumption.
Efficient fire: The use of highly efficient fire prevention materials, fire performance is good.
Retractable and flexible: Retractable top and bottom seals ensure effortless movement of panels, numerous panel stacking options for complete flexibility,only a person can complete the whole process of cutting off.
Technical aluminium profile details:
Rubber sealing materials plays an important role in modern sound insulation technology, especially in doors, windows, cars, etc.
Our sealing rubber materials made by high quality EPDM rubber, foam production process.
Have outstanding temperature resistance, optimum hardness and mechanical strength for long lasting sealing results, Ozone resistance, resistance to chemical corrosion properties.
Application:
Increasingly, flexible and efficient space utilisation is becoming a must for offices, hotels, exhibition centres, studios and similar. Intelligent solutions are needed that facilitate multifunctional room confi guration. You have at your disposal operable partition systems capable of harmoniously combining daylight-flooded and sound insulated room concepts.
