Sound Proofing Movable Wooden Foldable Partition Wall High Durability
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 138 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Feature: | Sound Insulation |
|---|---|---|---|
| Colors: | Accept Customized | Application: | Hotel,banquet Hall |
| Material: | MDF+Melamine | Style: | Sliding,movable |
| High Light: | soundproof folding partition,folding room partitions |
||
Product Description

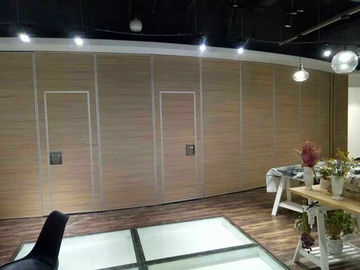

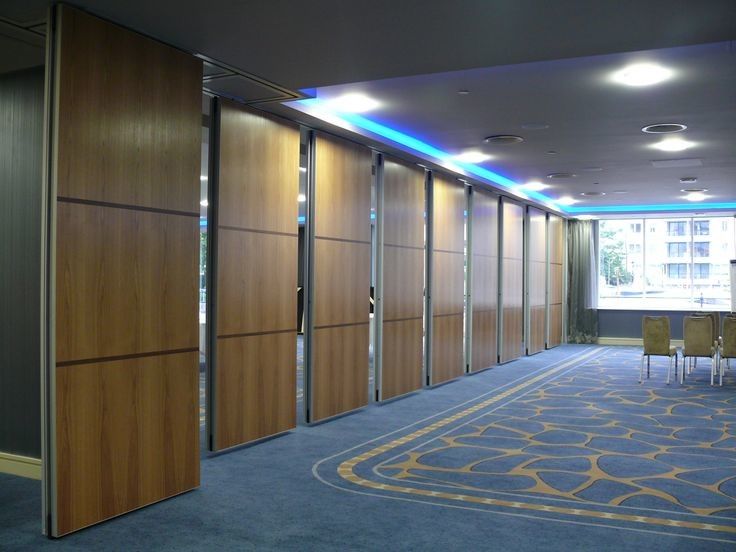

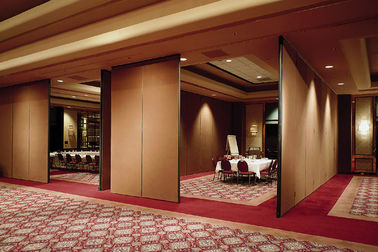

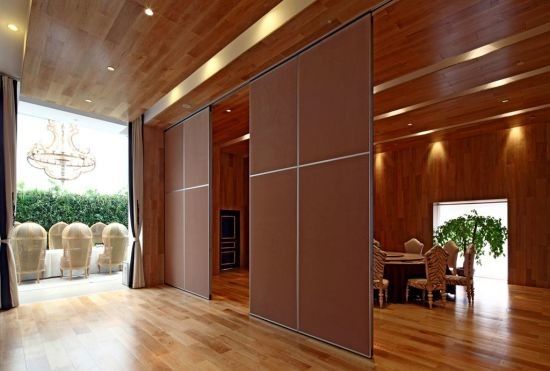

Floor to Ceiling Sound Proofing Movable Wooden Folding Partition Walls
Description of Folding Partition Walls
Folding partition walls – also known as sliding folding partitions, room divider or folding acoustic partitions – is globally recognized for their unparalleled quality, design flexibility, acoustic performance and durable durability. Our folding partition wall is manufactured in China and is made of aluminum frame and can be designed with the industry’s most comprehensive sizes, performance options and decorative surfaces.
We proudly manufacture in China and exports folding partition walls to many countries. There are mainly three different wall thicknesses. The use of thick aluminum frame durability can help achieve higher heights. A variety of acoustic and decorative surface designs are available.
The folding partition walls have a very wide range of construction styles to minimize sound conversion or absorb sound, thus minimizing acoustic room reflections.
Our folding partition wall is a movable soundproof room partition system which forms a removable wall. The movable walls are often used to temporarily divide a big room into several small rooms. Unlike other room partition materials, our movable wall has excellent soundproofing performance and they are hanging on an overhead track system
Features of BUNGE Folding Partition Walls System
1 Easy element adjustment after installation.
2 Folding partition walls track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
3 Folding partition walls panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.
4 Consists of required full wall elements and telescopic elements with 2-point suspension system with steel-roller, extruded aluminium track.
5 Folding partition walls can separate the space speedy and conveniently.
6 Muti-function: sound insulation,heat insulation,fireproof function.
7 Top hung system without the need for a floor track.
8 The folding partition walls are made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
5.Around the folding partition walls panel, there is sound insulation rubber, it can help to insulate the sound entering.
Technicals of Sound Proof Partitions
| Description of the whole system | |
| Item | Sound proof partitions |
| Partition Height | From 2 meters to 15 meters. |
| Sound Transmission Class(STC) | From 32db to 53db. |
| Optional Mode | Connected & seperated, sealed & non sealed |
| Description of accessories | |
| Series | Type 65, Type 80, Type 100 |
| Track System | Clear anodized 6063-T6 aluminum track;Imported dupont POM material roller,bearing capacity from 225kg to 250kg. |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion. |
| Finishes | 15mm fabric acoustic panel, Wood veneer, Laminate, Melamine, PU etc. |
Installation of Folding Partition Walls
1. After the folding partition walls rail is transported to the construction site, the construction personnel should first understand the general decoration style of the site, including the ceiling shape, the ground shape, whether there is a skirt line on the wall, etc., timely communicate with the on-site woodworker, and then release the line to determine the track installation. position;
2. After the horizontal line is placed, the construction side will determine the layout direction of the air-conditioning duct fire-fighting pipe, and it is convenient to determine the steel structure installation form, whether it is a straight pull or a diagonal support or a U-slot fix. These are responsible installation teams. Do the preparation before the construction, otherwise work and do things, when the impact on the site construction layout, but also to rework, seriously affect the construction progress, will also bring unnecessary trouble to Party A;
3. After the folding partition walls track is installed, the track level will be self-checked again, and finally the steel structure will be rust-proofed, and then Party A will be notified and the position of the track movable port will be clearly stated. When the ceiling is clearly indicated, it cannot be fixed with the track. Otherwise,the conference room partitions panel will likely damage the integrity of the ceiling.
