Payment & Shipping Terms:
|Product Name:||Sound Proof Partitions||Feature:||Sound Insulation|
|Colors:||Accept Customized||Application:||Hotel,banquet Hall|
|Material:||MDF+Melamine||Thickness:||85 Mm(3 1/4 Inch)|

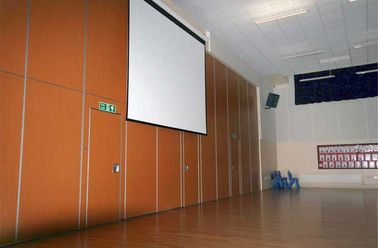

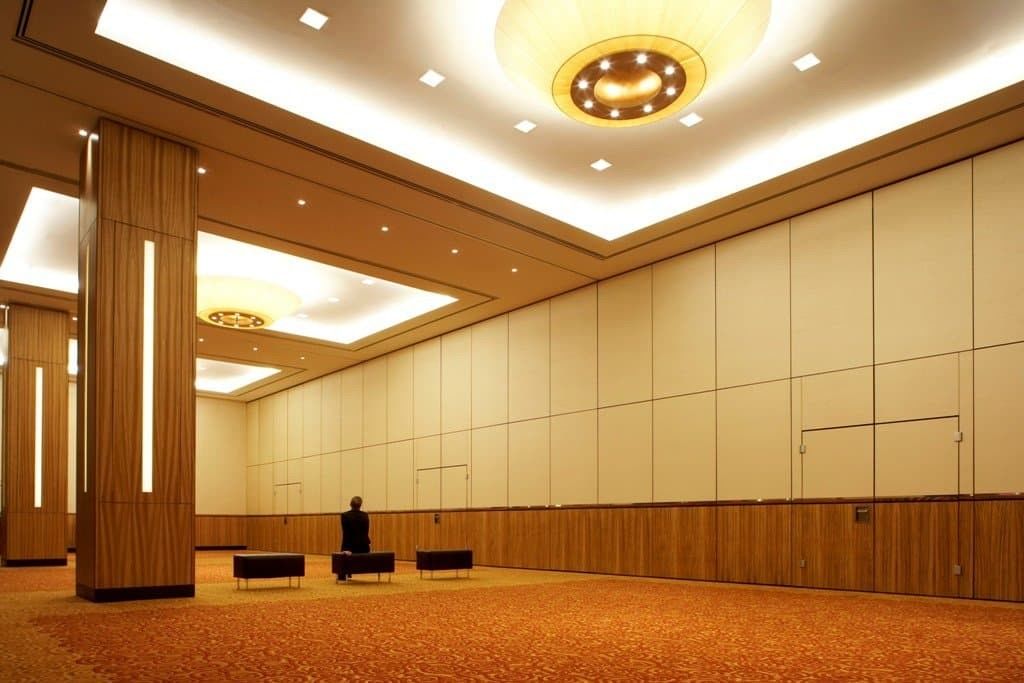

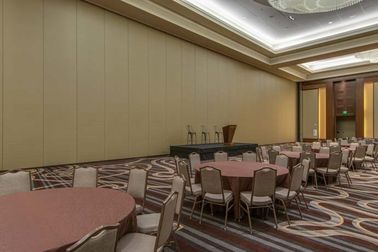

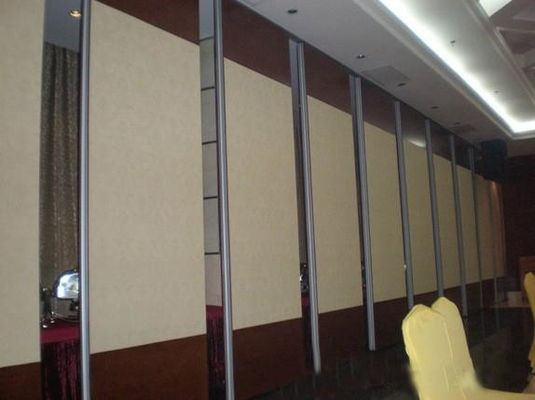

Hotel Banquet Hall Wooden Sliding Folding Sound Proof Partition Walls
Description of Sound Proof Partitions
Our sound proof partitions utilises up to date materials.It can attain much higher levels of sound attenuation than was previously achievable with a folding partition. The office partition wall is extremely easy to use and incorporates important features ,such as integral passing door and a flush appearance when closed.
The sound proof partition is available as a ceiling track to hang system with our without floor location pins, or as a floor mounted system supported on an ultra low profile floor track that can be installed flush with the floor covering.
The floor mounted system utilises a ceiling guide track that can accommodate an adjustment tolerance of 22.5 mm. both systems are avialble as centre or end tracking.
The sound proof partition walls system has a unique closing device, which helps the operator achieve a flush wall in one easy movement before closing the end pass door panel. This is particularly convenient when using a ceiling hung partition without floor track.
Advantage of Sound Proof Partitions
1.The sound proof partitions panel is made of high density aluminum frame, special made rubber, excellent sound insulation cotton, finish board, etc.
2.The sound proof partition is flat and hard;
3.The sound proof partitions finish panel is inserted in the aluminum track, assembled with multi-direction wheels.
4.The sound proof partitions panel can be stored in many different ways.
5.Sound proof partition is flexible, artistical and can be moved freely.
6.It doesn’t need track on the floor, we hang the track on the ceilings and it can be at the same color with the ceiling decoration.
7.It won’t affect the whole decoration style. We can add single or double doors on the panel for convenience.
8.There is sound insulation rubber around each panel, which can help to insulate the sound going through.
Technicals of Sound Proof Partitions
|Description of the whole system|
|Item||Sound proof partitions|
|Partition Height||From 2 meters to 15 meters.|
|Sound Transmission Class(STC)||From 32db to 53db.|
|Optional Mode||Connected & seperated, sealed & non sealed|
|Description of accessories|
|Series||Type 65, Type 80, Type 100|
|Track System||Clear anodized 6063-T6 aluminum track;Imported dupont POM material roller,bearing capacity from 225kg to 250kg.|
|Junction||"T"junction, "L" juntion, cross/ "X" juntion.|
|Finishes||15mm fabric acoustic panel, Wood veneer, Laminate, Melamine, PU etc.|
Common Applications of Sound Proof Partitions
Sound proof partition is a range of acoustically high-performance creating the most flexible space in offices, meeting room, schools, colleges, churches, hotel meetings, restaurants, shops, hotels, inspection centers, multi-function rooms, stations, clubs, art centers, stadiums, sports centers, art museums, the court, convention centers, golf clubs, and functional suites.
With high levels of sound attenuation and custom parking, sound proof partition provides a range of solutions for even the most complex requirements.
