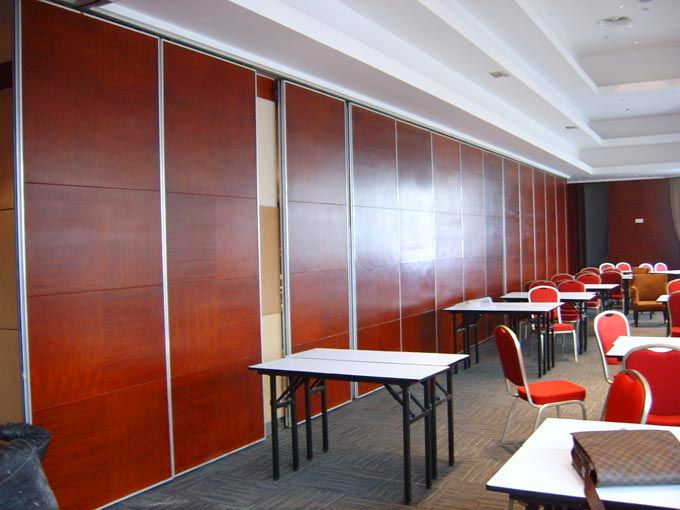

Interior Commercial Furniture Office Sliding Wall System / Folding Room Dividers
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm sliding wall partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 87 /139 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Finished: | Melamine,leather,fabric | Height: | 4 M |
|---|---|---|---|
| Certificate: | ISO9001 | Width: | 500-1200 Mm |
| Position: | Commercial | Sliding Door Type: | Folding Doors |
| Product Name: | Sliding Partition Wall | Thickness: | 65 Mm |
| Application: | Classroom,office | ||
| High Light: | acoustic sliding partition,sliding folding partition |
||
Product Description
Interior Commercial Furniture Sliding Wall System Folding Room Divider Office Partition
Specification:
The sliding partition wall is characterized by high sound insulation, fire prevention, mobility, and easy operation. It is extremely suitable for the use of space spaces in star hotel ballrooms, high-grade restaurant rooms, and high-level office conference rooms.
At present, the activity partition wall and fixed partition wall products have been widely used in hotels, guesthouses, mufti-function halls, conference rooms, banquet halls, office buildings, exhibition halls, financial institutions, government office buildings, hospitals, factories and other occasions. Basic functions: Active partition refers to the facade that separates the interior space.
The application is more flexible. It mainly acts as an occlusion. It is generally not under the board, and some can even be moved. The biggest difference between him and the partition wall is that the partition wall is under the board, that is to say, the active partition wall is injected into the decoration industry, so that the consumer can obtain major benefits at the lowest cost, and the flexibility of the activity partition wall is greatly improved.
Sliding Partition Wall Feature:
Top hung with no floor track required.
High acoustic ratings up to 53dB (independent laboratory tested) available.
Retractable acoustic seals at top and bottom of each panel operated either by a quick release handle.
Single or twin point suspension for central or offset stacking options.
Variable track arrangements.
Junction panels enable corner, three or four way abutments.
Panel finishes include Melamine Laminate, Veneer, Vinyl, Magnetic Dry Wipe. Whiteboard or Painted.
Optional inset pass doors, fully glazed panels and vision panels.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Aluminium accessories details:
Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Structure:
The sliding partition wall structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation. The combined structure forms a panel that has a total thickness of 85mm and depending on the insulation material ensures a soundproof resistance of 40-49 dB (decibels).
When the operable folding wall system is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages. This enables the walls height to be adjusted by 15 mm. The carriages are installed on every second wall panel and are located at the center of the panel.
In the case that the folding wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by 15 mm.
