Soundproof Modular Sliding Partition Walls With Doors Interior Position
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Open Style: | Sliding | Product Name: | Sliding Partition Walls |
|---|---|---|---|
| Feature: | Sound Proofing | Size: | 85 Mm |
| Color: | Accept Customized | Application: | Office,hotel,conference Room |
| Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
| Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
| Width: | 85 Mm(3 1/4 Inch) | ||
| High Light: | acoustic sliding partition,sound proof sliding partitions |
||
Product Description
Folding Soundproof Acoustic Modular Sliding Partition Walls With Doors
Specifications of Sliding Partition Walls System
| Model | BG65 | BG85 | BG100 |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging |
| Basic thickness | 65mm | 85mm | 100mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 6000mm | Up to 8000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm |
|
Floor/ceiling sealing strength |
Telescopic aluminum tube with rubber strip | ||
|
Side walls sealing strength |
Double seal tape | ||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB |
Advantages of Sliding Partition Walls System
1.Sliding partition wall is modernized decoration style. It can separate the space speedly and conveniently. And it has soundinsulation and heat insulation and fireproof function.
2.The Sliding partition wall is made from high density s/s frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.
3.The sliding partition walls finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways.
4.Sliding partition walls doesn't need track on the floor,we only hang the track on the ceilings and it can be at the same plane withthe ceiling decoration. It won't affect the whole decorationstyle.
5.Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.
6. The operation ways is much easier, it's better than the old ways which was use spring before.

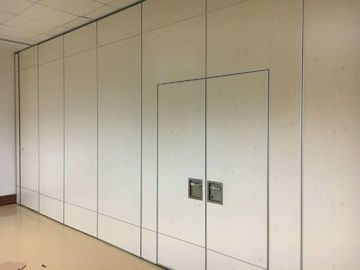

7.We can add single or double doors on the board for convenience.
8.We have many different finish to meet customer different requirement and get different decoration effect.
Aluminum Components of Sliding Partition Walls System
Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the acoustic operable walls panels with wheels.
Wheels/Rollers:It is the carrier for the acoustic operable walls,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.
Handle:Operate the retractable being up and down.
Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the acoustic operable walls.
MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
