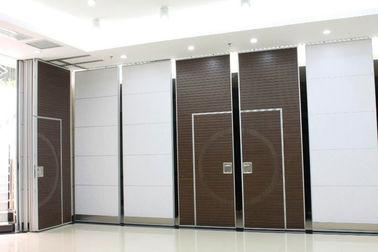

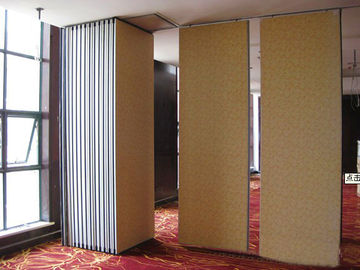

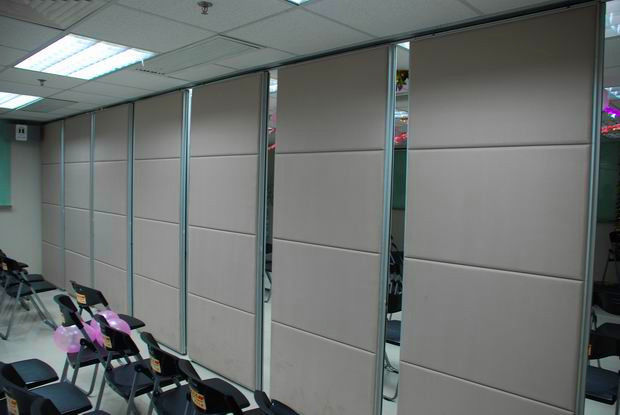

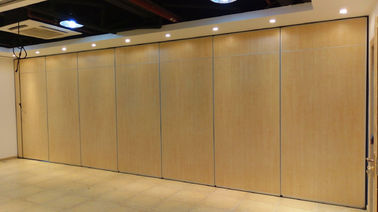

Restaurant Folding Partition Walls , Soundproof Movable Room Dividers
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 98 / 127 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Service: | OEM Service | Metal Type: | Aluminium |
|---|---|---|---|
| Height: | 6 M | Color: | Multi Color |
| Open Style: | Folding | Application: | Restaurant,conference Room |
| Function: | Soundproof | Thickness: | 85 Mm |
| Door Material: | MDF Board | Surface: | Melamine |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Sliding Divider,Soundproof Movable Dividers,Restaurant Folding Partition Wall
Description:
Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials.The panels move on a ceiling track with no requirement of floor guides or rails,and they have a standard thickness of 65 mm,85 mm and 100 mm,and a width up to 1230 mm.Maximum height can reach 13 meter tall.
Feature:
1.There is no track on the floor, just install the track on the ceiling;
2.Using environmental material, the maximum sound insulation coefficient up to 53 db;
3.During production,our factory usually use high-efficiency fireproof materials, it can make panels have good fireproof performance;
4.According to different customers requests ,we can design different surface decoration.Usually we suggest customers surface that it can be combined with the indoor decoration effect to choose.
5.The partitions can move really flexibility, only one person can complete the entire process of partitioning;
6.When closing, the partition can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.
Operation:
When moving a wall panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Advantage:
Panel faces are suspended from a steel frame with just 2 points of contact. The edges of panel faces are slotted into aluminium profiles.
This method of cladding the steel frame allows the panel faces to be acoustically separated from each other and thereby minimize the transfer of sound waves through the system.
Each panel has an extruded aluminium male profile to one vertical edge and a female profile to the other.These profiles are fitted with magnetic membranes which ensure positive interlocking of the panels.
Once the wall panels have been adjusted for height and level the roller stems are locked with a fail-safe
mechanism to ensure that the panels will align perfectly every time the wall is set up.
