Operable Folding Partition Walls / Soundproof Modern Wood Room Dividers
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Open Style: | Sliding | Product Name: | Folding Partition Walls |
|---|---|---|---|
| Feature: | Sound Proofing | Size: | 85 Mm |
| Color: | Accept Customized | Application: | Office,hotel,conference Room |
| Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
| Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
| Width: | 85 Mm(3 1/4 Inch) | ||
| High Light: | soundproof folding partition,folding room partitions |
||
Product Description

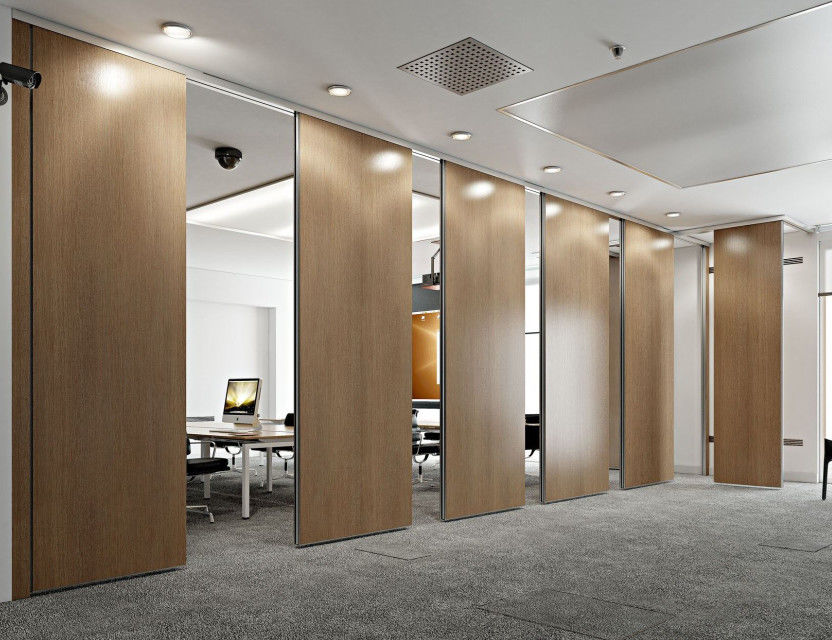

Soundproof Modern Wood Room Divider Operable Folding Partition Walls
The advantages of folding partition walls
1>Folding partition walls are modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function.
2> The folding partition walls board is made from high density frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.
3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways.
4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style.
5> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.
6> The operation ways is much easier, it’s better than the old ways which was use spring before.
7> We can add single or double doors on the board for convenience.
8> We have many different finish to meet customer different requirement and get different decoration effect.
The details of the folding partition walls
It doesn’t need track on the floor, we hang the track on the ceilings and it can be at the same color with the ceiling decoration. It won’t affect the whole decoration style. We can add single or double doors on the panel for convenience. Many different finishes are available to meet customer different requirements and get different decoration effects.

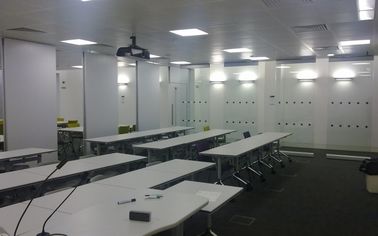

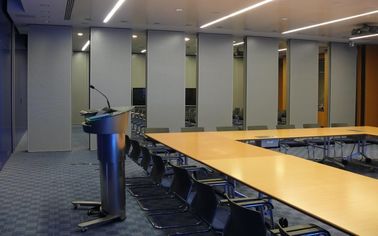

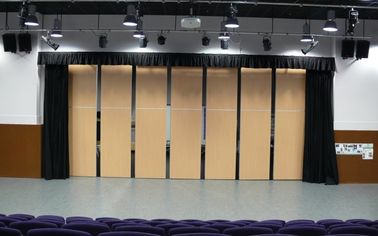

There is sound insulation rubber around each panel, which can help to insulate the sound going through. The operation way is much easier. It’s better than the old ways which using spring. The movable partition is widely used in exhibition center, hotel, shopping malls, school, multi-function hall, banquet hall, conference room, training room, etc.
The folding partition walls panel is made of high density aluminum frame, special made rubber, excellent sound insulation cotton, finish board, etc. The finish panel is flat and hard; The finish panel is inserted in the aluminum track, assembled with multi-direction wheels. The panel can be stored in many different ways. Huiacoustics movable partition is flexible, artistical and can be moved freely. And it has sound insulation, heat insulation and fireproof function.
| Model | TG-65 series | TG-85 series | TG-100 series | TG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
The procedure of installing the movable partition walls
1. Please designate the responsible person before construction and leave contact information to facilitate communication between the two parties on construction logistics.
2. If the ground has been finished before the track construction, if the carpet, floor tiles, floor, etc. have been laid, you need to do ground protection to prevent the welding sparks from damaging the ground.
3. You need to provide the height of the shed after the decoration is completed. We will determine the height of the track installation according to this height.
4. Because we need to calculate the size of the hanging track, you need to provide the net size of the finished wall and the pillar. We will hang the track according to this size.
5. After the track suspension is completed, the reserved wall size given by you cannot be changed. Because we calculate the construction according to this size, if the size is changed, the door panel will not operate.
6. After the track suspension is completed, our construction personnel will fill in the dimensional confirmation letter to provide accurate data for the production of the wallboard. You need to specify the person in charge of the site to confirm.
7. The movable partition should be horizontally perpendicular to the ground directly below the track, and the error should not exceed 1cm.
8. If there are other constructions at the same time, please do not pierce the foreign objects such as nails and insert them on the installed rails. This will cause the door pulleys to not run in the track.
9. Each group of tracks will have a “raw mouth”, which will be removed before installing the door panel, and then installed after the door panel is installed. This "raw mouth" cannot be sealed.
10. In order to facilitate future maintenance and maintenance, please reserve the inspection port near the ceiling track to facilitate the maintenance personnel to enter the inspection port for product maintenance and maintenance.
11. If you need to improve the sound insulation effect of the product, after the track is hung, you can make sound insulation between the track and the original shed.
12. After the door panel is hung, it needs to be debugged. Active partition reminder Do not use the door panel before our personnel have debugged the door panel, otherwise forcible use will result in damage to the door panel.
