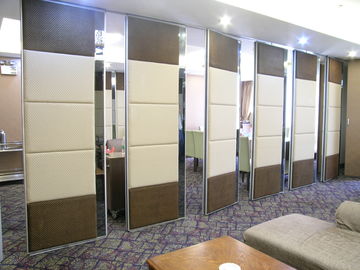

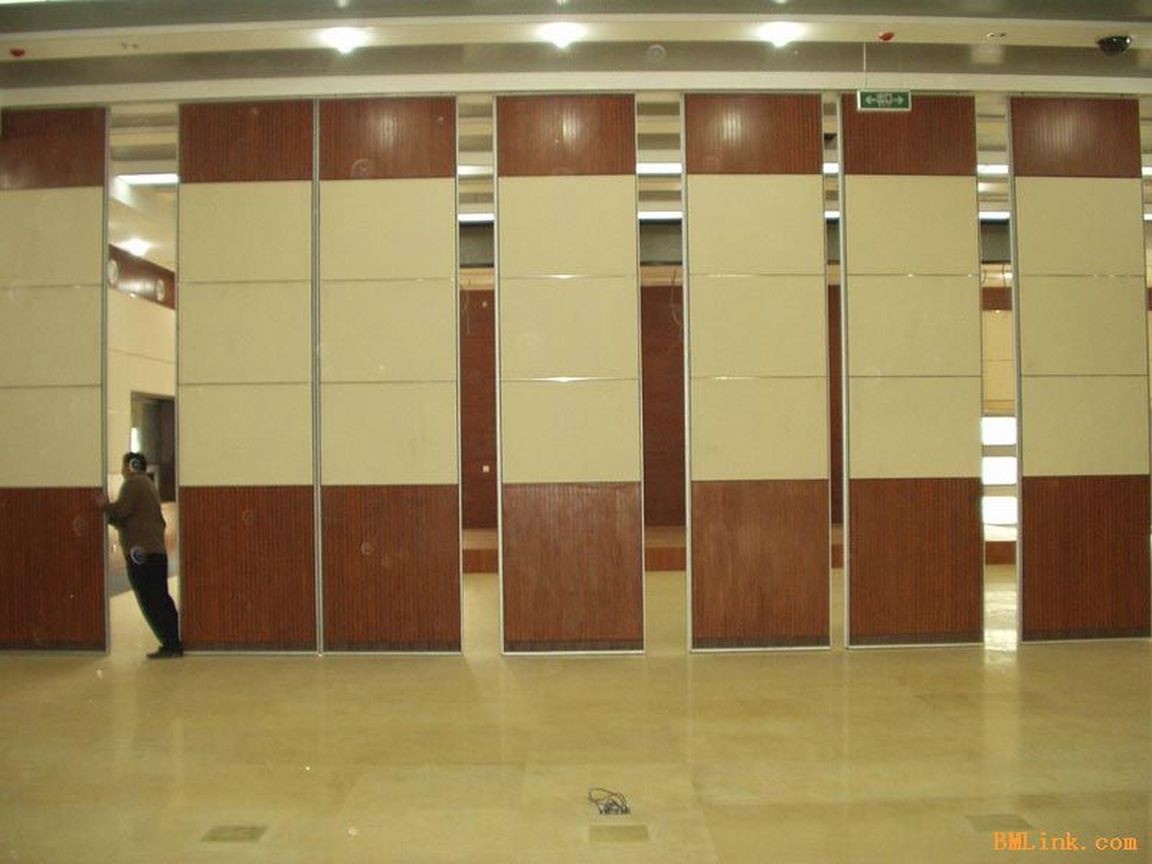

Aluminium Frame Operable Acoustic Movable Walls / Banquet Hall Sliding Folding Partition
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 118 / 130 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Finished: | Leather ,fabric |
|---|---|---|---|
| Certificate: | ISO9001 | Height: | 6 M |
| Thickness: | 85 Mm | Door Material: | Aluminium Alloy |
| Open Style: | Sliding | Position: | Interior |
| Service: | OEM Service | Application: | Banquet Hall, Hotel, Restaurant |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Operable Movable Acoustic Walls Sliding Folding Partitions
Specification:
The partition of the conference room is applicable to meeting rooms, classrooms and training rooms of some government agencies, universities, education structures, financial insurance groups and other institutions. You can divide rooms according to the number of people in the meeting, do not disturb each other, increase the space usage rate, and maximize the rational use of limited space.
The movable soundproof wall can be equipped with high-quality soundproof and fireproof materials. For example, if the conditions on the site are special, such as a ladder classroom, the situation of a fan-shaped classroom can be tailored to fit the active partition.
The partition of the product's characteristics makes it possible for the owner of a product to create a full guest operating space, thereby bringing about considerable economic benefits. The word “full pass” also means “this means that the guests are full of gifts.
”The movable Partition has always advocated the teamwork spirit of “Bamboo Manor Park”, that is, each member of the team will maintain the “bamboo” noble sentiment—hollow (modesty), festival (gasp), and upright ( Just to be honest, to express our attitude towards the company, we hope that the development of the company will be able to lead in all directions and the performance will continue to rise.
Feature:
1. The folding partition has a good sound insulation effect and is called active sound insulation wall. It is a good choice for office decoration, hotel decoration restaurant banquet hall, and partition room activity partition.
2. When the activity is cut off, its main frame adopts standard T6 anode aluminum, which is not easily deformed, corroded or has spots, but its weight is relatively light. On the two sides of the movable partition panel, we can apply wallpaper, cover cloth (soft pack), stick solid wood thread or other things on the panel. The decorative surface of the movable partition can be varied.
3. In the interior of the sliding folding partition, the whole screen is fixed with solid wood strips, so that the active partition door panel is stable without being bulky; the upper and lower telescopic mechanisms are installed so that the pressure strips at the upper and lower ends of the movable partition can be freely retracted to achieve the effect of fixed partition and sound insulation. In addition, in order to further enhance the soundproofing effect of the partition, the interior of the partition is filled with fiberglass insulation wool.
Advantage:
Room to move, room to work or play. Public meeting or private function, assembly or seminar: Movable Acoustic Walls and Sliding Folding Partitions put all the options at your fingertips.
Gliding effortlessly along a concealed track suspended above the ceiling, our movable walls can provide all the acoustic and aesthetic qualities of a fixed wall, with the immeasurable advantage of maximum flexibility.
A variety of configurations and divisions can be achieved easily and rapidly. Once in place, spring loaded seals lock the panels into position.
The fully modular system allows for design on a project by project basis, taking account of all individual requirements. Installation is carried out by highly experienced engineers.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Every panel of the folding wall is equipped with a sunken stopper which is used to lock the wall, using a separate handle/knob, into an opening recessed into the floor. The openings in the floor are covered with templates which are supplied with the wall. The separate panels of the wall are joined with hinges.
Track adjustment:
1. Remember that the rails are loose enough on all brackets. Guaranteed track pause time.
2. Tighten all rail connections and adjust the rail height correctly. The rail mounting direction must also be straight and horizontal.
3. In the installation of track facilities, sound insulation and mineral wool are necessary for installation.
4. There are "L", "T" and "Ten" spurs for the track. There are left and right points for the connection of the steering. It is generally not recommended to use the "10" spur. L and T are trimmed to their corresponding size, and their position is indicated by a numerical marker.
