Aluminium alloy Sliding Partition Wall for Exhibition Hall / Meeting Room
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 109 / 140 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Finished: | Melamine,fabric |
|---|---|---|---|
| Certificate: | ISO9001 | Width: | 500/1200 Mm |
| Height: | 6 M | Thickness: | 85 Mm |
| Door Material: | Aluminium Alloy | Open Style: | Sliding |
| Position: | Interior | Service: | OEM Service |
| Application: | Conference Room,office,meeting Room | ||
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Sliding Soundproof Partition Price Folding Wall for Exhibition Hall
Specification:
The partition wall is a good consideration of the propagation of sound waves, greatly improving the soundproofing of the partition. Partition models 65 type (65mm thick), 85 type (85mm thick), 100 type (100mm thick), ultra-high type, partition reference plane material gypsum board, fiber board, glass magnesium board, color steel plate, sound-absorbing board, A variety of panels, such as melamine panels, are available for selection. The structure and frame are made of 6063-T6 reinforced aluminum alloy.
The soundproofing performance of the partition is significant. After laboratory tests, the air sound insulation can reach up to RW=53dB. The panel material and internal soundproof materials used in the fire-proof partition are all flame-retardant materials.The overall fire resistance performance can reach up to 60 minutes. Internally-filled acoustic fiberglass is a lightweight, sound-insulating, and economical wall-filling material. The product uses an adhesive to cure the material to ensure its extension characteristics, effectively preventing the occurrence of falling phenomenon.
Pass door specification:

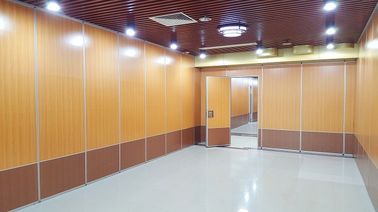

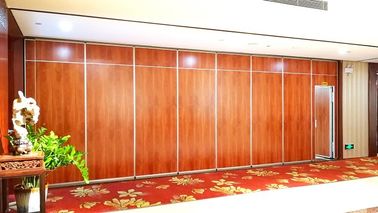

Pass Doors may be incorporated in selected panels to provide egress, service entrance or general access to an area. Signature Pass Doors all have mechanical retractable bottom seals, no sweeps dragging on the floor, and are constructed to match the panel. This design maintains the acoustical and aesthetic integrity of the Partition.
Pass door operation:
1. If there is a door in the door, first turn the square hole on both sides of the door to rotate 180 degrees, loosen the upper and lower seals through the transmission wheel, and then close the door in the door;
2, open the last screen of the telescopic aluminum plate and the upper and lower seals;
3. Retract the telescopic aluminum plate of the last screen so that its distance can at least turn the distance of the screen, generally about 140mm;
4. Push the screen to the position of the screen in the direction of the track.
5. After each group of screens is collected in the same way, press each two screens tightly to minimize the distance between the screens and the screens. If necessary, you can open the up and down motion seals of the last screen that is housed at the hidden plate so that it presses against the rails and the ground. This will prevent others from easily pulling the screen out.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Every panel of the folding wall is equipped with a sunken stopper which is used to lock the wall, using a separate handle/knob, into an opening recessed into the floor. The openings in the floor are covered with templates which are supplied with the wall. The separate panels of the wall are joined with hinges.
Structure:
In the case that the folding wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by 15 mm.
At the end of the wall, a jamb profile is installed to close the last panel and which is also used as a door. This, together with the jamb is installed to start the wall and allows for the walls width to be adjusted 20 mm.
