Payment & Shipping Terms:
|Material:||Melamine , Fabric , Wall Paper||Open Style:||Movable And Operable Partition System|
|Thickness:||65mm||Height:||2000 - 4000mm|
|Acoustic Rating DB (RW):||32 / 38||Type:||Movable And Operable Partition System|

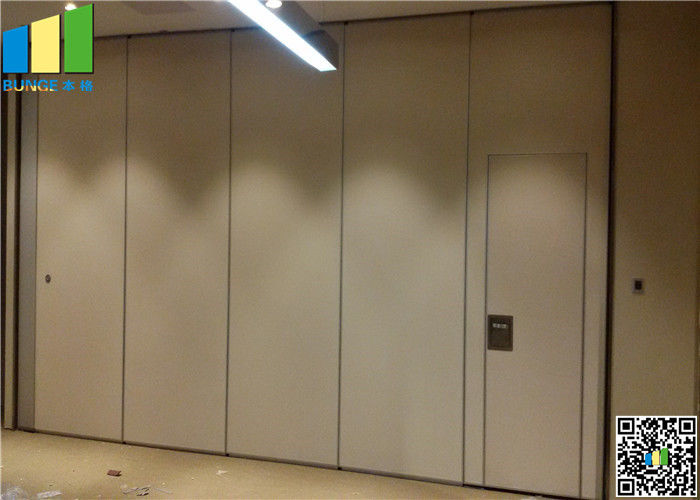

Operable Partition for Office Meeting Room , Conference Room Sound Proof Partitions
>>Features & Benefits
>>Panel suspension: Movable, top hung system without the need for a floor track
>>Panel width: Each panel 600mm to 1200mm
>>Roller on panel: Single roller or double roller
>>Soundproof rate: 32Db, 38dB,43dB,48dB,53dB Rw
>>Panel Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height
>>Track: Aluminum track or steel track
>>Top & bottom seals: Top and bottom pressure retractable seals ensure effortless moved and locked.
>>Panel stacking: Numerous panel stacking options for complete flexibility
>>Panel surface: MDF, Plywood, Wall paper, Fabric, Leather, Natural wood veneer, Melamine, Wood moldings, etc.
Technical Parameter for Partition Panel
500 - 1230mm
2000 - 4000mm
32 - 38db
Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
Plywood, Gypsum, steel, MDF
28 - 45 kg / sq
Pass door selection
Single or double door
The Accessories Of Movable And Operable Partition System
Our movable and operable partition system accessories are custom for each client and project , and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test, we have passed the Eco-protection test and Fireproof test , to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .
Operable Partition System Application :
It's widely used at huge stadium, cinema, meeting room , office room, music hall , theather and work shops etc . any places where need sound absorption can use this products .
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .
BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .
