Hotel Sliding Partition Walls , Folding Wall Sound Proof Door No Floor Track

China Hotel Sliding Partition Walls , Folding Wall  Sound Proof Door No Floor Track supplier

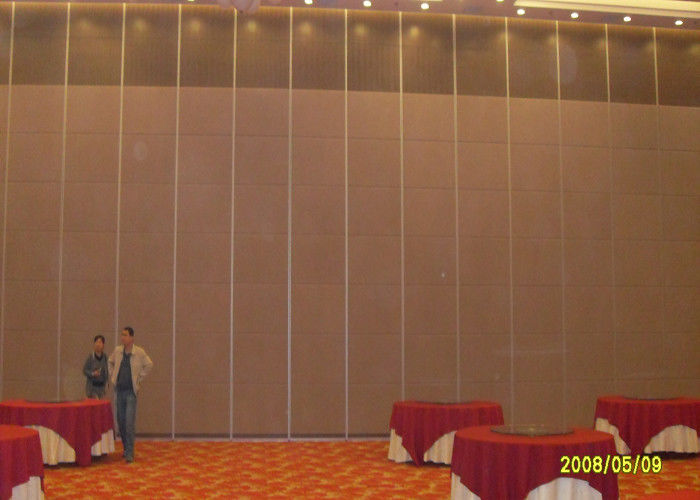

Large Image :  Hotel Sliding Partition Walls , Folding Wall Sound Proof Door No Floor Track

Product Details:

Place of Origin: China
Brand Name: BUNGE
Model Number: Type100

Payment & Shipping Terms:

Minimum Order Quantity: 10 Square Meters
Price: US $ 100 - 300 / Square Meter
Packaging Details: Carton package , MDF batten on four section sides , foam board on both front face
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 5,000 Square Meters per Month
Contact Now
Detailed Product Description
Width: 800 - 1230mm Track: Aluminum
Application: Hotel , Hall .meeting Room And So On Material: Veneer , Plaster , MDF , Melamin , Fabric
Open Style: Sliding Position: Commercial





Hotel Sliding Partition Walls , Folding Wall , Sound Proof Door , No Floor Track





Specifications:



Technical Parameter for Partition Panel

Panel Width

500 - 1230mm

Panel height

2000 - 13000mm

Sound proof

42 - 55db

Operation

Manual

Frame

Aluminum

Vertical profile

Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside

Finish options

Fabri c, veneer , HPL melamine , vinyl , carpet , customers own material , Bare finish

Base options

Plywood , Gypsum , steel , MDF

Max width

Unlimited

Panel weight

35 - 48 kg / sq

Pass door selection

door

Single or double door

Seals

Top

Manual

bottom

Manual





Description :



The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards .





Operation :



Partitions shall be top supported , manually operated panels stacked in an area nominated in the plans. When closed , the operable wall shall provide a complete sound retardant barrier . No floor track shall be used .





Track :



The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .





Hotel Sliding Partition Walls , Folding Wall  Sound Proof Door No Floor Track





Hotel Sliding Partition Walls , Folding Wall  Sound Proof Door No Floor Track
