Balcony Aluminium Frame Tempered Bifold Sliding Glass Door And Windows
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | BG 65 bifold glass door |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, 1 square meter also available |
|---|---|
| Price: | US $100-200 per square meter |
| Packaging Details: | Free Plastic Bubble Wrap + Plywood Carton for Protection |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Bifold Glass Door | Application: | Balcony |
|---|---|---|---|
| Glass: | Tempered | Advantage: | Waterproof |
| Opening Style: | Folding | Frame: | Aluminum |
| High Light: | Tempered Bifold Sliding Glass Door,Balcony Aluminium Sliding Glass Door,Waterproof Sliding Glass Door |
||
Product Description
Acoustic Accordion Folding Sliding Door Double Glazed Glass Panel Dubai

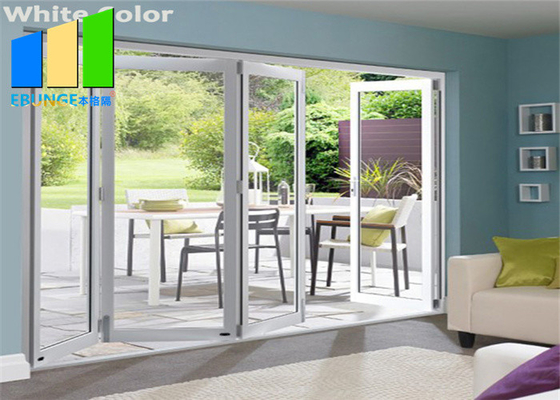

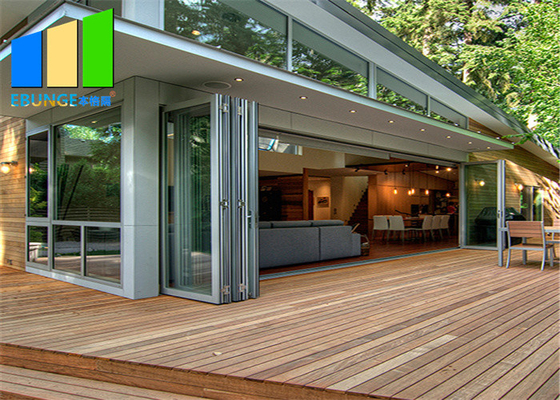

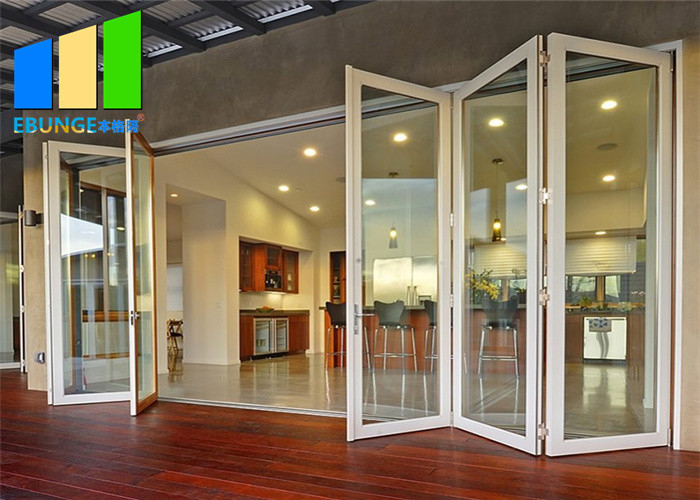

Bifold Glass Door Detail
Bifold glass doors can effectively save the space occupied by the door. Maximize the scope of vision. Push and pull freely, easy to fold. It has strong ventilation, high lighting efficiency, convenient glass cleaning, flexible use, safe and reliable, and long service life. Beautiful appearance, diverse styles and wide application range. It can be applied to high-end residences and is luxurious and elegant. It can also be widely used in small apartment houses, offices, exhibition halls and public places, etc.
* Frame Thickness:1.2-2.0mm
* Frame Color:Customized
* Powder Coating:Alkasu
* Hardware:Australia Doric
* Gasket:EPDM Gasket
* Thermal Break Material : PA66 /German heat insulation strip
* Glass Range:22mm≤Glass≤42mm
* Hardware Load-bearing:250KG
* Sash Width Range:720mm-3000mm
* Sash Height Range:1200mm--2700mm
* Warranty : 2 years
Technical Information
|
Aluminium Profiles
|
Aluminium Alloy
|
ALU Wall Thickness
|
Surface Finishing and Color
|
|
6063-T5
|
1.2mm--2.0mm, Normally 1.4mm for window, 2.0mm for door
|
Anodized, Sliver & Bronze
|
|
|
Powder Coating, colore should be confirm with buyer
|
|||
|
Electrophoresis, Sliver& Champagne
|
|||
|
PVDF
|
|||
|
With thermal break aluminium system design for more energy saving function
|
|||
|
Glass
|
Type
|
Thickness
|
Color
|
|
Float glass
|
Single: 4mm -12mm, Double Glazing (With 6A/9A/12A/27A space)
|
clear/super clear/ tinted blue/green/coffee brown/grey
|
|
|
Insulated double glass
|
|||
|
Insulated triple glass
|
|||
|
Reflective glass
|
|||
|
Low-E glass
|
|||
|
Tempered glass
|
|||
|
Laminated glass
|
|||
|
Customized art glass
|
|||
|
Hardware
|
High quality, made in China of well-know brand (Kinlong )/ made in Germany (Siegenia /Roto )
|
||
|
Accessories
|
Use EPDM sealant rubber
|
||
|
Stainless steel 304# accessories.
|
|||
|
Production standard
|
Basis on the shop drawings which approved by the buyer
|
||
Folding Glass Door Feature
Structurally strong (built to last).
Child friendly Low threshold (zero trip hazard).
Easy to operate.
In-line system (inward and outward opening options).
Top and bottom tracks
