EBUNGE Movable Acoustic Wall Partition System With Fabric Surface 4.6M Height

EBUNGE Movable Acoustic Wall Partition System With Fabric Surface 4.6M Height

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: Model 100 movable acoustic wall partition system

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Movable Acoustic Wall Partition System Panel Thick: 130 Mm
Surface: Fabric Application: Banquet Hall Partition
Height: 4.6 M Material: MDF + Aluminum
High Light:

Movable Acoustic Wall Partition System

,

4.6M Height Acoustic Wall Partition System

,

Banquet Hall Acoustic Partition Wall

Product Description

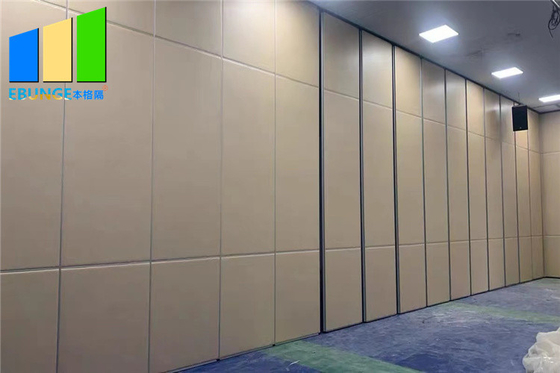

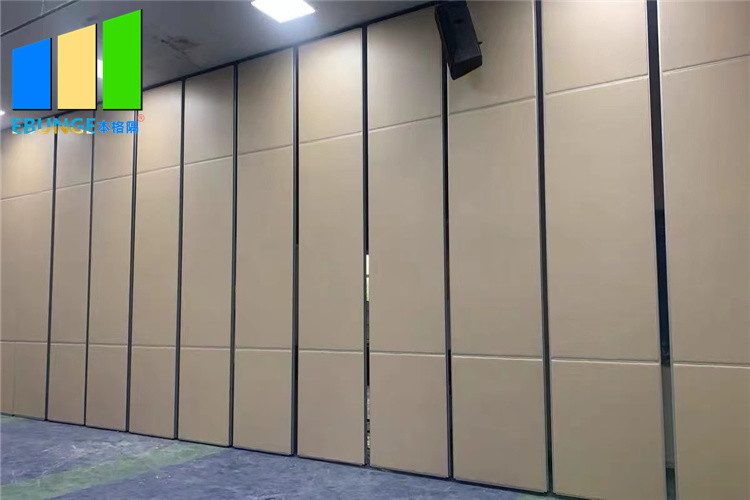

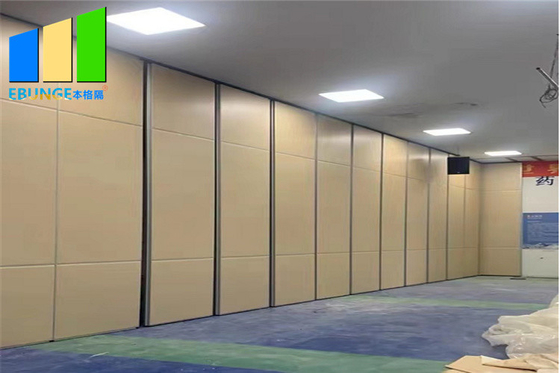

EBUNGE Movable Acoustic Wall Partition System With Fabric Surface 4.6M Height

EBUNGE Movable Acoustic Wall Partition System With Fabric Surface 5 m Height





Movable Acoustic Wall Partition System Detail



Movable acoustic wall partition system, sometimes known as operable walls or operable partitions, were developed to optimize the use of multi-purpose spaces which require the flexibility of different configurations. Movable acoustic wall partition system offer enhanced noise control performance over standard configurations, ensuring that shared spaces can be enjoyed and used as intended with minimal noise interference from the adjacent area. Our movable acoustic wall partition system is quick, easy and safe to manoeuvre by virtually anyone and allows for numerous room configurations and storage options. It is composed of independent glazed or solid panels which slide smoothly on rollers along a top-hung aluminium rail without the need of a floor track. The wall is sealed either manually or automatically.



Each movable acoustic wall partition panel is provided with interlocking seals to each vertical profile, while retractable top and bottom seals are either manually or electrically operated. The seals engage under pressure against the ceiling channel and floor to provide a continuous seal. Individual panels can incorporate single or double door sets and junction panels to form various configurations and access points. Final closure of the wall can be by a telescopic panel, extending wall jamb or full height door. The seal is flexible in its operation to allow for variations in floor and ceiling height and not only secures the wall from movement but provides excellent insulation against sound and temperature. Multiple tracking and parking configurations are available to help optimize available space. Each panel is composed of a galvanized steel sub-frame and aluminium outer frame. The movable acoustic wall partition panel may be double-glazed or have a solid fascia with a virtually unlimited choice of finishes including wood veneer, aluminium, laminate, melamine and fabric.



Technical Information

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

EBUNGE Movable Acoustic Wall Partition System With Fabric Surface 4.6M Height 0





Movable Acoustic Wall Partition System Features



Individual plate is suspended from the top track.


Various stacking arrangements.


A telescopic seal locked between the track and the floor.


Access door is available for operable partitions.


The surface treatment may be used in hardwood veneer, vinyl, melamine, laminate or spray.
