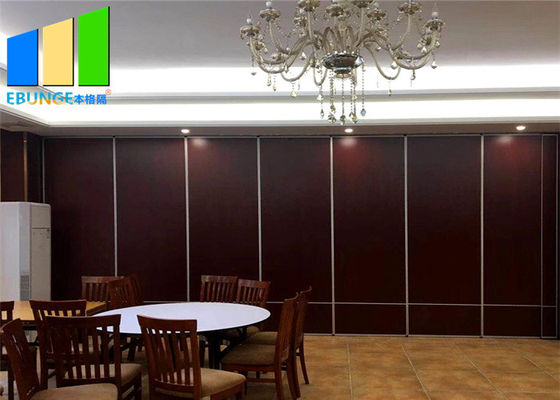

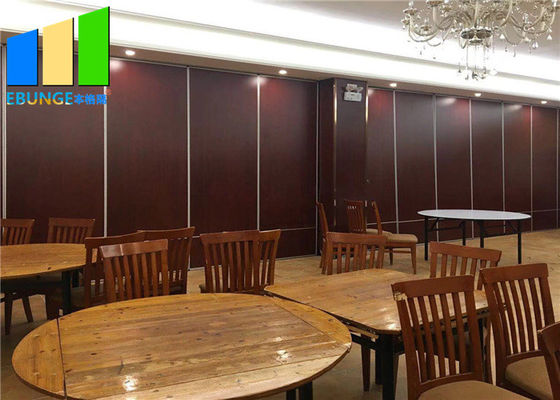

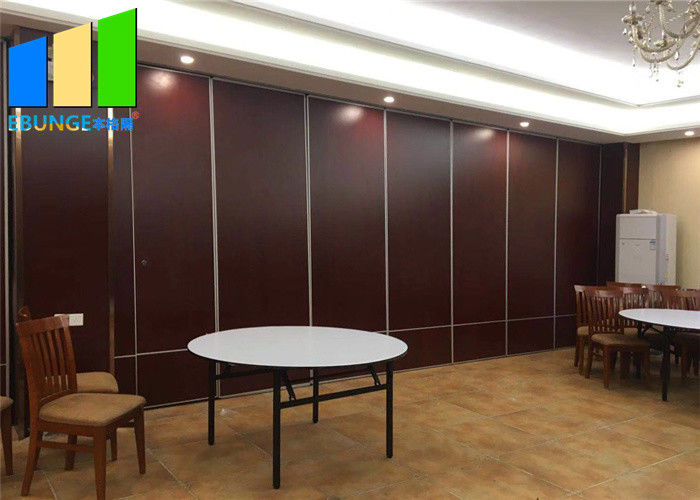

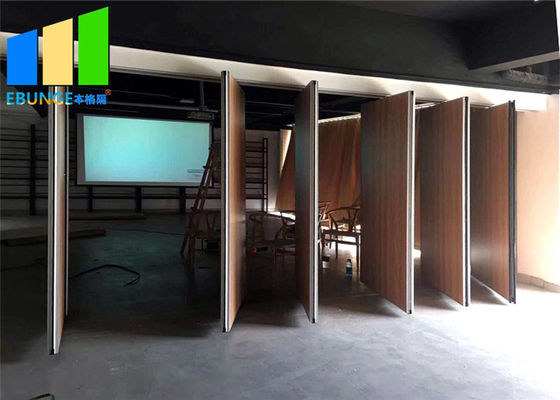

Decorative Wooden Restaurant Moving Flexible Foldable Partition Walls

Decorative Wooden Restaurant Moving Flexible Foldable Partition Walls

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: Model 100 foldable partition walls

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Foldable Partition Walls Application: Restaurant Partition Walls
Design Style: Modern Based Board Material: MDF Or Plywood
Based Board Thickness: 12 Mm Finishing: Wooden
High Light:

Flexible Foldable Partition Walls

,

Movable Folding Partition Walls

,

MDF Restaurant Partition Walls

Product Description

Decorative Wooden Restaurant Moving Flexible Foldable Partition Walls

Decorative Wooden Restaurant Moving Flexible Foldable Partition Walls





Foldable Partition Walls Operations



How to let the foldable partition walls change from the storage state to the partition unfolded state.



1. Push the first wall panel along the track to the place where the partition is needed. The convex shape of the wall panel is aligned with the left (or right) concave backing, push firmly, and then align the keyhole with the key handle and shake it clockwise. The mechanical rocker stretches the upper and lower telescoping system to support the upper track and the lower ground. The second partition uses the same method, and so on.


2. On the last piece, there is a partition with a width of about 350mm, and its left and right retractable partitions. Use the key handle to align the keyhole, and shake the mechanical rocker clockwise to make the partition extend up and down at the same time.


On the ground, move the left (or right) to bear against the concave backing of the right (or left), so that a fully enclosed partition is completed.



How to let the foldable partition walls change from the expanded state of the partition to the storage state



1. Align the keyhole with the key handle, and shake the mechanical rocker counterclockwise to shrink the upper and lower telescopic system, and at the same time the 240mm wide moving plate on one side also shrinks, so that the last partition can be pushed completely to push it to the pile.


2. The keyhole of other foldable partition walls is in the middle of the concave seam on the side. Use the handle to align the keyhole and shake the mechanical rocker counterclockwise to shrink the upper system and push it to the pile.


3. When the door panel enters to parking zone, shake the mechanical rocker clockwise to extend the expansion and contraction system of the upper and lower floors of the partition, and withstand the upper track and the lower ground, and the other foldable partitionwalls panels are in turn and so on.



Technical Information

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Decorative Wooden Restaurant Moving Flexible Foldable Partition Walls 0





Foldable Partition Walls Features



Economic overhead support with angle iron.


Easy setup and collect.


No auxiliary storage tracks or support are required.


The panels are designed to be stored at both ends or one end of the opening.


Smooth operation for each foldable partition walls panels.


Simple automatic bottom seal for efficient operation.


Suitable for applications that require superior durability, soundproof and frequent use.


Ideal for classrooms, meeting rooms, office, restaurant, ballroom, hotel, banquet hall, church, training center and so on.
