Conference Room Movable Partition Sliding Soundproof Partition Wall

Conference Room Movable Partition Sliding Soundproof Partition Wall

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: Model 85 sliding soundproof wall

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Sliding Soundproof Wall STC: 28 - 55dB
Based Board Thickness: 9 Mm Rockwool Infill: 55kg/m3
Application: Conference Room Partition Feature: Soundproof
High Light:

Sliding Soundproof Partition Wall

,

Movable Soundproof Partition Wall

,

55dB Sliding Partition Walls

Product Description

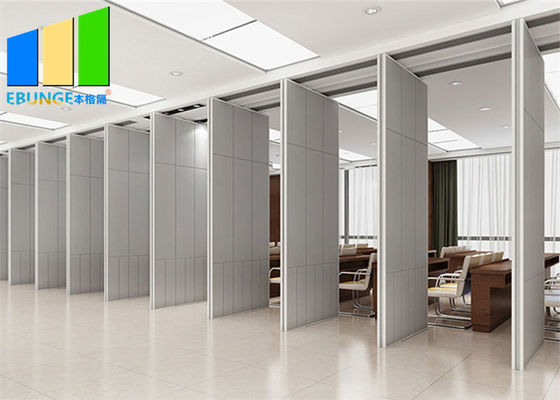

Conference Room Movable Partition Sliding Soundproof Partition Wall

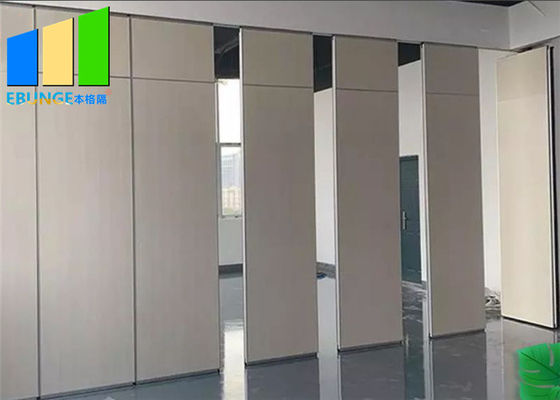

Conference Room Movable Partition Sliding Soundproof Partition Wall





How to install the sliding soundproof wall?



1. Observe the construction environment



Up to now, surveying the construction environment is the most important thing. The main purpose of surveying the construction environment is to determine whether the site has installation conditions, record the position of the beams and columns on the roof, the position of the air-conditioning piping system, etc. to customize the final construction plan. The most suitable time for construction is when the site has not undergone any renovations.



2. Measurement and positioning



According to the construction drawings, release the position control line of the hotel movable partition on the indoor ground, and lead the partition wall position line to the side wall and the ceiling. The installation position line of the fixing part should be ejected when the line is springed. The installation height of the track must be discussed with the construction team installing the ceiling, otherwise it will cause a lot of trouble.



3. Installation of steel structure and track fixings



The steel structure is a load-bearing structure connecting the roof and the track. The steel structure involves the safety of the movable partition system of the entire hotel, so it must not be taken lightly. Explode screws on the roof of the building according to the construction drawings, and then weld the angle irons to fix them. According to the design requirements, select the track fixtures. Before installing the track, it is necessary to consider the closing method of the wall, the ground and the ceiling and facilitate the installation of the movable partition wall. By calculating the weight of the movable partition of the hotel, determine the load borne by the track and the specifications and fixing methods of the embedded parts. The embedded parts of the track should be installed firmly, the track and the main structure should be fixed firmly, and all metal parts should be treated with rust prevention.



4. Installation track



⑴ Suspension type track: The suspension guide is fixed by installing pulleys on the top surface of the partition and connecting with the upper suspension track. The track and pulley should be selected according to the size of the load. The movable partition of the hotel, the track is fixed on the wooden or steel frame along the top with wood screws or butt screws. Heavy-duty movable partition wall, the track is fixed on the steel frame with butt screw or welding.



⑵Supporting track: The fixing method of the support guide is that the pulley is at the lower part of the sliding soundproof wall partition and forms the lower support point with the ground track. The track is fixed with expansion bolts or embedded parts of the track, and a guide rail is installed on the top wooden frame.



⑶ When installing the sliding soundproof wall track, the pulley or the reserved opening of the track should be installed in advance according to the specific situation of the track (usually on the side of the wall 1/2 partition)



5. Install the sliding soundproof wall



According to the installation method, accurately mark the pulley line on each panel, and then fix the fixing frame of the pulley on the upper or lower stile of the sliding soundproof wall partition with screws. Then put the panels into the track one by one, adjust each panel to be perpendicular to the ground, and push and pull to rotate flexibly, and finally connect and fix each fan. Normally, adjacent panels are connected by hinges.



6. Finish



Finishing according to design requirements. Generally, soft package, cold-mounted solid wood board, veneer panel, glass inlay, etc. are used. After finishing the finish, paint finishing or edge finishing should be carried out. The finishing construction shall be carried out in accordance with the requirements of the corresponding two standards.




Technical Information

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

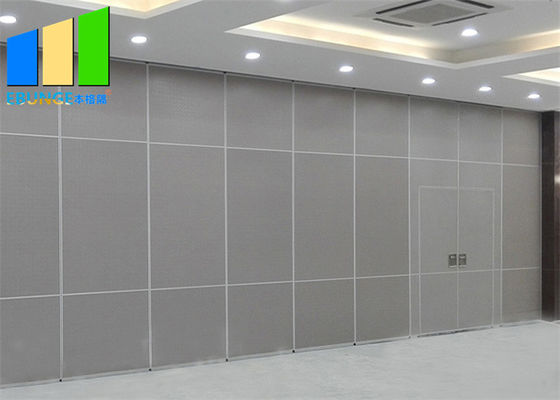

Conference Room Movable Partition Sliding Soundproof Partition Wall 0





Sliding Soundproof Wall Features



Extensive worldwide sales network that has proved that our soundproof wall partitions work well worldwide.


Technical advice or design is available, no matter where your facility is.


Integrated space management and acoustic product solutions that can be more profitable and economical to use in your building environment.


From your first query to the completion of the project, we are here to support.


Based on years of experience in architectural and design challenges, provide industry-leading technology to solve your space problems.


Unique custom applications that is flexible enough to meet the needs of any customer.


Strong industry support for other acoustic problems, not just sliding soundproof wall, but also acoustic wall and ceiling.
