Movable Soundproof Sliding Partition Walls For Restaurant

Movable Soundproof Sliding Partition Walls For Restaurant

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: Model 85 sliding movable partition

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Sliding Movable Partition Frame Material: Anodized Aluminium
Track Material: Anodized Aluminium Width: 800-1200 Mm
Application: Restaurant Sliding Partition Feature: Soundproof
High Light:

Movable Soundproof Sliding Partition Walls

,

Anodized Aluminium Sliding Partition Walls

,

Restaurant Foldable Partition Wall

Product Description

Movable Soundproof Sliding Partition Walls For Restaurant

Movable Soundproof Partition Wall Sliding Movable Partition For Restaurant





Sliding Movable Partition Deatils



Firstly. What is fixed wall?



A fixed wall is a wall that separates the internal space of a building. Fixed wall will not bear weight, and generally require lightness, thinness, and good sound insulation performance. There are different requirements for the fixed walls of different functional rooms. For example, the fixed walls of the kitchen should have fire resistance; the fixed wall of the bathroom should be moisture-proof. The partition wall should be as easy as possible to disassemble and assemble.



Secondly. What is sliding movable partition?



Sliding movable partition refers to the façade specially used to separate indoor space, which is more flexible in application, such as movable display panels, movable screens, movable partition walls, movable screens and movable soundproof walls, etc., which are derived from Japanese technology. The sliding movable partition has the characteristics of easy installation, reusability, industrial production, fire prevention, and environmental protection. It was introduced to my country after the reform and opening up, and it was generally used in the 1990s. Sliding movable partitions are easy to install, reusable, industrialized, fireproof, and environmentally friendly, and are widely used in civil furniture and industrial plant construction.



Thirdly. What are the differences between fixed walls and sliding movable partitions?



1. Generally speaking, the fixed wall is connected to the roof, so it can limit the range to the greatest extent, and at the same time, it can meet the needs of sound insulation and obscuration of the line of sight. However, the extent of the limited space of the movable partition will be smaller, in terms of sound insulation and shielding. The demand will also be small, and some even require a certain degree of permeability, so that the two spaces have better visual communication.



2. In terms of height, the sliding movable partition usually does not reach the top, although some can reach the top, but it is relatively poor in terms of sound insulation and obstructing the line of sight. For example, some sliding movable partitions will all be inlaid with large glass.




Technical Information

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

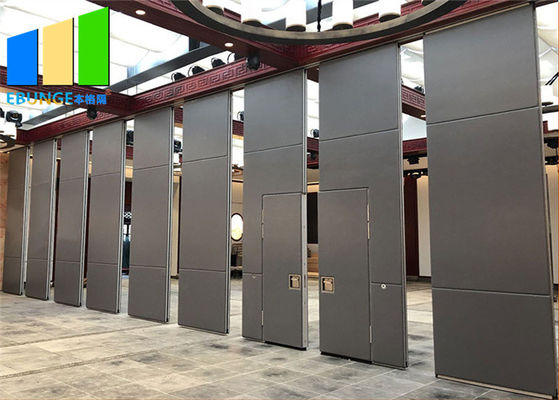

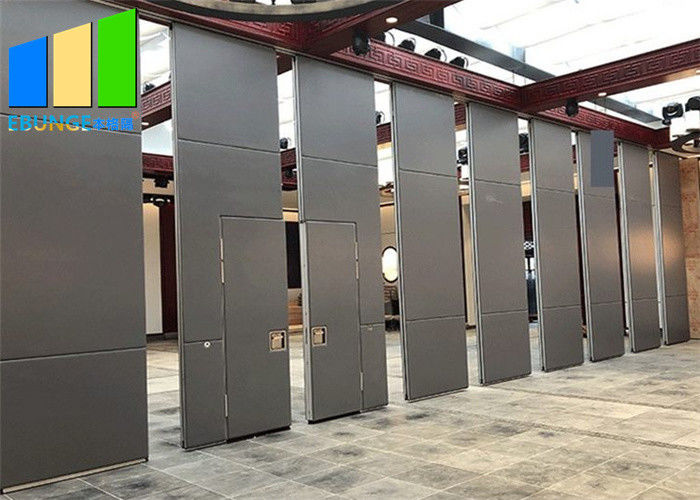

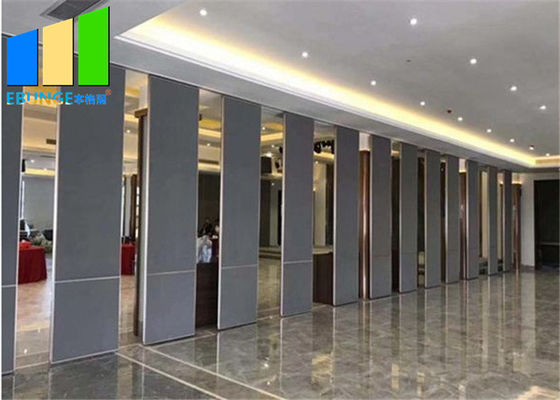

Movable Soundproof Sliding Partition Walls For Restaurant 0





Sliding Movable Partition Features



The retractable seal helps the sliding movable partition panel move easily.


The overhead mechanism reduces the need for floor rails.


Combined with beautiful and sturdy.



Sliding movable partition is affordable to everyone.


Aluminum panel edge profiles.


Provide beautiful design and texture to meet individual needs.
