Sri Lanka Hotel Sound Proof Folding And Sliding Door Partition Walls

Sri Lanka Hotel Sound Proof Folding And Sliding Door Partition Walls

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: Model 100 sliding door partition

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Sliding Door Partition Service: One Stop Service
Material: MDF + Aluminum MOQ: 1 Square Meter
Application: Hotel Partition Wall Warranty: 3 Years
High Light:

MDF Aluminum Sliding Partition Walls

,

1' 5/8" Sliding Partition Walls

Product Description

Sri Lanka Hotel Sound Proof Folding And Sliding Door Partition Walls

Sri Lanka Hotel Sound Proof Folding And Sliding Door Partition Walls





Sliding Door Partitions Features



The sliding door partitions we supply and install here can allow 2 rooms to become one large area, with a straight forward folding screen.



Where floor area is at a premium, one large meeting room can be sub-divided into 3 smaller rooms for normal use, but when a full team meeting is required, the 2 dividers can be pulled back to give room for everyone.



Easy to operate, with powered operation available if you prefer, the sliding door partitions can provide impressive sound reduction between rooms, yet open quickly to open up the space.



Sliding door partitions can be top hung or bottom rolling, to enable them to operate no matter what the structure above. With a variety of stacking options on offer, we can neatly tuck the panels away when the wall is in the open position.



A range of panel finishes allows you to be sympathetic to your surroundings, from Melamines, to Veneers, to writable wall panels.



We pride ourselves on our professional, efficient services, delivering projects on time and within budget.





Technical Information

TYPE BG65 BG85 BG100 & BG125
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 17000mm
Panel width

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

Surface material 9mm 9mm 12mm
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 22-32 dB Rw 28-40 dB Rw 40-55 dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M





Sliding Door Partition Installation



The end of the door body with wheels is facing up, and the door body is aligned with the movable opening and slowly lifted up.



The door body wheel enters the position of the movable opening, and the door body is aligned vertically with the track. The front end is gently lifted to make the wheels enter the track. When the rear wheel touches the edge of the track, gently lift up to make the rear wheel enter the track.



Reinstall the movable opening, tighten the fixing screws, and fine-tune the door with inconsistent height according to the overall height.

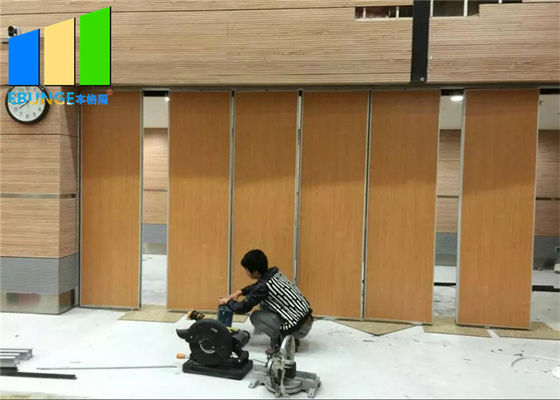

Sri Lanka Hotel Sound Proof Folding And Sliding Door Partition Walls 0

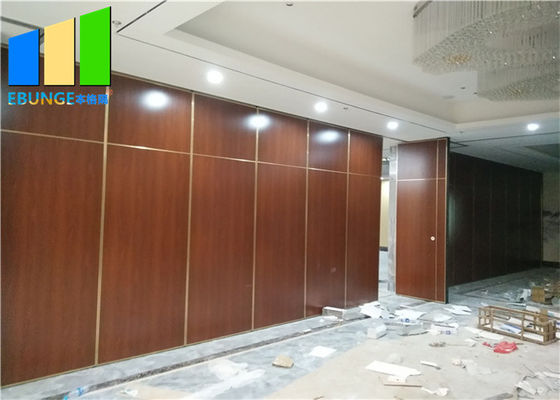

Sri Lanka Hotel Sound Proof Folding And Sliding Door Partition Walls 1

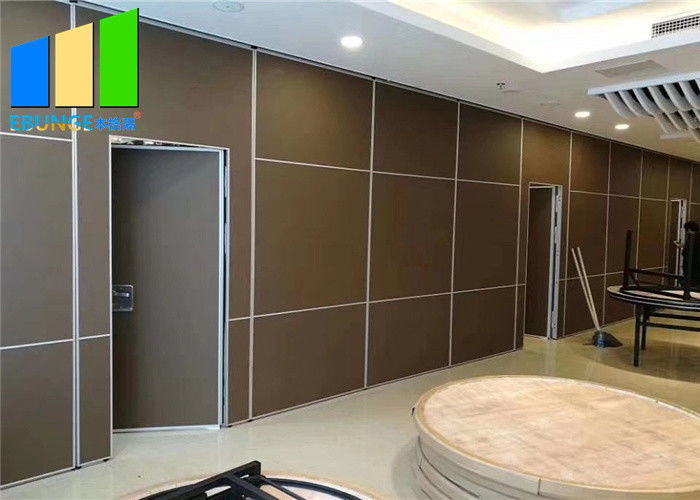

Sri Lanka Hotel Sound Proof Folding And Sliding Door Partition Walls 2
