Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: Type 65 foldable partition wall

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Acoustic Partition Walls Application: Classroom Partition Walls
Finishing: Laminate Frame: Aluminum
Color: White Weight: 25 Kg/m²
High Light:

Laminate Finishing Acoustic Partition Walls

,

25kg/m2 Acoustic Partition Walls

Product Description

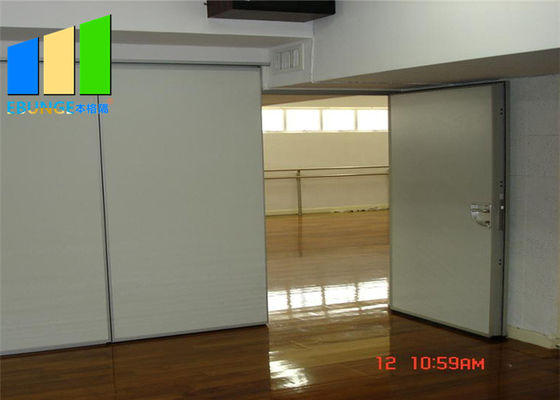

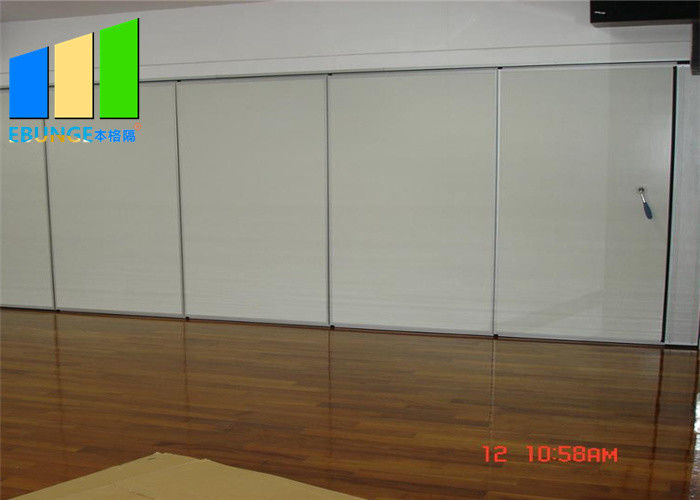

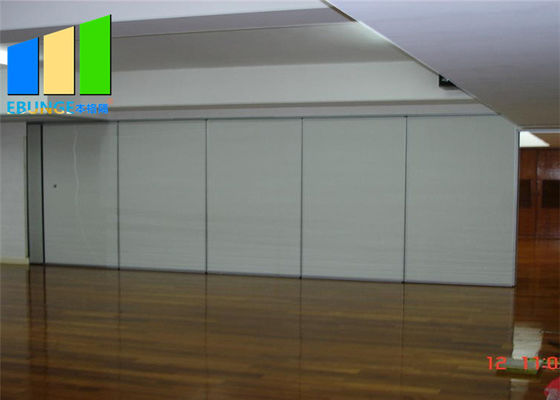

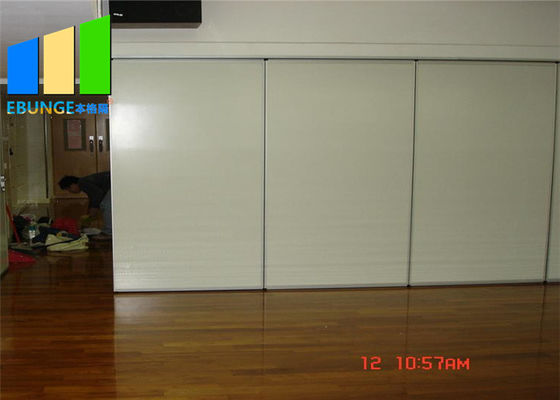

Malaysia Classroom White Laminate Folding Door Wooden Acoustic Partition Walls

Malaysia Classroom White Laminate Folding Door Wooden Acoustic Partition Walls




Wooden acoustic partition wall seal detail



Provide types of acoustical seals indicated that produce wooden acoustic partition wall panels complying with acoustical performance requirements and the following:



Manufacturer's standard PVC seals.



Seals made from materials and in profiles that minimize sound leakage.



Seals fitting tight at contact surfaces and sealing continuously between adjacent panels and between wooden acoustic partition wall perimeter and adjacent surfaces, when wooden acoustic partitionwall is extended and closed.



Each wooden acoustic partition walls panel has a spring loaded top and bottom retractable seal.



Seals are to be operated simultaneously by an easy action, maintenance-free detachable crank handled and engaged by a winding mechanism to ensure optimum contact pressure.



The retractable seal frames are constructed of aluminum with PVC seals at the contact points. Corner seals are fully interlocking.

Malaysia Classroom White Laminate Folding Door Wooden Acoustic Partition Walls 0





Technical Information





Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Foldable partition wall solution





PROBLEM POSSIBLE CAUSE PROBABLE SOLUTION
Panels Hanging out of plumb. 1. Loose or broken trolleys. 2. Broken Trolley Support Beam. 1. Tighten loose carries to return panel to plumb. 2. Replace any broken carriers or support beam.
Panels sticking or hard to move. 1. Dirt in the track. 2.less lubricate oil.3. Misaligned track joints. 3. Trolley Broken. 1. Clean track. 2.Spread lubricate oil on the track.2. Align joints. 3. Replace trolley.
Abnormal noise during movement. 1. Broken trolley 2. Misaligned track joints 1. Replace trolley 2. Align joints
Top and bottom seal inoperative 1.Cranking mechanism stripped / broken link to mechanism 2.top seal stuck by the trolley support beam

1. Straighten or replace seal. /. Replace

2.Adjust the size of the hole located on the top seal

Pass doors not latching 1. Strike plate out of adjustment. 2.door jamb over pressure compressed. 1. Readjust strike plate. 2. Reverse previous step to re position the pass door,and not compress the LCP to much pressure
Broken or worn trolleys

1. Bad track joints.

2. 2. Abusive handling at "T" or "L" intersections.

1. Realign track joints & replace trolleys.

2. Replace trolleys and retrain personnel.

Lever closure jamb not extending or operates difficult. 1. Internal mechanism stripped. 2. Limit cables or chains tangled. 3. Tension bolts too tight. 1. Replace mechanism. 2. Adjust limit chains. 3. Adjust tension bolts on mechanism.

Malaysia Classroom White Laminate Folding Door Wooden Acoustic Partition Walls 1
