Customized Leather Folding Wooden Demountable Acoustic Partition Wall For Office

Customized Leather Folding Wooden Demountable Acoustic Partition Wall For Office

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: Type 100 demountable partition walls

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Demountable Partition Wall Application: Office Partition Wall
Thickness: 100 Mm Based Board: MDF
Packing: Wooden Box Surface: Leather
High Light:

Demountable Acoustic Partition Wall

,

100mm Thickness Acoustic Partition Wall

Product Description

Customized Leather Folding Wooden Demountable Acoustic Partition Wall For Office

Customized Leather Folding Wooden Demountable Acoustic Partition Wall for Office




Demountable partition wall detail



A demountable acoustic partition wall that can be folded is composed of multiple partitions. The demountable partition walls used in the wide-fan type are the same as those used in the folding acoustic partitions. The upper part of each partition is installed on the guide rail with a set of reversible pulleys. The demountable partition walls are connected by hinges and can be folded and pushed into storage when not in use.



This kind of demountable partition is restricted by many factors, and it may not be easy to push when handled improperly. Therefore, there is a double-leaf folding type in which two partitions are connected in a row. The width of the narrow-fan folding movable partition is usually 10~30 cm, and there are soft double-folding and hard single-folding. The rigid single-folding type usually uses fiberboard, plastic board or thin steel plate as the partition, and plastic or metal as the hinge. Each partition is installed on the guide rail with a set of direction-changing pulleys to become a foldable sliding partition. The double-folded soft, thin steel sheet is often used to make a telescopic sleeve hinged frame, with pulleys on it, and mounted on a guide rail. Both sides of the hinged frame are covered with soft artificial leather or plastic cloth, which can be folded and opened like an accordion. This kind of partition is light in weight, beautiful in appearance, easy to install, can be enclosed in a curved shape, and is flexible in use. It can also line up thin steel plates and sound-absorbing materials in the interlayer to improve sound insulation. If a relatively private partition is required, this type of movable partition can be used, so that the partition can be put away or used for other purposes after the demand has passed. Adjustable space. Some people like to change the furnishings and layout from time to time, so the demountable acoustic partition is not costly.

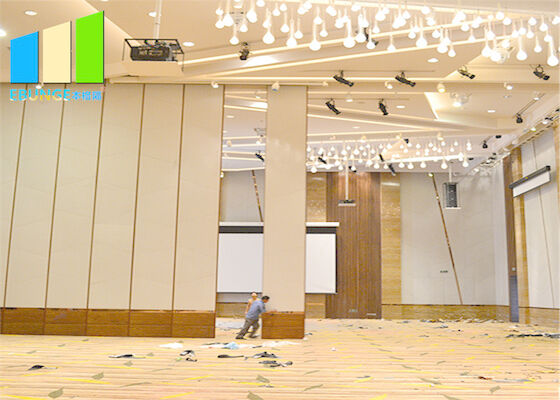

Customized Leather Folding Wooden Demountable Acoustic Partition Wall For Office 0





Technical Information


Series Model 65 Model 85 Model 100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 8000 mm
Panel width 600-1230 mm 600-1230 mm 600-1230 mm
Based board thickness 9 mm 9 mm 9 mm
Pass doors selection Single Door or Double Door
Sound insulation 20 – 32 db 28 – 36 db 32 – 50 db
Finish Material Plywood / MDF /Laminate / Melamine / Gypsum
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)





Demountable partition walls components



1. Hanging rail: EBUNGE demountable partition wall rail is extruded from aluminum alloy 6063-T6 after anodizing treatment. The aluminum alloy track after anodizing can not only make the track and track directly perfectly connected, but also make the demountable partition wall drive without noise, providing a safe, stable, corrosion-resistant and durable operating environment for the movable partition.



2. Hanging wheel: imported bearings are used for all lifting wheels of one solid partition, and the screw strength is above 8.8. The external glue of hanging wheel is made of POM material imported from American DuPont saigang, which greatly improves the use experience and durability of movable partition.



3. Aluminum alloy frame: a solid demountable partition wall keel structure is made of high-quality 6063t6 aluminum material. Compared with the wood structure, aluminum keel structure has better square and more stability. At the same time, the internal structure of each partition is more solid and environmentally friendly.



4. Upper and lower layering: in the upper and lower layering of movable partition, the innovative installation of sound insulation strips greatly improves the sealing performance with the ground and ceiling, and the sound insulation coefficient is improved in all aspects.



5. Sealant strip: a solid use of butyl rubber sealant strip has excellent wear resistance, anti-aging, sealing, and easy to burst. It ensures excellent quality of movable partition, far higher than the PVC sealant strip used by colleagues.



6. Sound insulation material: high density glass fiber cotton with content of 55kg / M ~ 2 is adopted, which not only has the advantages of light weight and combustion supporting, but also has high absorption coefficient, which greatly improves the sound insulation coefficient of movable partition.



7. Decorative substrate: the decorative substrate generally includes steel plate, glass magnesium plate and melamine board. Then fabric, leather and other materials are combined with the decorative substrate to make soft or hard package, which not only improves the beauty of the activity partition, but also is easier to cooperate with the hotel's various styles.



8. Telescopic structure: the raw materials are standard 45 steel and tension spring steel. The pressure tension spring type operation can automatically adjust the gap between the screen and the ground.



9. Handle hand cup and handle: EBUNGE selects thickened handle cup and handle with high-quality 304 stainless steel pipe material, which greatly improves the service life of the glove, and is not easy to deform and burst. Its durability and corrosion resistance are far higher than those of iron handle cup and handle used by peers.



Demountable partition wall has been widely used in Convention and Exhibition Center, conference room, hotel banquet hall, restaurant box, exhibition hall and other places. If you also want to have activity partition, please call us.
