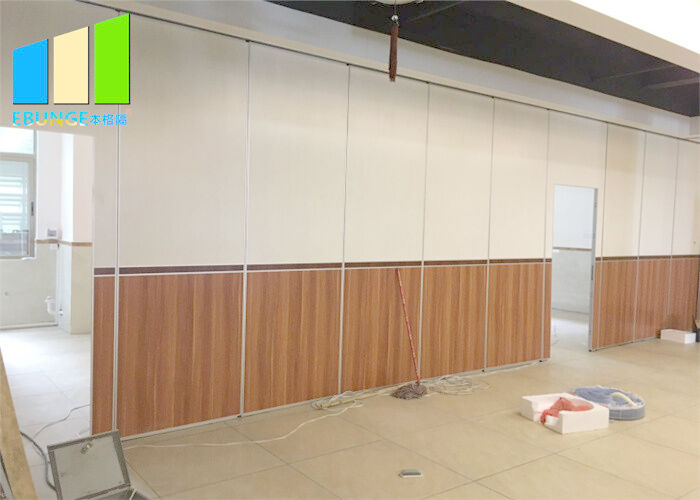

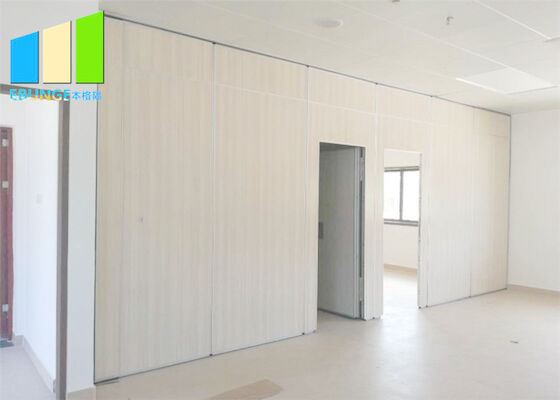

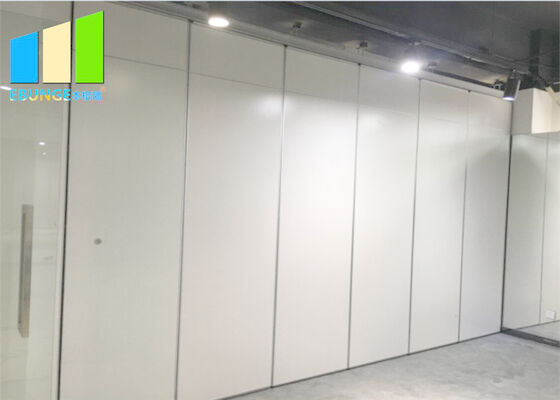

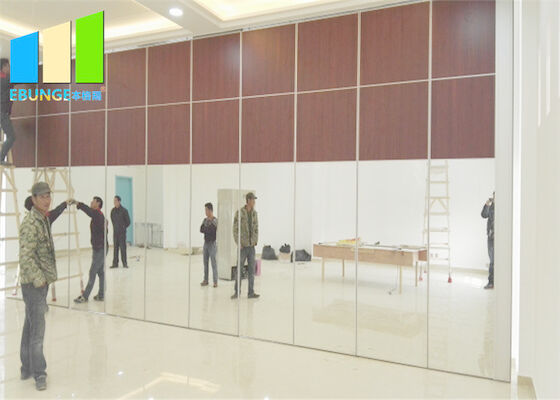

Soundproof Mobile Wall Conference Training Center Acoustic Room Divider

Soundproof Mobile Wall Conference Training Center Acoustic Room Divider

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: 100 mm acoustic room dividers

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Acoustic Room Dividers Application: Training Center Dividers
Thickness: 100 Mm Max Height: 8 Meters
MOQ: 1 M² Surface: Laminate
High Light:

Mobile Acoustic Room Divider

,

8 Meters Acoustic Room Divider

Product Description

Soundproof Mobile Wall Conference Training Center Acoustic Room Divider

Soundproof Mobile Wall Conference Training Center Acoustic Room Divider


How to operate the acoustic room dividers?



1. A typical acoustic room divider consists of bulb seal panel (BSP). basic panel(BP), an optional pass door(PD),additional basic panels(BP), and last a closure panel(LCP). Stand in the center of the panel face. Using both hands, grasp it by the edges as high as possible and gently pull it toward you. Carefully maneuver the panel out of the storage area. Move the acoustic room divider panel down the track to the required position. Once in place, push it firmly against the adjacent wall or panel to insure a tight joint. You may place your foot against the bottom of the panel to hold it in place while you extend the acoustical seals.



2. Seal Operation for Retractable Seals: Once the acoustic room divider panel is in position,insert the operating crank handle over the exposed shaft in the panel's vertical edge. While keeping the acoustic room divider panel plumb, turn the operating key clockwise approximately 180degrees. This will extend the seals. Remove the operating handle and repeat with remaining basic panels.





3.Optional Pass Door Panel-Setup

U-Shaped (single style): The pass door has two seals. One located in the same place as the basic panels (A) and the other located inside the door jamb (B). Set the (A) seal first by inserting the operating key over the seal mechanism as shown in Exp e, A. Turn the operating key until the floor seal is extended.Next open the door and turn the seal mechanism located in the jamb (B) in the same way as you did for seal (A).



4.Optional Pass Door Panel-Setup (continued)

L-Shaped Pass Door(double door). Batwing doors consist of two L-shaped panels. A L-panel has a single seal. Push the lead end of the first L-panel into place, but do not set the seal. Push the second panel (trail L-panel) into place and extend the seal (A) in the same manner as a basic panel. Turn the operating key until the floor seal is extended. Next, open the door on the lead L-panel and extend the seal located in the pass door jamb (B).



5.Setting the Final Closure Seals.

Final closure will bel Lever Closure Panel .Move the last panel into place. If you you will need to extend two seals on the last panel in the opening. The first seal is located in the trail edge of the panel. Insert the operating key over the exposed shaft in the vertical edge and turn key 180 degrees clockwise to set the top and bottom seal. (The shaft may be hidden from view by the expanding post). To extend the second seal, insert the operating key over the shaft located on the face of the panel. Turn the key clockwise until you feel resistance against the wall. This action extends the closure and completes the acoustical seal. Note: Make certain you apply sufficient pressure to compress the vinyl seal against the wall.

Soundproof Mobile Wall Conference Training Center Acoustic Room Divider 0




Technical Information


Series Model 65 Model 85 Model 100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 8000 mm
Panel width 600-1230 mm 600-1230 mm 600-1230 mm
Based board thickness 9 mm 9 mm 9 mm
Pass doors selection Single Door or Double Door
Sound insulation 20 – 32 db 28 – 36 db 32 – 50 db
Finish Material Plywood / MDF /Laminate / Melamine / Gypsum
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)




Application



Acoustic room divider is usually used where indoor space needs to be fully utilized. Hotels, convention centers, educational institutions, offices, training areas can all benefit from the flexibility of acoustic room dividers system.
