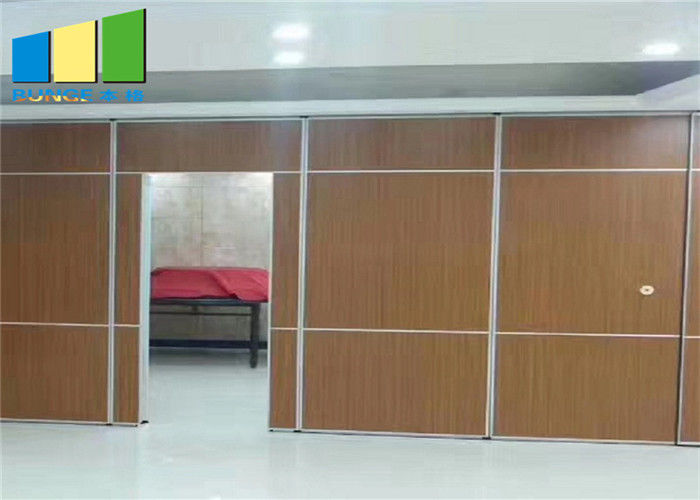

China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel

China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: 65 mm Operable Removable Partition Wall

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ, small quantity welcome
Price: $82-98 per square meter.
Packaging Details: Paper carton, outside with wooden box.
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Operable Removable Partition Wall Application: Office,conference Room,hotel Room Divider
Height: 2-4 Meters Size: Partition Walls Customized
Advantage: Sound Proofing Sample: Free
Brand Name: EBUNGE Place Of Origin:: Guangzhou
Color: Accept Customized Warranty: 3-5 Years
High Light:

2m Operable Movable Partition Wall

,

Hotel Operable Movable Partition Wall

Product Description

China Manufacturer Acoustic Manual Operable Removable Partition Wall Price for Hotel





Specification



Partitions wall markets a wide range of space division solutions including Movable Glass Walls, Operable Partitions, and Accordion
Doors. Modern fold partitions help architects, interior designers, and building owners more efficiently utilize space.


Our partitions are used in a number of different applications to deliver greater functionality and sound control, including office buildings, gymnasiums, classrooms, hotels, hospitals, retail, banks, and conference, and exhibition centers. Modern fold never
loses sight of the fact that each project is unique and demands individualized attention to design, product selection, installation, and
service.



China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 0



Details



Series
BG65
BG85
BG100
Panel suspension
Top hung only
Top hung only
Top hung only
Track system
Single or twin point
Single or twin point
Single or twin point
Panel thickness
65mm
80mm / 85mm
100mm
Panel height
Up to 4000mm
Up to 6000mm
Up to 18000mm
Max height
4000mm
6000mm
18000mm
Panel width
600-1230mm
600-1230mm
600-1230mm
Frame construction
Aluminum frame
Aluminum frame
Aluminum frame
Face material
9mm
9mm / 12mm
12mm
Fire safety
Optional Class I or O
Optional Class I or O
Optional Class I or O
Vertical profiles
Aluminum anodised with sealing profiles
Aluminum anodised with sealing profiles
Aluminum anodised with sealing profiles
Retractable seals
Aluminum black with
double rubber seals
Aluminum black with double rubber seals
Aluminum black with double rubber seals
Operation of seals
Manual, with supplied
operating handle
Manual, with supplied operating handle
Manual, with supplied operating handle
Locking
Optional lock to pass doors
Optional lock to pass doors
Optional lock to pass doors
Pass doors
Single open in panel or
double open in two panel
Single open in panel or double open in two panel
Single open in panel or double open in two panel
Sound insulation
20-32dB Rw
28-36dB Rw
32-50dB Rw
Weight
Approx 22-35kg/sq M
Approx 25-40kg/sq M
Approx30-48kg/sq M
Finish Material
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting,
etc. (Customized)



China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 1



Finished Product :



Congratulation on the conference hall movable partition walls project in Myanmar.

In November 2019, we finished a conference room soundproofing folding partition project in Myanmar.

Project size: 11227*3880 mm(2 sets), 18000*3880 mm. Totally for 3 walls, 157 square meters.

Color Chart: The top and the bottom part are CS-3031. The middle part is CS-3008.

This project is a little different, the client chose 2 different colors, which informed a beautiful scene. They wanted the
environment more colorful. The surface is also melamine, the biggest feature is that there are more than 60 colors to choose from and very easy to maintain.

Thanks for the trust of the client. At the end of November, the client also bought some foldable tables and conference chairs from us. And they will be shipped together with the container.

Everything goes well and the client felt satisfied with our conference room soundproofing folding partition system and happy to cooperate with BUNGE Company.



China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 2



China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 3



China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 4

China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 5



Advantage



1. The conference room soundproofing folding partition can help you divide a big space into 2 or more smaller rooms. When you do not use them, they can be parked in the parking zone conveniently and quickly.

2. All of the conference room soundproofing folding partition can be customized, such as the size, the colors and the surfaces.

3. The conference room soundproofing folding partition is a hanging system, which have the ceiling rails, but have no floor rails. So it will not damage the floor or carpet at the project site.

4. The operation is very easy, 1 person can finish the whole operation.

5. Different surfaces also available. Such as the MDF, Plywood, Melamine, Veneer, Fabric and Leather surface. More than 60 kinds of colors to choose from.

6. Free design and free samples also available. And we provide at least 3 years warranty for every client.



China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 6

Finished And Accessories



Track: The tracks are made from extruded 6063 - T5 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. The aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.


Panels: The Panels will be made from 12 mm MDF boards and shall be 100 mm thick and 1230 mm maximum width, made to the appropriate acoustic rating and structural backing, and mounted in full perimeter extruded aluminum frames with interlocking corner construction. The panel faces shall be finished with selected material.

Panel Surface Finish:The panel surface will be as per the clients requirement finished either in the Sliwal factory – China or by
others. The normal finish such as: laminate, veneer, melamine, fabric etc.

Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall
system. Retractable seal drop will be 23 mm.



China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 7China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 8

Package



If by LCL, the conference room soundproofing folding partition will be packed by paper carton, outside with wooden box to protect the damage.


If by FCL, the conference room soundproofing folding partition will be packed by paper carton, then we will put them in the container one by one.

China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 9

Bunge Factory

Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m². And we have around 10 years experience in it. There is an ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system, and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines, and many other countries.

As a professional manufacturer, we not only produce, we also design, deliver, and have the after-sales service for clients. If the client needs an installation service, we also can send our technicians to supervise the installation. In addition, we also can supply free design to every client and we will reply in 12 hours if the clients have any questions.

China Manufacturer Acoustic Manual Operable Removable Partition Wall Price For Hotel 10

FAQ:

1. Are you trading company or manufacturer?

We are the conference room soundproofing folding partition manufacturer, we have our own factory and showroom in Liwan, Guangzhou. When you come to Guangzhou, very welcome to visit us.

2. Could you produce the conference room soundproofing folding partition based on our requirements?

Yes of course, actually the conference room soundproofing folding partition is a whole customized product. We can produce them based on the different demands of different clients, including the size, the colors and the surfaces.

3. What you should do on site?

A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 180 mm.

4. Is it difficult in installing the conference room soundproofing folding partition?

No, it is easy. Most of client can install them at site. We will provide the installation manual or video to teach you how to install. And we can also dispatch the technician to supervising the installation as request.

5. What is lead time?

The production time is around 7-15 days. And the shipping time is around 15 - 40 days based on the different countries.

6. What is Procurement procedure?

Firstly, please send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall).

Secondly, we quote and offer you the conference room soundproofing folding partition layout drawings for your confirmation.

Thirdly, you make the payment and we start production, pack and deliver them to your site.

7. What is finishing face?

The bottom panel is MDF or plywood, which is a bare finish. You can do decoration on-site, such as wallpaper and painting.

We can also provide the conference room soundproofing folding partition with finished face, such as melamine, laminate, HPL, fabric and Leather.

8. Do you provide warranty for the conference room soundproofing folding partition?

Yes, we provide at least 3 years warranty. If there is any damage for the panels, we will provide you a new one.
