Malaysia Acoustic Partition Wall Material Aluminum Frame Soundproof Partitions

Malaysia Acoustic Partition Wall Material Aluminum Frame Soundproof Partitions

Product Details:

Place of Origin: Guangzhou,China
Brand Name: EBUNGE
Model Number: Series 65 mm folding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 60-119 USD per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Folding Partition Walls Material: Aluminium And Mdf Board
Height: Less Then 4 M Width: 500-1200 Mm
Thickness: 65mm Aluminum Frame Function: Sliding Room Divider
Finish: Melamine, Fabric, Leather, MDF Bare Finish Warranty: Sliding Partition Walls Warranty 3-5 Years
High Light:

Aluminum Frame Soundproof Partitions

,

1200mm Acoustic Partition Wall

Product Description

Malaysia acoustic partition wall material aluminum frame soundproof partitions

Description:

Our acoustic partition wall accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections. Sound proof partition walls are very popular now overall the world.
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.

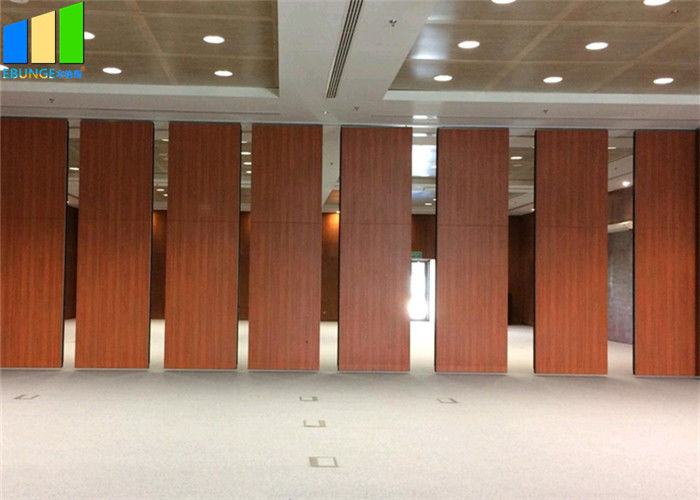

Malaysia Acoustic Partition Wall Material Aluminum Frame Soundproof Partitions 0

Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

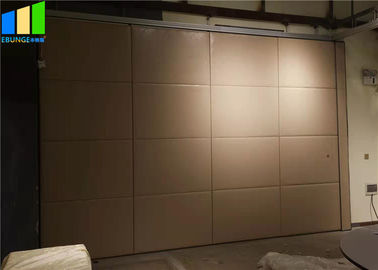

Malaysia Acoustic Partition Wall Material Aluminum Frame Soundproof Partitions 1

Movable partition wall features

Environmental protection and light material.
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.



Usage:

(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.

(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.

(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.

(4)Fix on keel:Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
