Home Movable Partition Walls Aluminum Room Divider Screen For Villa
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-119 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Material: | Aluminium And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm Aluminum Frame | Function: | Sliding Room Divider |
| Finish: | Melamine, Fabric, Leather, MDF Bare Finish | Warranty: | Sliding Partition Walls Warranty 3-5 Years |
| High Light: | Villa Movable Partition Walls,Sliding Aluminum Room Divider Screen |
||
Product Description

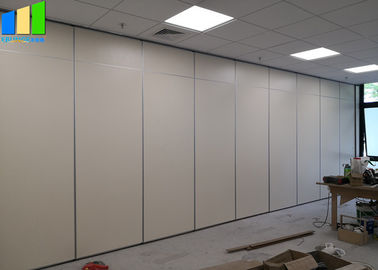

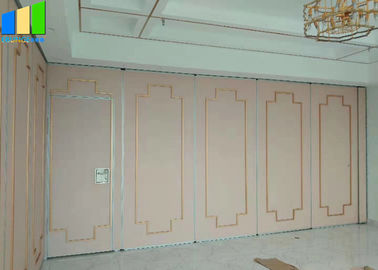

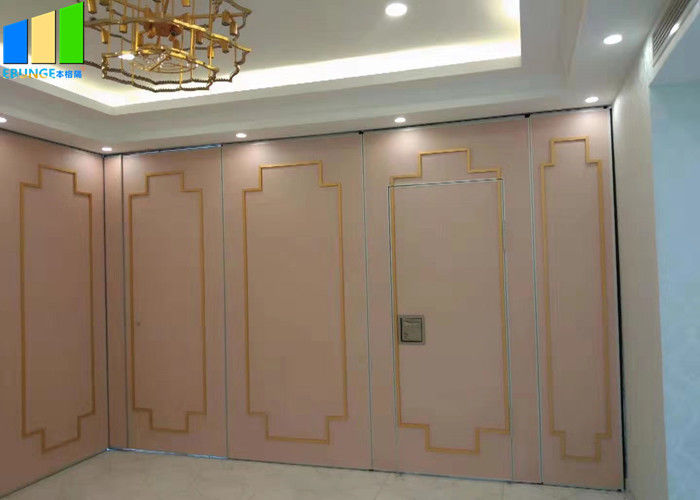

Home movable partition walls aluminum room divider screen for villa
Description:
Our sliding partitions system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Model 65mm movable wall are made of aluminum alloy frames and it’s thickness is 65mm. The aluminum is 6063-T6. Oxidation, electrophoresis and other processing methods can be adopted according to customers.
Model 65mm mobile partition belongs to the light partition, its operation easy and flexible. Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation.Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place.Sliding stable and smooth making dimensional change shows diversity.
Model 85mm mobile partition belongs to the best cost-effective partition, moderate weight make the operation convenient and flexible.Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation.Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place.Sliding stable and smooth making dimensional change shows diversity.
Model 100mm movable partition is high sound insulation,more heavy, sliding and operation stable. Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation.Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place.Sliding stable and smooth making dimensional change shows diversity. It’s the best choice of sound insulation requirements.
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
