Commercial Collapsible Soundproof Accordion Movable Partitions Wall For Conference Hall
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Material: | Wooden |
|---|---|---|---|
| Warranty: | 3-5 Years | Finish: | Melamine |
| Advantage: | Sliding Movable | Sample: | Free |
| High Light: | Accordion Movable Partitions Wall,Collapsible Soundproof Partition Wall |
||
Product Description

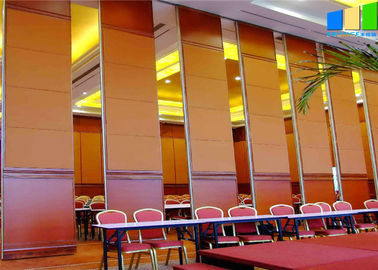

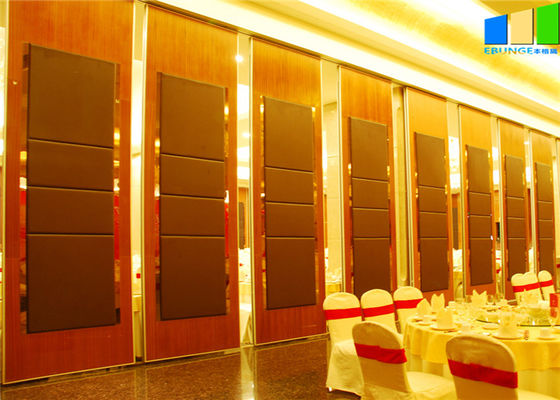

Commercial Callapsible Soundproof Accordion Movable Partitions Wall For Conference Hall
Movable Wall Details:
BUNGE 65 series of Partition Wall System can be divided into one-chip 360° omnidirectional turning type and dual chip unidirectional type.
Using BG65 and BG85 track and wheel on the top can divide spaces indifferent ways and omnibearingly.
UsING No. 6063T6 aluminium alloy as the frame of the partition panel, it is the highest grade material in the peer companies.

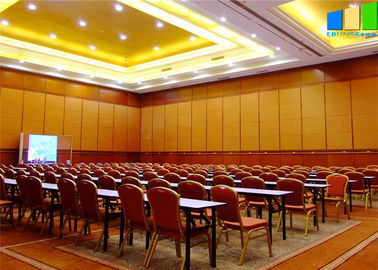

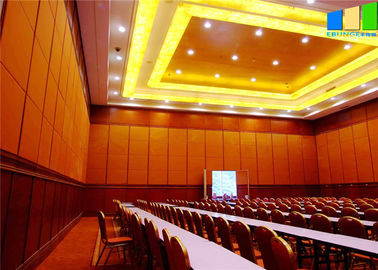

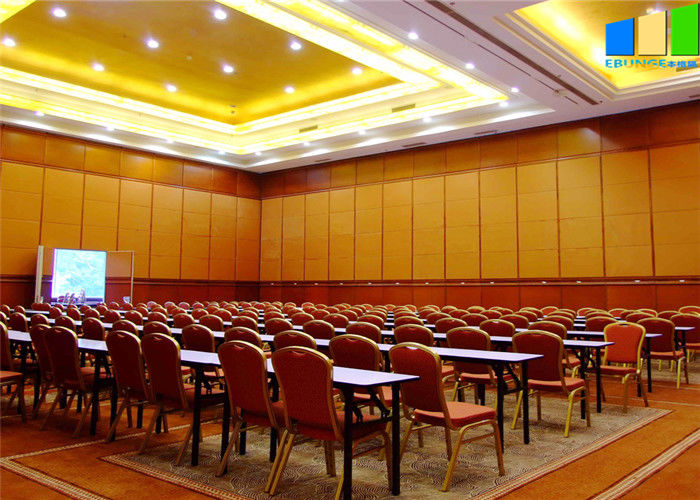

Widely used in restaurant. hotel, exhibition hall, multi-functional conference hall and so on.
Movable Partition Wall Characteristics:
1. Overhead Type track: No need to fix floor track, will not destroy the overall decoration effect;
2. Stable and safe: Each partition panel can stand independently, not easy to swing;
3. Soundproofing and Environmental: Effective sound insulation, max acoustic coefficient can be more than 50 dB;
4. Heat Insulation and Energy Save: Good heat-insulating property, can divide large space into small one according to the attendance rate to reduce the air conditioning power consumption;
5. Effective Flame Retardant: Using effective fireproof materials to make better fireproof performance;
6. Elegant Appearance: The surface decorating can be the same ad the indoor decoration;
7. Flexible Using: Can collect and use the partition panels flexibly, one person can finish;
8. Convenient Collecting: Can collect the partition panels in the cabinet, will not affect the overall view.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 8000 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 40 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
FAQ
What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 180mm.
How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
What is lead time?
The lead time is 7 days to 10 days.
How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
How do the goods packing?
Partition board paper packaging, and finally packed in wooden carton.
The movable wall panel and track, fittings will be packed separately.
What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
