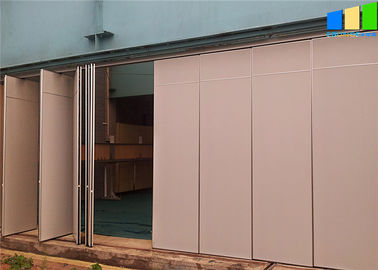

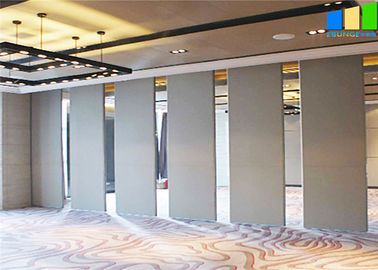

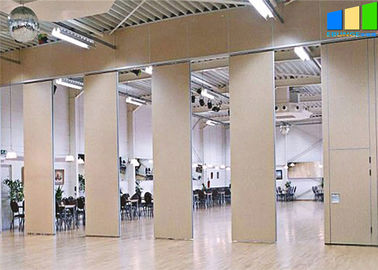

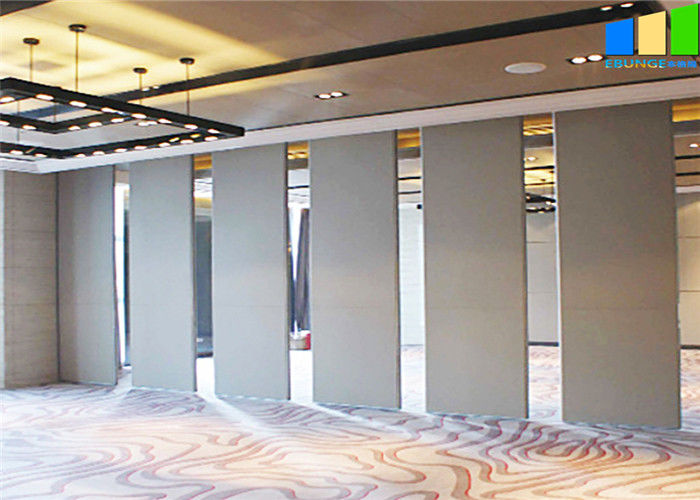

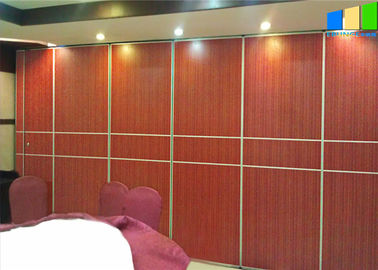

Sound Proof Office Meeting Room Panels 65mm Thickness Wooden Material Sliding Partition Wall
Product Details:
| Place of Origin: | China (mainland) |
| Brand Name: | BUNGE |
| Model Number: | 65 series |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | USD 80-90 Square meters |
| Packaging Details: | Partition board paper packaging, and finally packed in wooden carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 Square meters per month |
|
Detail Information |
|||
| Product Name: | Partitions Wall | Material: | Aluminum Frame |
|---|---|---|---|
| Color: | Customized | Style: | Morden |
| Function: | Divide Space | Thickness: | 65 Mm |
| Height: | Max 6000mm | Warranty: | 3-5years |
| Usage: | Conference Room | Finish: | Melamine |
| High Light: | 65mm Sliding Partition Wall,Meeting Room Wooden Partition Wall |
||
Product Description
high quality office room panels 65 mm thickness Wooden material sliding partition wall
Main functions and features
1: Moving wall surface without track, just install track on the ceiling (or floor).
2: After the moving wall is stable, it is reliable and not easy to swing, stable and safe.
3: Mobile wall sound insulation effect is good, the maximum sound insulation coefficient can reach 55db.
4: Excellent insulation performance of mobile wall, according to different seating rate, the large space is divided into small space, in order to reduce the power consumption of air conditioning.
5: Mobile wall beautiful and generous, arbitrary surface decoration, and indoor unified decorative effect.
| Modernized Soundproof Movable partition | |
| 1.Hanging on ceiling | The floor without a track, just put the rail mounted on the ceiling |
| 2.Excellent Quality | Each pieces of partition can turn around 360 degree. |
| 3.Stable and secure | After partition is stable and reliable, and is not easy to swing |
| 4.Energy efficient | The large space divided into a small space, in order to reduce air conditioning power consumption; |
| 5.Heatproof&fireproof | Good heat insulation performance, Adopt effective fire prevention materials |
| 6.Elegant appearance | Surface any adornment, can unite with indoor adornment effect |
| 7.Easy to collect | Can be hidden in the special coffer, does not affect the overall appearance |
| 8.Various applications | Hotels, exhibition halls, restaurants, multi-functional rooms etc. |
Telescopic seal system
The extension range under the partition wall is 20-25mm to ensure that the partition wall can be pushed and pulled without obstacles. When partition wall is pushed pull when proper position, need to rotate make a hand 180 degrees make fluctuation and telescopic mechanism is sealed with smallpox and ground respectively, in order to enhance the sound insulation effect of the product. After pushing and pulling of the last screen to proper position, because need is sealed fluctuation is pressed, make the telescopic position that has 150mm between last screen and wall, need is in at this moment telescopic board face rotates make a hand to make between screen and wall complete seal.
Pass door system
Automatic sealing door in door system, movable screen automatic sealing system through special transmission mechanism, equipped with automatic sealing device, open and close the door automatically pop up and put away. No manual operation is required to provide a more comprehensive sound insulation effect for your space.
Overall Structure
The operable wall series is the highest specification range of fully operable ,individual – panel partition system .Acoustic insulation of up to 55 db noise reduction is achieved with a combination of operable top and bottom seals,high performance multiple infills and a panelassembly design that allows an acoustic break between the frame and outer layer ,The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in four thiknesses ,65mm.85mm,100mm,125mm,depending on acoustic rating (from 32db – 55db )
Finish
We can supply any surface material according to customer's requirement, including melamine board, decorative panel, MDF (density board) plywood, wallpaper, fabric, leather, fireproof board and decorative paint, etc
Application
All products are suitable for hotel, conference room, multi-function hall, exhibition hall, library, museum, culture square, gymnasium, training institution, office, school, KTV, hospital, shopping market, etc
