Demountable Movable Folding Partition Walls Flexible Room Divider For Office
Product Details:
| Place of Origin: | China(mainland) |
| Brand Name: | EBUNGE |
| Model Number: | 65 SERIES Partitions wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | USD 80-90 Square meters |
| Packaging Details: | Partition board paper packaging, and finally packed in wooden carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 Square meters per month |
|
Detail Information |
|||
| Produce Name: | Folding Partition Wall | Finish: | Melamine ,fabric |
|---|---|---|---|
| Thickness: | 65 Mm | Application: | Office And School,banquet Hall And Hotel |
| Advantage: | Soundproof,Sliding ,movable | Color: | Customized |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description

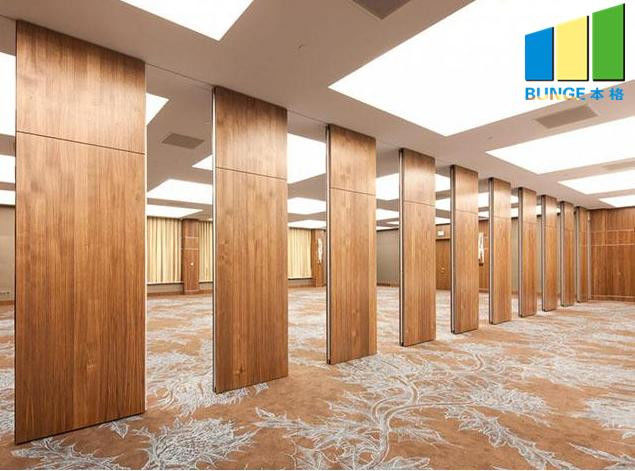

Demountable Movable Folding Partition Wall Flexible Room Divider For Office
Bunge Partition Wall
To be general, BUNGE Factory has 10+ years experience in the line of sliding partition walls. The sliding partition walls we produced can divide the space speedy and conveniently. Due to their flexibility and cost effectiveness, now more and more clients need them to divide a large room. Also the sliding partition walls are widely used in office buildings, meeting room, hotel, banquet hall, conference and function halls, church, classroom and so on. Would you like to get a free design? Welcome to contact us at any time.
Components of Folding Partition Walls
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the movable partition walls with wheels.
Wheels/Rollers: It is the carrier for the movable partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
Technical Details
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 16000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Passdoors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 40-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Case show
Banquet Hall High Sound Proof Movable Partitions Project in Uganda
Thanks for the trust from a nice client,who is from Uganda.
Ultra-high System Movable Walls Project in Lebanon
The ultra-high system movable walls we produced have a leading standard level at home and abroad, adopting super-strong rails, imported hanging wheels, special-made barges and automatic guiding systems, with a height of up to 18m and a sound insulation coefficient of up to 55db.
Conglatulations for finishing a banquet hall partitions project in Sri Lanka
This is a big and famous banquet hall in Sri Lanka.It is about 5800 square meters area,2 floors.
Sliding Partition Walls Tracks and Wheels Project in Colombia
Thanks for the appreciation and trust from our Colombian Client.
