Operable Movable Acoustic Partition Wall Flexible Room Divider For Office Meeting

Operable Movable Acoustic Partition Wall Flexible Room Divider For Office Meeting

Product Details:

Place of Origin: China
Brand Name: Bunge
Model Number: 65mm movable wall

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ
Price: USD 75-95/ Square Meter
Packaging Details: Carton package , Wooden Box
Delivery Time: 10 working days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5,000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Product Name: Acoustic Partition Wall Material: Wooden
Soundproof: 25-55 Db Color: Customized
Style: Customized Thickness: 65 Mm
High Light:

acoustic operable partitions

,

movable acoustic partition walls

Product Description

Operable Movable Acoustic Partition Wall Flexible Room Divider For Office Meeting



BUNGE Movable Partition Wall Description:

The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.

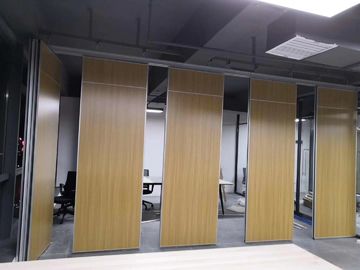

Operable Movable Acoustic Partition Wall Flexible Room Divider For Office Meeting 0



Series BG 65 BG 85 BG100
Panel supension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 8000 mm
Panel width 600-1230 mm 600-1230 mm 600-1230 mm
Face material 9 mm 9 mm 12 mm
Pass doors Single Door or Double Door
Sound insulation 20 – 32 db 28 – 36 db 40 – 50 db
Finish Material Plywood / MDF /Laminate / Melamine / Gypsum
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)

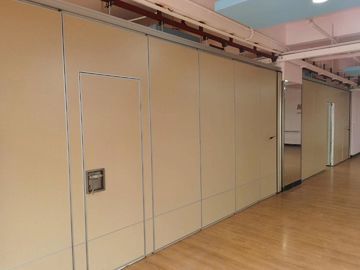

Operable Movable Acoustic Partition Wall Flexible Room Divider For Office Meeting 1



Operation:

Movable Partitions is in top supported system without floor track, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier.



Track: The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.





Aluminum Trim: The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used.



Panels:

The Panels will be made from 9mm and 12 mm MDF boards and shall be 65mm 85mm and 100 mm thicknes, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel surface ca be customized.



About us

Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it.

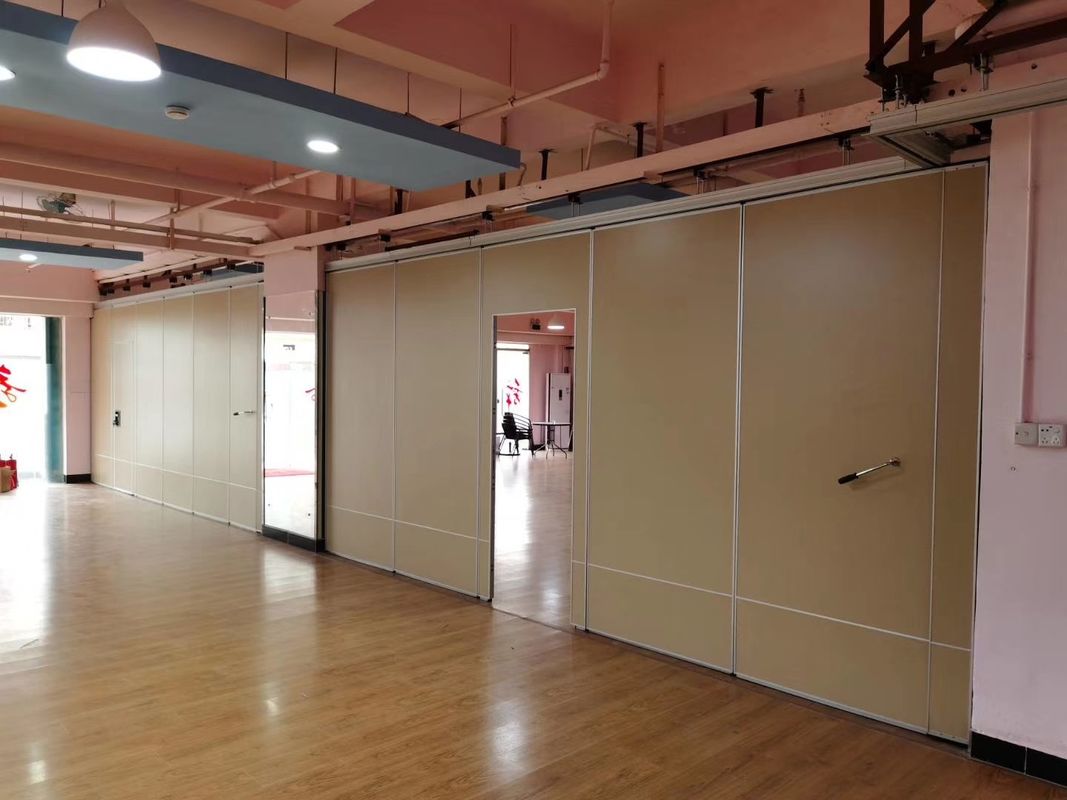

Operable Movable Acoustic Partition Wall Flexible Room Divider For Office Meeting 2



As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply Free design to every client and we will reply in 12 hours if the clients have any questions.

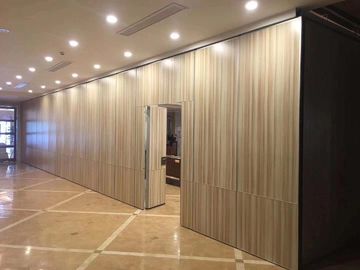

Operable Movable Acoustic Partition Wall Flexible Room Divider For Office Meeting 3
