Flexible Movable Hotel Cubicle Acoustic Partition Wall Single Door Or Double Door
Product Details:
| Place of Origin: | China |
| Brand Name: | Ebunge |
| Model Number: | 65 Series Partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ |
|---|---|
| Price: | USD 80-90 Square meters |
| Packaging Details: | 5000 Square meters per month |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Acoustic Hall Partition Wall | Color: | Multi |
|---|---|---|---|
| Material: | Alumimun Profile | Service: | OEM/ODM |
| Thickness: | 65mm | ||
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description
Acoustic partition wall details

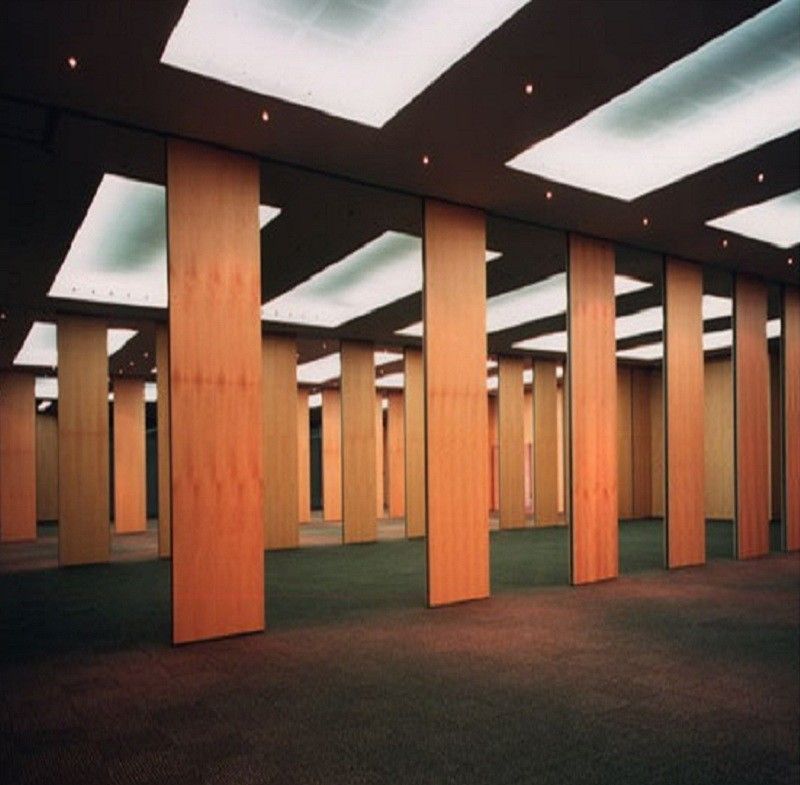

The movable partition wall is made up of a plurality of wall panels. After the wall panels are manufactured from the factory to the finished product, they are assembled on the construction site. Each partition wall is equipped with a quick telescopic and sealing system. Partition wall panels can be quickly and effectively combined into a wall body, and it is safe and stable, and does not have left and right swings; the sound insulation effect is good, and the maximum sound insulation coefficient can be reduced to 55db.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 8000 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 22 – 32 db | 28 – 38 db | 40 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) |
|||
BUNGE mobile partition models are available in 65, 85, 100 and ultra-high models.
The mobile partition series is made of the most environmentally friendly materials, abrasion resistant, corrosion resistant, acid and alkali resistant.
The suspension wheels are made of steel rings, each consisting of two wheels for reinforcing the steel ring. When it is running on the track, the two wheels rotate in opposite directions (rather than sliding) to ensure smooth, smooth and noise-free operation.
Each baffle is equipped with one or two cranes, equipped with precision bearings, which can be rotated smoothly at 90 degrees, 180 degrees, 360 degrees and other specific angles. The soundproofing materials of 65, 85, 100 and ultra-high series mobile partition products adopt rock wool, and the noise reduction coefficient reaches 55db.
The characteristics of the BUNGE mobile partition are:
1. No rail suspension: no rails, only the rails are installed on the ceiling;
2, stability and safety: stable and reliable after partitioning, not easy to bend;
3, sound insulation and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 55db;
4, heat insulation: heat insulation; according to different seating rates, large space is divided into small spaces, reducing air conditioning energy consumption.
