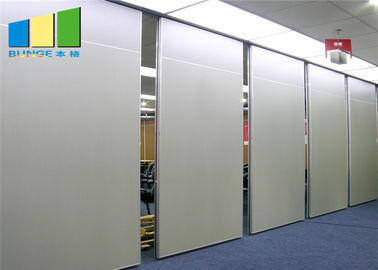

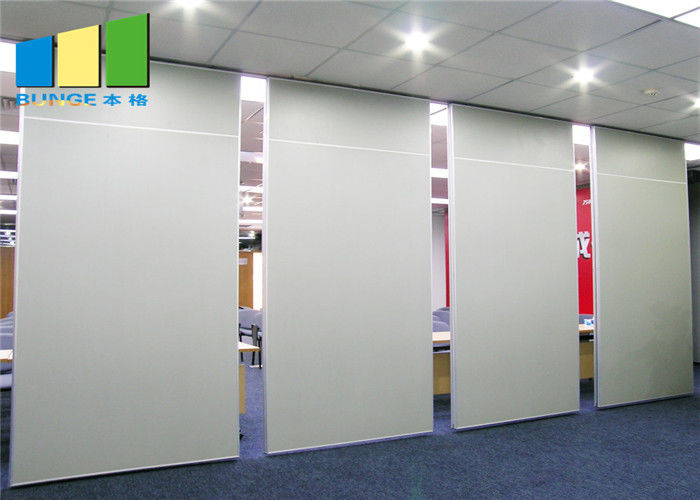

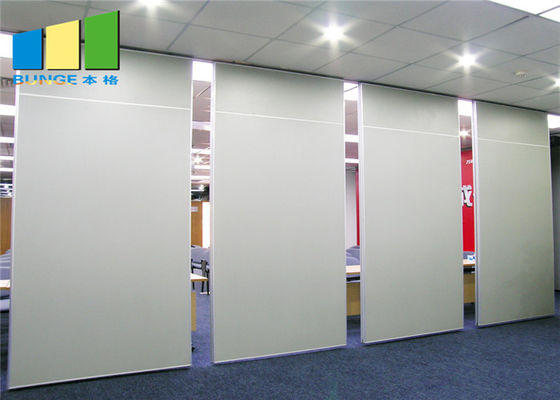

65mm Folding Sliding Soundproof Partition Walls Acoustic Conference Room Dividers
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| General Use: | Soundproof Partition Walls Are Used For Interior Decoration | Material: | MDF + Aluminum |
|---|---|---|---|
| Color: | Customized, Silver, Custom Color, Blue, Golden | Size: | Customized, Partition Wall Customized, 1220*2440mm, H2400xW900mm, 864Wx1600H |
| Thickness: | 65 Mm(2 9/16 Inch) | Advantage: | Free Of Floor Track, Professional Design Team&factory Manufacture&fashionable Outlook, Soundproof, Competitive, Fireproof |
| Application: | Meeting Room Partitions | Style: | Sliding |
| Product Name: | Sliding Partition Walls | Feature: | Sound Proofing |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description
Office Separation Panels Indoor Movable Partition Wall For Sri Lanka
Product description:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodized with sealing profiles | Aluminum anodized with sealing profiles | Aluminum anodized with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in a panel or double open in two panel | Single open in a panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized) | ||

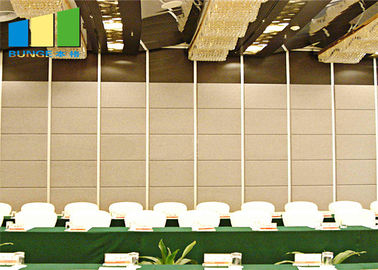

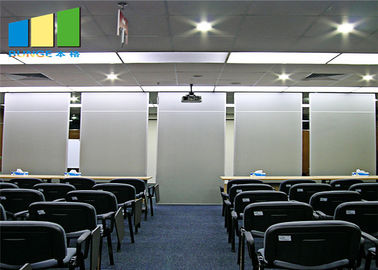

Nowadays, the modern trend in buildings needs more flexibility and convenience to use the space of their room. Most of the building designers like to prepare open-plan space, soundproof effect, and easy to operate. The solution of the designers need is the movable partition. Movable partitions are widely used in the hotel banquet hall, meeting room, exhibition hall, conference room, International convention center, KTV, upscale restaurants, office building, school, hospitals, and others.
Stacking areas can be incorporated to enable panels to be stored away when space needs to be opened. There are no floor tracks or guides ensuring a clear threshold, free of dirt traps and obstructions.
Doors can be incorporated at virtually any point along with the partition and can be either single or double-acting.
The unique locking mechanism ensures that there is minimal hardware used, ensuring a smooth panel appearance.
The system is fully secured by either mechanically operated locking mechanisms.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a real manufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.
4.Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5.Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6.Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
