Studio Room Dividers Wooden Accordion Wall Operable Folding Walls
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EBUNGE |
| Model Number: | 85 MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton paper packing ,MDF Batten cover all over the corner |
| Delivery Time: | 7-28 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Material: | MDF With Melamine |
|---|---|---|---|
| Color: | Customized | Service: | ODM & OEM |
| Finish: | Melamine;fabric;leather | Package: | Standard Wooden Case |
| Frame Material: | Aluminum Alloy Profile | Max Height: | 6000 MM |
| Thickness: | 85 MM | Acoustic Rate: | 25 - 36 Db |
| Transport: | Sea Transportation | Style: | Simple & Modern |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description

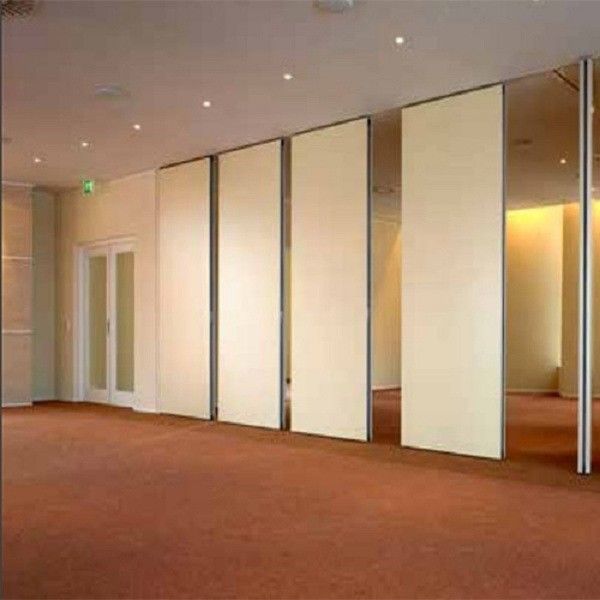

Soundproof Studio Room Dividers Wooden Accordion Wall Operable Walls Folding walls with various colors
Product description:
| Description of the system | |
| Item | Folding partition wall |
| Applicable height | Suitable for below 6 meters |
| STC(dB) | 25-36 db |
| Description of the partition wall | |
| Thickness(mm) | 85 mm,customize available |
| Width(min/max)mm | 500-1230 |
| Height(min/max)mm | 2000-6000 |
| Suface Material | MDF, Melamine board, Hard fabric, Soft fabric,PU etc. |
| Main Material | 6063-T6 |
| Net Wight(Kgs/m2) | 28-30 |
1. Soundproofing.
Folding wall partition is a sealing system, there are some specific sections(“M”&“W”sections) between the partition walls panels. The pressure seals are extended and retracted by a single 180°turn of a removable operating handle. Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals. So there is no gap between the panels. In addition, inside is full of sound proof cottons. So it can achieve an excellent sound proofing performance.
2. Easy operation.
The folding wall partition is movable and sliding. When you use them, they can help you divide a big space into 2 or more smaller rooms. And when you do not use them, they can be park to the parking zone. Even one person can finish the whole operation.
3. Application.
Nowadays the folding wall partitions are more and more popular for the clients. They are widely used in hotel banquet hall, office conference hall, meeting room, classroom, function hall, ballroom, gym, exhibition hall and many other public places.
4. Operation.
When moving a wall panel, there is a 20-25mm gap between the top of the panel and the underside of the head track and there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals. The pressure seals are extended and retracted by a single 180° turn of a removable operating handle.
Final closure of the wall is achwared by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
5. Installation.
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.
4.Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5.Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6.Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
