Mobile Walls Partition Acoustic Movable Wall Movable Panel Sliding Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EBUNGE |
| Model Number: | 65 MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton paper packing ,MDF Batten cover all over the corner |
| Delivery Time: | 7-28 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Partition Walls | Material: | MDF With Melamine |
|---|---|---|---|
| Color: | Customized | Service: | ODM & OEM |
| Finish: | Melamine;fabric;leather | Package: | Standard Wooden Case |
| Frame Material: | Aluminum Alloy Profile | Max Height: | 4000 MM |
| Thickness: | 65 MM | Transport: | Sea Transportation |
| Base Board: | 9 MM | ||
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description
Mobile Walls Partition Acoustic Movable Wall Movable Panel Sliding Wall
Product description:

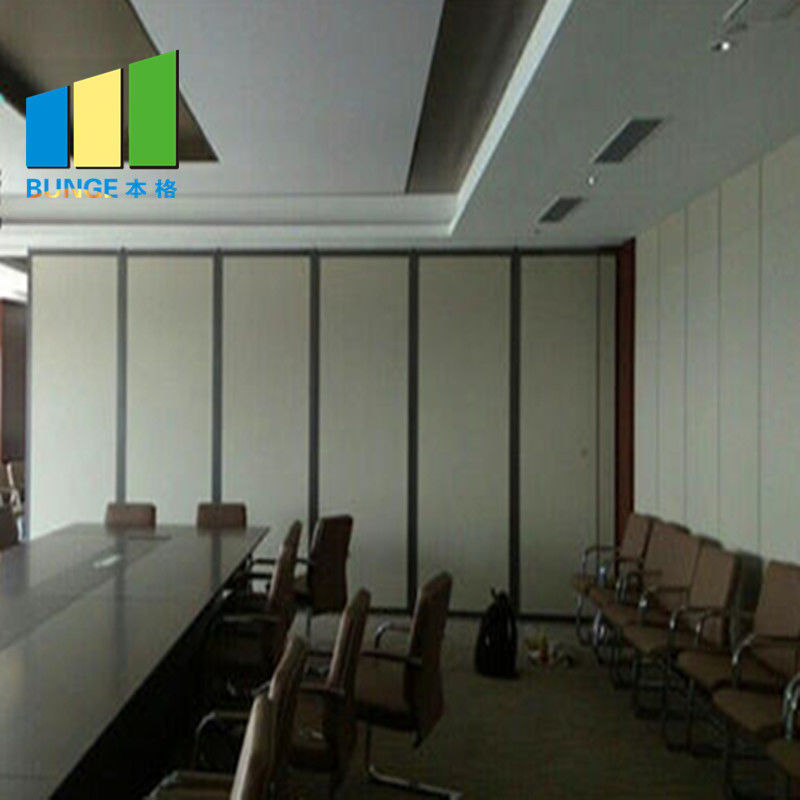

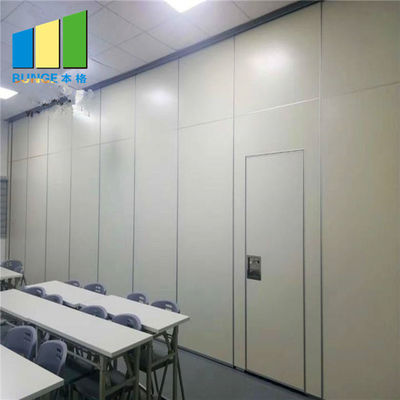

The sliding partition is set up by a range of individual panels, which are movable. You can move the panels along the ceiling track to the places your like. When the panels are set out as a wall, it can help you divide a large space into 2 or more small rooms.
Sliding partition walls are quick to operate and are available in a range of acoustic ratings from 30db to 49db. What's more, we apply hanging system in our sliding partition wall. There are no floor tracks or guides which ensures a clear threhold, free of dirt traps and obstruction.
Bunge has devoted into this industry more than 10 years and we have rich experience in design, production and installation of sliding partition.
| Technical Parameter for Partition Panel | Panel Width | 500~1230mm |
| Panel height | 2000~4000mm | |
| Sound proof | 32~38db | |
| Operation | Manual | |
| Frame | Aluminum | |
| Vertical profile | Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside | |
| Finish options | Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish | |
| Base options | Plywood, Gypsum, steel, MDF | |
| Max width | Unlimited | |
| Panel weight | 25-40kg/sq | |
| Pass door selection | door | Single or double door |
| Seals | Top | Manual |
| bottom | Manual |
Operation:
When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminum overhead ceiling track system (no need for floor guide).
Telescopic and panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
Packing:
Carton paper packaging, MDF batten cover all around corner.
The sliding wall panel and track, fittings will be packed separately.
Sea transport is a common mode of transportation. In an emergency, can be air freight.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.
4.Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5.Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6.Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
Very welcome to visit our Web and contact us!
Send us a question below to get a movable wall catolog and special discounts!
