500mm Width Folding Partition Walls Moving Hotel Partition Door Foldable Wall Divider In Philippines
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | 60-119 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | T/T |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm | Function: | Space Dividing,sound Proof |
| Style: | Modern Style | Warranty: | 3-5 Years |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description

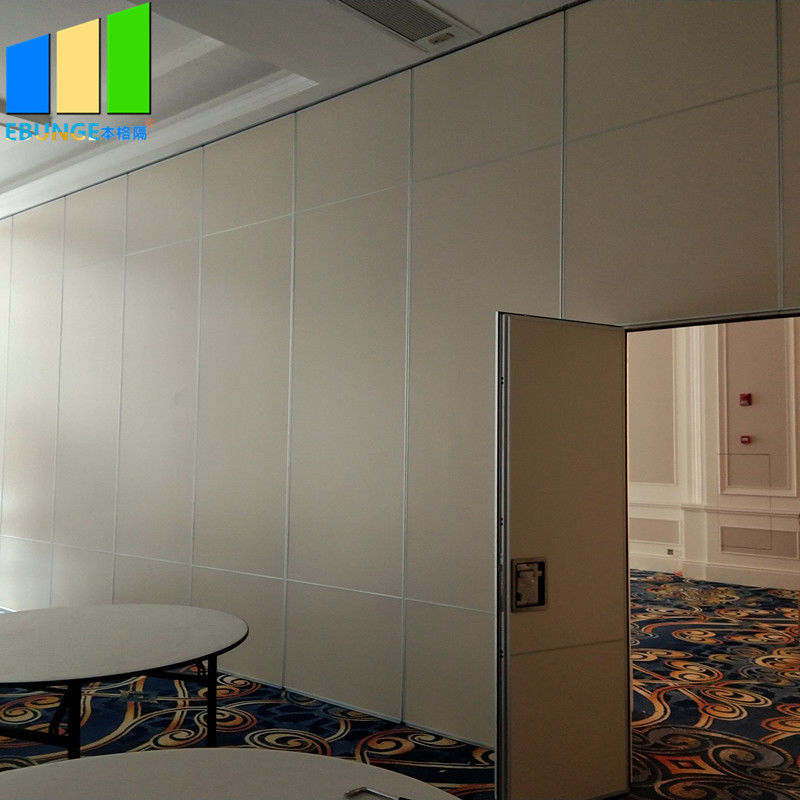

Folding partition walls moving hotel partition door foldable wall divider sliding partition wall in philippines for hotel
Description:
First, how to open a multi-directional screen. All operations should be gentle and should pay attention to safety. Facing the screen station, use both hands to grab the screen and pull the screen in the direction of the rails; turn the screen in the direction of the rails. After pushing the screen to its place, fix the screen. Tip: When pushing the screen to the intersection, you should pay attention to the direction of the rail, and then gently push the screen along the rail to the position where it should be placed.
Second, how to fix a multi-directional screen. With one hand holding the screen, the other hand puts the handle into the hexagonal steel at 1100mm on the side of the screen, grasps the handle and rotates it 180 degrees in the clockwise direction, and the telescopic seal inside the screen pops up to fix the screen. Insert the handle into the groove on the side of the screen, and pull the handle upwards to open the expansion screen inside the screen to fix the screen. After the entire group of screens is placed, check whether the screen is straight, whether it is on the same plane as the rails, and if it is not straight, retract the upper and lower expansion seals until the screen is flat.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized) | ||
Installation:
(1)Size of the wall: all panels should be installed in accordance with the manufacturer's recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on-site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tear-out or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples, or screws into prefixed timber battens on the walls via the tongue and groove joint. It also can be fixing by a light steel keel.
Acoustic partition is made of high quality anodized aluminum frame with composite materials.The panel has a standard thickness of 65mm and a width up to 1200mm.Maximum height can reach 4500mm tall.Its vertical seal.together with the horizontal top and bottom retractable seals provide excellent acoustic insulation property of maximum STC 53 db in laboratory setting.Its high performance per dollar value make it becomes the most economical suitable for restaurant,schools,office,church,hospitals,shopping arcades and many other indoor applications product.
Acoustic partition is made of high quality anodized aluminum frame with composite materials.The panel has a standard thickness of 65mm and a width up to 1200mm.Maximum height can reach 4500mm tall.Its vertical seal.together with the horizontal top and bottom retractable seals provide excellent acoustic insulation property of maximum STC 53 db in laboratory setting.Its high performance per dollar value make it becomes the most economical suitable for restaurant,schools,office,church,hospitals,shopping arcades and many other indoor applications product.
