Metal Folding Screen Acoustic Room Dividers Sliding Partition Door Aluminum Frame For Mosque
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm Acoustic room divider |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | 60-119 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | T/T |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Divider | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 6 M | Width: | 500-1200 Mm |
| Thickness: | 85mm | Function: | Space Dividing,sound Proof |
| Style: | Modern Style | Warranty: | 3-5 Years |
| High Light: | sound proof room divider,banquet hall room dividers |
||
Product Description

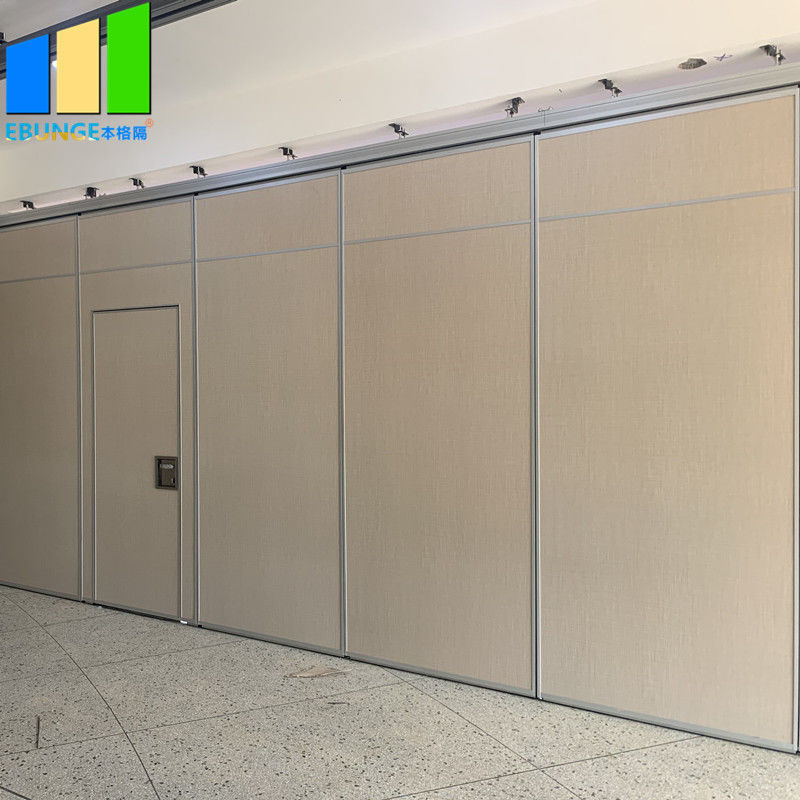

Metal folding screen acoustic room dividers sliding partition door aluminum frame movable partition for mosque
Description:
Acoustic partition is made of a high-quality anodized aluminum frame with composite materials.
Movable Partition Walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.
Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements, and surface finishes, with melamine probably being the most popular.
The best door for maximum acoustic performance, with variable options on sound reduction from 32 dB (Rw) to 53 dB(Rw).
Also available with 30 and 60-minute fire resistance.
Manual or Semi-automatic operation.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized) | ||
Installation:
(1)Size of the wall: all panels should be installed in accordance with the manufacturer's recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on-site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tear-out or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples, or screws into prefixed timber battens on the walls via the tongue and groove joint. It also can be fixing by a light steel keel.
Sliding aluminum track system:
For single or paired panels up to 250 kg. One 4-wheeled carrier is provided per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings. Resilient mounted body for quiet operation and load distribution.special for center stacking option. The usual dimension from the ceiling to the structure is 200 mm.
For the Omni-directional panel up to 225 kg. Two carriers are provided per panel. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. The usual dimension from the ceiling to the structure is 200 mm.
