Payment & Shipping Terms:
|Product Name:||Folding Partition Walls||Material:||MDF With Melamine|
|Color:||Customized||Service:||ODM & OEM|
|Finish:||Melamine;fabric;leather||Package:||Standard Wooden Case|
|Frame Material:||Aluminum Alloy Profile||Max Height:||4000 MM|
|Thickness:||65 MM||Panel Width:||500-1230 MM|

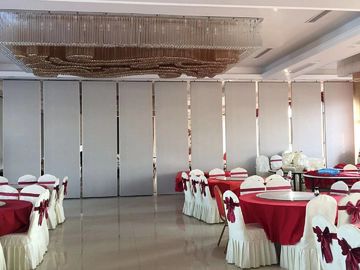

Acoustic Wood Wooden Folding Partition Wall System For Hotel Ballroom
|Technical Parameter for Partition Panel||Panel Width||500~1230mm|
|Vertical profile||Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside|
|Finish options||Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish|
|Base options||Plywood, Gypsum, steel, MDF|
|Pass door selection||door||Single or double door|
What are the differences between a solid wall and a folding partition wall?
1. The biggest difference between folding partition wall and solid wall is that it is convenient for disassembly and installation and does not have the function of bearing weight, but it is very convenient to belong to non-load-bearing movable partition wall.
2. The folding partition wall is generally the same as the ordinary wall, but it is detachable and reassembled, which is different from the traditional wall. That is to say, the "folding partition wall" is reusable, they are sliding, movable and easy to operate. They are is convenient and flexible to use, while the solid wall is permanently fixed.
3. The folding partition wall is light in weight, high in strength, moderate in thickness, easy to install and reusable, and has the characteristics of sound insulation, fire prevention, moisture resistance and environmental protection.
4. The folding partition wall is represented by the installation track, the track and suspension wheels are perfectly combined, and the top is treated with special sound-proof slat.
5. The solid wall is a simple one, normally in white color. But the folding partition wall can be colorful, there are more than 100 colors to choose. And there are different surface to choose, we also can put the favorite drawing onside the based board.

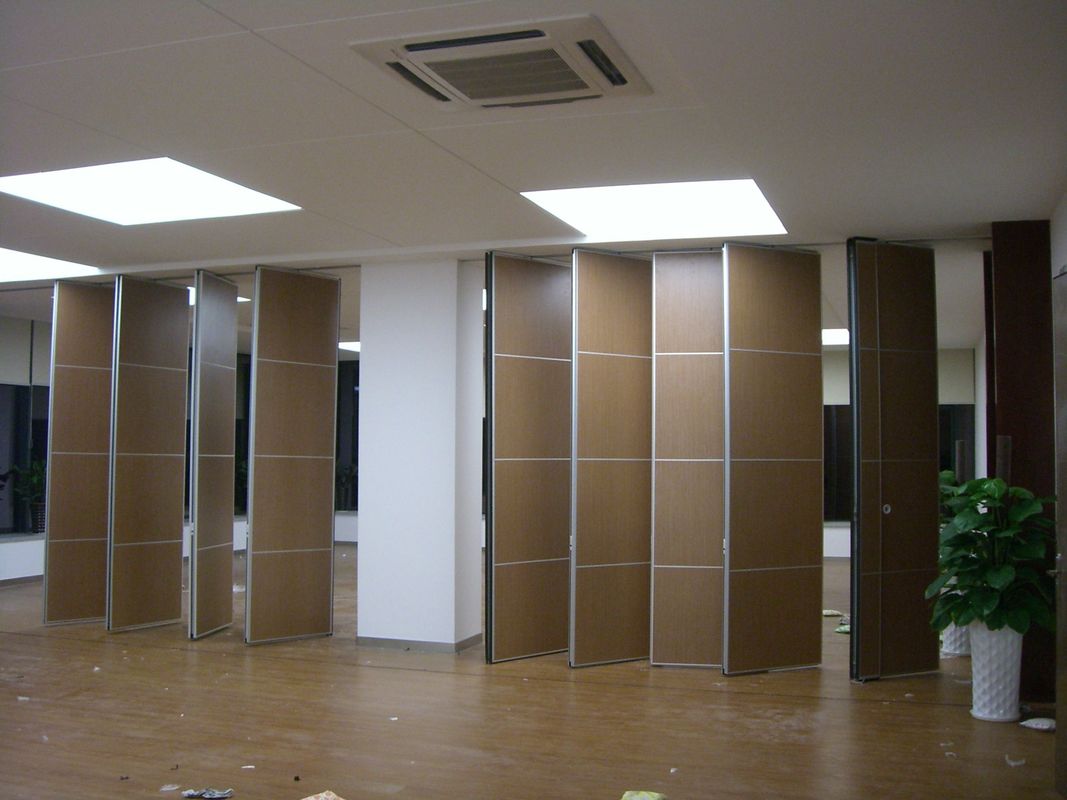

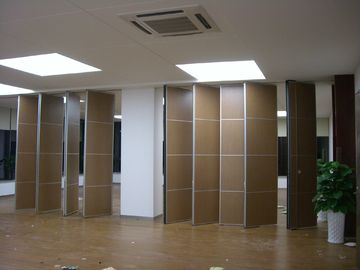

The panel is a range of folding wall systems that incorportaes two panels (each up to 900mm wide) that are hinged together to give a flush appearance when closed.
Folding walls are quick to operate and are available in a range of acoustic ratings from 30db-49db. Sound attenuation is achieved by modern manufacturing methods and the unique panel construction that consists of an aluminum frame, particle board cladding and multiple acoustic infills.
Features & Benefits:
Hinged pair panels for quick and easy operation.
Robust aluminum frame construction for demanding environments.
Wide range of surface finishes.
Partial and fully glazed panels available.
Top hung supported.
Pass door self-lock system:
Using strong force spring press device to fix the pass door (door-in-door) instead of the fixing method with ground spike that can destroy the land.
How to install?
A beam (truss) should be built on site for track installation. The minimum distance leaving for track installation from false ceiling to top ceiling is 180 mm.
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
1. Q: Are you a manufacturer or trading company?
A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.
4. Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5. Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6. Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
Very welcome to visit our Web and contact us!
Send us a question below to get a movable wall catolog and special discounts!
