|Product Name:||Folding Partition Walls||Material:||MDF With Melamine|
|Color:||Customized||Service:||ODM & OEM|
|Finish:||Melamine;fabric;leather||Package:||Standard Wooden Case|
|Frame Material:||Aluminum Alloy Profile||Max Height:||6000 MM|

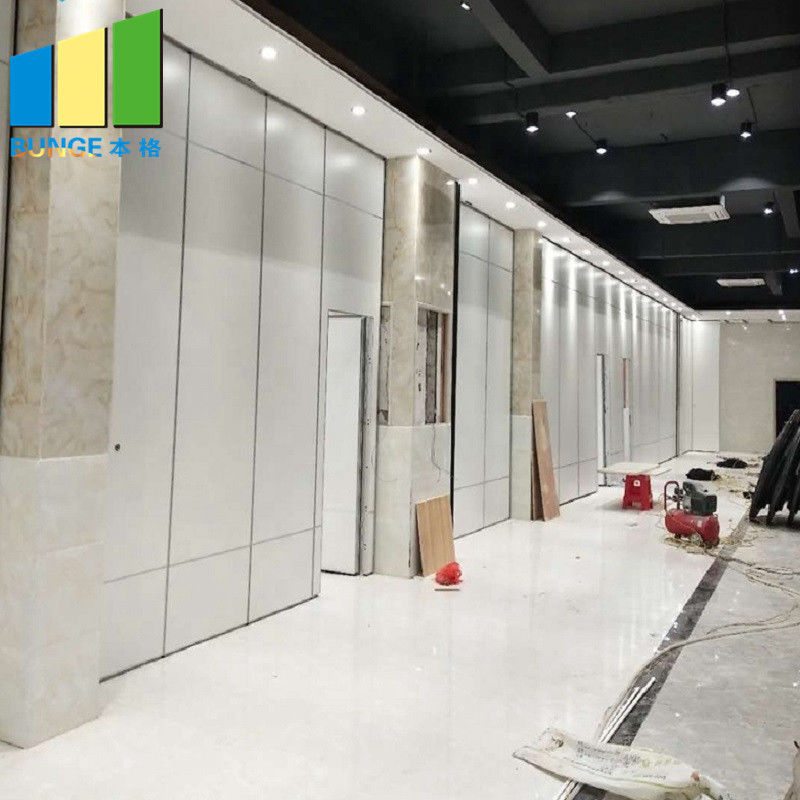

Movable wall partition system demountable folding partition wall for 5-star hotel
|Technical Parameter for Partition Panel||Panel Width||500~1230mm|
|Vertical profile||Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside|
|Finish options||Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish|
|Base options||Plywood, Gypsum, steel, MDF|
|Pass door selection||door||Single or double door|
The panel is a range of folding wall systems that incorporates two panels (each up to 900mm wide) that are hinged together to give a flush appearance when closed.
Folding walls are quick to operate and are available in a range of acoustic ratings from 30db-49db. Sound attenuation is achieved by modern manufacturing methods and the unique panel construction that consists of an aluminum frame, particle board cladding and multiple acoustic infills.
When moving a wall panel, there is a 20-25 mm gap between the top of the panel and the underside of the head track and there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals. The pressure seals are extended and retracted by a single 180° turn of a movable operating handle.
Final closure of the wall is achwared by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
The bottom panel is MDF or plywood, which is unfinished face.
You can do decoration on site, such as wallpaper, paint, etc.
We can provide the product with finished face, such as malamine, faux wood, woven fabric and leather.
Choose from our stylish fabric or leather covers and have the option to have a soft/hard surface.
We can also provide glass partition for glass clip or aluminum frame panel.
1.Q: Are you a manufacturer or trading company?
A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.
4.Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5.Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6.Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
Very welcome to visit our Web and contact us!
Send us a question below to get a movable wall catolog and special discounts!
