Type 85 Movable Partition Wall Retractable Room Divider / Sliding Partition Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EBUNGE |
| Model Number: | 85 MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton paper packing ,MDF Batten cover all over the corner |
| Delivery Time: | 7-28 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Partition Walls | Material: | MDF With Melamine |
|---|---|---|---|
| Color: | Customized | Service: | ODM & OEM |
| Finish: | Melamine;fabric;leather | Package: | Standard Wooden Case |
| Frame Material: | Aluminum Alloy Profile | Max Height: | 6000 MM |
| Thickness: | 85 MM | Application: | Hotel; Office; Art Gallery |
| Transport: | Sea Transportation; Air Transportation In Emergency Condition | Condition: | New |
| Style: | Simple & Modern | ||
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

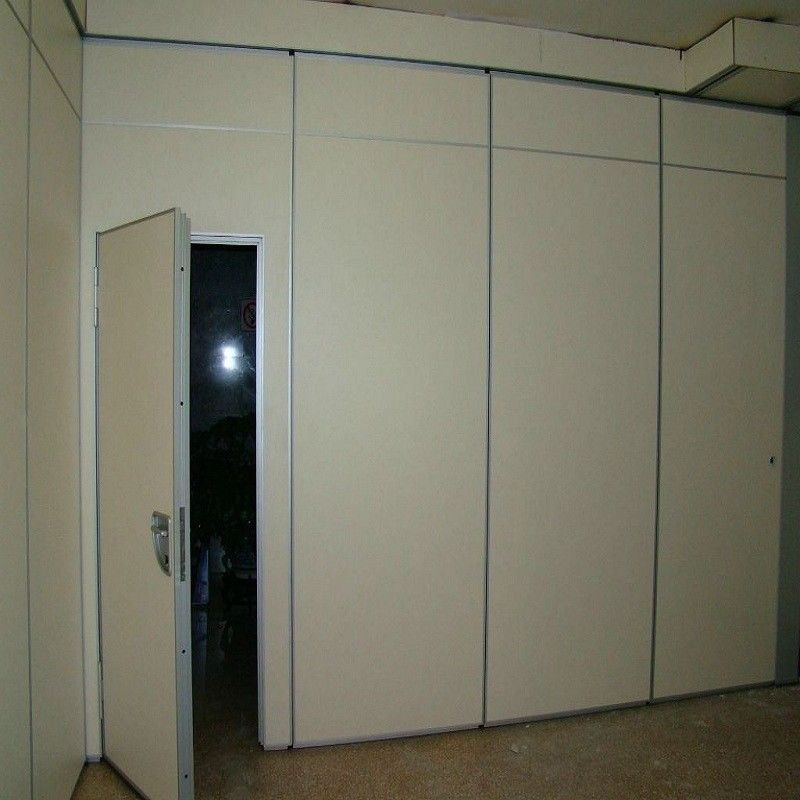

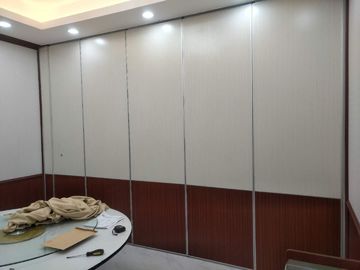

Type 85 movable partition wall retractable room divider sliding partition wall
Sound Proof Partition:
| Description of the system | |
| Item | Movable Partition Wall |
| Applicable height | Suitable for below 6 meters |
| STC(dB) | 36 |
| Description of the partition wall | |
| Thickness(mm) | 85 mm,customize available |
| Width(min/max)mm | 680-1228 |
| Height(min/max)mm | 2000-6000 |
| Suface Material | MDF, Melamine board, Hard fabric, Soft fabric,PU etc. |
| Main Material | 6063-T6 |
| Net Wight(Kgs/m2) | 28-40 |
Installation of partition:
A beam(truss) should built on site for track installation. The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
Transport & Goods Packing:
Sea transport is a common mode of transportation. In an emergency, can be air freight.
Carton paper packaging, MDF batten cover all around corner.
The movable wall panel and rack, fittings will be packed separately.
Surface Finishes:
The bottom panel is MDF or plywood, which is unfinished face.
You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as melamine, faux wood, woven fabric and leather.
Choose from our stylish fabric or leather covers and have the option to have a soft/hard surface.
We can also provide glass partition for glass clip or aluminum frame panel.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.
4.Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5.Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6.Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
