Payment & Shipping Terms:
|Product Name:||Operable Partition Wall||Material:||MDF With Melamine|
|Color:||Customized||Service:||ODM & OEM|
|Finish:||Melamine;fabric;leather||Package:||Standard Wooden Case|
|Frame Material:||Aluminum Alloy Profile||Max Height:||6000 MM|
|Thickness:||85 MM||Base Board:||9 MM|
2020 India Classroom Soundproof Folding Partition Acoustic Operable Partition Wall With Foldable Ebunge Partition
Acoustic operable partition wall
|Technical Parameter for Partition Panel||Panel Width||500~1230mm|
|Vertical profile||Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside|
|Finish options||Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish|
|Base options||Plywood, Gypsum, steel, MDF|
|Pass door selection||door||Single or double door|
The basic function of operable partition wall is to divide space.
It can divide a large space into a small space or a small space into a large space at any time ,according to different customers needs and has a general wall function.
Mainly benifits of partition wall is that has high sound insulation, fire prevention, sliding and folding, and easy operation.

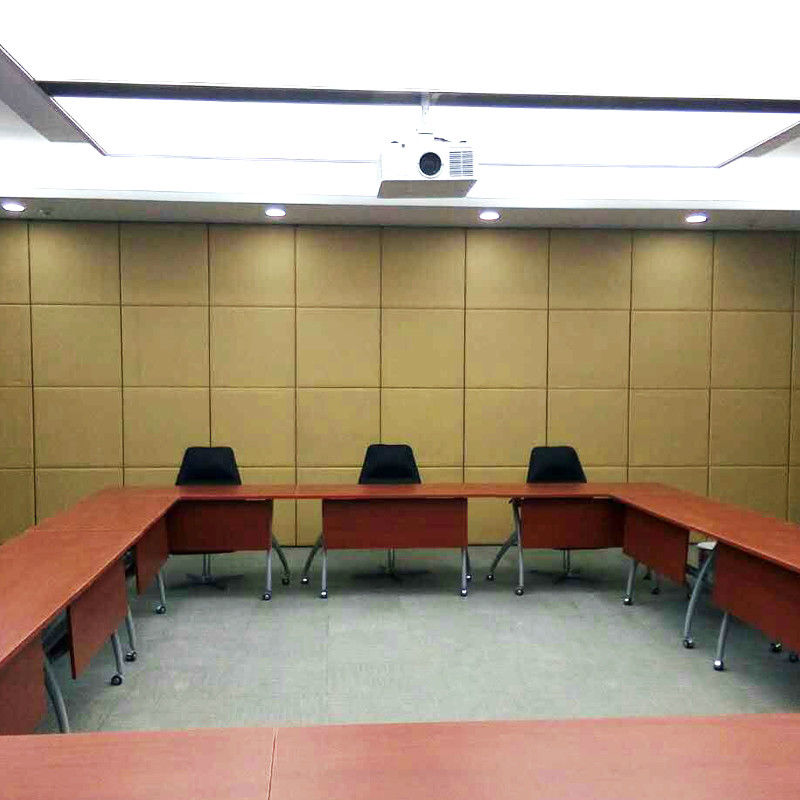

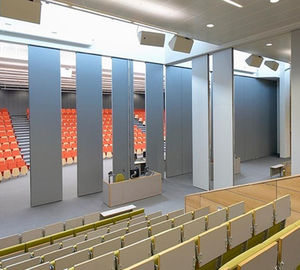

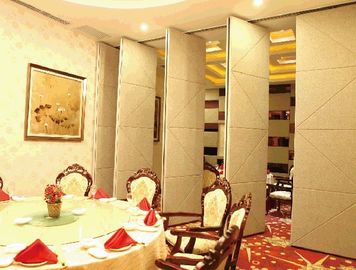

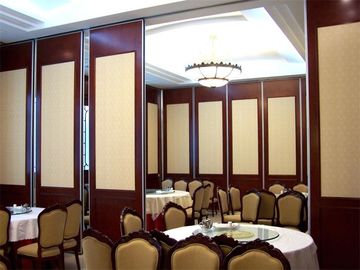

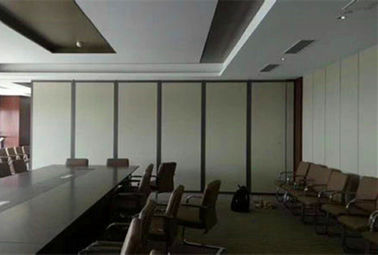

It has been widely used in hotels, ballrooms, multi-function halls, conference rooms, banquet halls, office buildings, exhibition halls, dancing rooms and other occasions.
Bunge's reputation for quality and reliable products, clever designs and an insistence on excellent service is the reason why architects, engineers and contractors routinely insist on Bunge partition walls for their building projects.
The operation of our partition wall is very easy. We apply the hanging system which ensure the smooth operation of the partition. You just need to push the partition wall slightly, then it will move along the track. Even one person can handle the whole operation.
When moving a wall panel, there is a 20-25mm gap between the top of the panel and the underside of the head track and there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals. The pressure seals are extended and retracted by a single 180° turn of a removable operating handle.
Final closure of the wall is achwared by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
The bottom panel is MDF or plywood, which is unfinished face.
You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as melamine, faux wood, woven fabric and leather.
Choose from our stylish fabric or leather covers and have option to have a soft/hard surface.
We can also provide glass partition or glass clip or aluminum frame panel.
Different surface use in different areas.Our main surface is mdf melamine, it can be more easy to clean.
Also fabric and leather surface is very popular in conference room or banquet hall.
And like dancing room or classroom,client prefer mirror surface.
Also we can design surface pu leather with printing photos.
If client prefer to paint color on panels, we suggest Mdf bare finish.If prefer to glue wallpaper, plywood surface is a good choice.
1.Q: Are you a manufacturer or trading company?
A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.
4.Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5.Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6.Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
Very velcome to visit our Web and contact us!
Send us a question below to get a movable wall catolog and special discounts!
Contact Person: Felicity Huang
