Soundproof Acoustic Folding Movable Partition Walls Fabric Sliding Doors
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EBUNGE |
| Model Number: | 85 MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton paper packing ,MDF Batten cover all over the corner |
| Delivery Time: | 7-28 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Partition Wall | Material: | MDF With Melamine |
|---|---|---|---|
| Color: | Customized | Service: | ODM & OEM |
| Finish: | Melamine;fabric;leather | Package: | Standard Wooden Case |
| Frame Material: | Aluminum Alloy Profile | Max Height: | 6000 MM |
| Thickness: | 850 MM | Weight: | 22-35 Kg/㎡ |
| Finish Surface: | Customized | ||
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

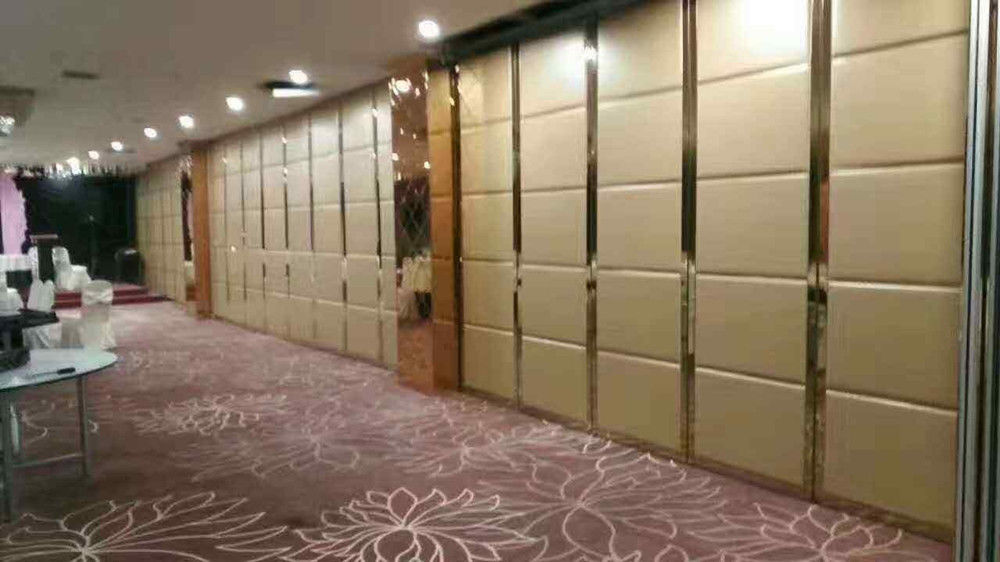

Soundproof Acoustic Folding Movable Partition Fabric Sliding Doors
Product description:
The partition panel is made of aluminum frame, special made rubber, excellent sound insulation cotton, finish board, etc. The finish panel is flat and hard; The finish panel is inserted in the aluminum track, assembled with multi-direction wheels. The panel can be stored in many different ways. BUNGE movable partition wall is flexible and can be moved freely. And it has sound insulation, heat insulation and fireproof function.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm | ||
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point | ||
| Frame construction | Aluminum frame | ||
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Hanging system description:
The track and roller are fitted with magnetic membrances which ensure positive interlocking of the panels. Once the wall panels have been adjusted for height and level, the roller stems are locked with a fail-safe mechanism to ensure that the panels will align perfectly every time the wall is set up. Pressure seals extend from the top and bottom of each panel exerting a closing pressure of 2kg provicling pravicling panel stability and excellent acoustic sealing.
Panel faces are suspended from a steel frame with just 1 or 2points of contact. The edges of panel faces are slotted into aluminum profiles. This method of cladding the steel frame allows the panel faces to be acoustically separated from each other and thereby minimises the transfer of sound waves through the system. Each panel has an extruded aluminum male profile to one vertical edge and a female profile to the other.
Advantages of sliding partition:
1. Individual panels that can be stored away for maximum space utilisation.
2. Operable top and bottom seals for effortless operation.
3. Isolated aluminum frame construction for enhanced acoustic.
4. No floor track ensures free obstruction threshold.
5. Three panel sizes to accommodate a wide range of acoustic requirements.
6. Extensive range of surface finshes can be qpplied.
Pass door:
A door in the partition can help you to go through freely. You can choose to open a door or not according to your need. We use strong force spring press device to fix the pass door (door-in-door) instead of fixing method with ground spike that can destroy the land.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.
4.Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5.Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6.Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
