500MM Width Movable Partition Walls Banquet Hall Convention Center Solid Wall Partitions
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EBUNGE |
| Model Number: | 65 MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton paper packing ,MDF Batten cover all over the corner |
| Delivery Time: | 7-28 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Material: | MDF With Melamine |
|---|---|---|---|
| Color: | Customized | Service: | ODM & OEM |
| Finish: | Melamine;fabric;leather | Package: | Standard Wooden Case |
| Frame Material: | Aluminum Alloy Profile | Max Height: | 6000 MM |
| Thickness: | 85 MM | Width: | 500 - 1230 MM |
| Weight: | 22-35 Kg/㎡ | Condition: | New |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

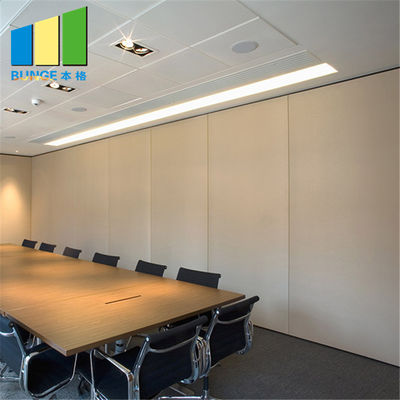

Banquet hall Convention center solid wall partitions test movable partition wall
Product description:
We have four types of movable partition wall, 65 type, 85 type, 100 type and 125 ulta-high type.
You can choose the right movable upon the height and soundproof requirement as following,
65 type: Max height: 4000 mm(160 inch), soundproof: 20-28 db.
85 type: Max height: 6000 mm(220 inch), soundproof: 25-36 db.
100 type: Max height: 900 mm(350 inch), soundproof: 30-35 db.
125 ultra-high type: Max height: 17000 mm(670 inch), soundproof: 40-55 db.
| Description of the system | |
| Item | Movable Partition Wall |
| Applicable height | Suitable for below 6 meters |
| STC(dB) | 36 |
| Description of the partition wall | |
| Thickness(mm) | 85 mm ,customize available |
| Width(min/max)mm | 500-1230 |
| Height(min/max)mm | 2000 - 6000 |
| Suface Material | MDF, Melamine board, Hard fabric, Soft fabric,PU etc. |
| Main Material | 6063-T6 |
| Net Wight(Kgs/m2) | 28 - 40 |
Operation of partition:
When moving a wall panel, there is a 20-25 mm gap between the top of the panel and the underside of the head track and there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals. The pressure seals are extended and retracted by a single 180° turn of a removable operating handle.
Final closure of the wall is achwared by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
Advantages:
Individual panels that can be stored away for maximum space utilisation.
Operable top and bottom seals for effortless operation.
Isolated aluminum frame construction for enhanced acoustics.
No floor track ensures obstruction free threshold.
Three panel sizes to accommodate a wide range of acoustic requirements.
Extensive range of surface finishes can be applied.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.
4.Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5.Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6.Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
