Product Details:

Place of Origin: Guangdong, China
Brand Name: EBUNGE
Model Number: 100 MM

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: Negotiable
Packaging Details: Carton paper packing ,MDF Batten cover all over the corner
Delivery Time: 7-28 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Movable Partition Walls Material: MDF With Melamine
Color: Customized Service: ODM & OEM
Finish: Melamine;fabric;leather Package: Standard Wooden Case
Frame Material: Aluminum Alloy Profile Max Height: 4000 MM
Thickness: 65 MM Width: 500 - 1230 MM
Sample: Optional Drawing: Free
High Light:

movable walls on wheels

,

movable partitions systems

Product Description

Conference room mobile acoustic partition meeting room sound proof movable walls training room mobile wall

Product Description:

Series BG65 BG85 BG100
Panel suspension Top hung only
Panel thickness 65mm 85mm 100mm
Max height 4000mm 6000mm 8000mm
Panel width 600-1230mm
Face material 9mm 9mm 12mm
Sound insulation 20-32db RW 30-38db RW 35-45db RW
Weight 20-30 kg/sq M 22-35kg/sq M 28-40kg/sq M
Track system Single or two point
Frame construction Aluminum frame
Finish materials Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Conference Room Sound Proof Movable Walls Training Room Mobile Wall 0



Application Description:

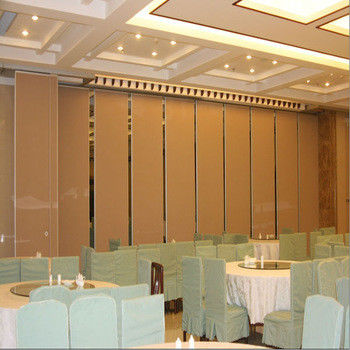

One of the most important functions of movable partition is to divide space. Using our movable partition, you can divide a large space into several small ones. If you need a large space, you can store away the panels, then a large space will be achieved. It is very convenient and easy operation. Even one person can finish the whole operation. Our movable partitions are widely used in the hotel banquet hall, meeting room, exhibition hall, conference room, International convention center, KTV, upscale restaurants, office building, school, hospitals and others. The movable partition wall is becoming a trend in building.



Operation Description:

When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminum overhead ceiling track system (no need for floor guide). Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configuration.



Conference Room Sound Proof Movable Walls Training Room Mobile Wall 1



Pass Door Description:

Using strong force spring device to fix the pass door (door-in-door) instead of the fixing method with ground spike that can destroy the land.



Conference Room Sound Proof Movable Walls Training Room Mobile Wall 2



Features & Benefits Description:

1. Hinged pair panels for quick and easy operation.

2. Robust aluminum frame construction for demanding enviroments.

3. Wide range of surface finishes.

4. Partial and fully glazed panels available.

5. Top hung supported.



FAQ

1.Q: Are you a manufacturer or trading company?

A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.



2. Q: What is the price of the movable wall?

A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.





3. Q: Is the movable partition acoustic (soundproof)?

A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.



4.Q: How to install an active partition? Is it difficult to complete?

A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.



5.Q: Do you provide sample?

A: Yes, and the sample is free, you just pay the express delivery fee is ok.



6.Q: What is your payment terms?

A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.



7. Q : What is your warranty ? What do we do in case of problems?

A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
