Removable Sliding Partition Walls Interior Room Divider Acoustical Wall Panel Fabric

Removable Sliding Partition Walls Interior Room Divider Acoustical Wall Panel Fabric

Product Details:

Place of Origin: Guangzhou,China
Brand Name: EBUNGE
Model Number: Series 85 mm sliding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 70-159 USD per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Sliding Partition Walls Material: Aluminium And Mdf Board
Height: Less Then 6 M Width: 500-1200 Mm
Thickness: 85mm Aluminum Frame Function: Space Dividing
Finish: Melamine, Fabric, Leather, MDF Bare Finish Warranty: Sound Proof Partitions Warranty 3-5 Years
High Light:

sliding folding partition

,

sound proof sliding partitions

Product Description

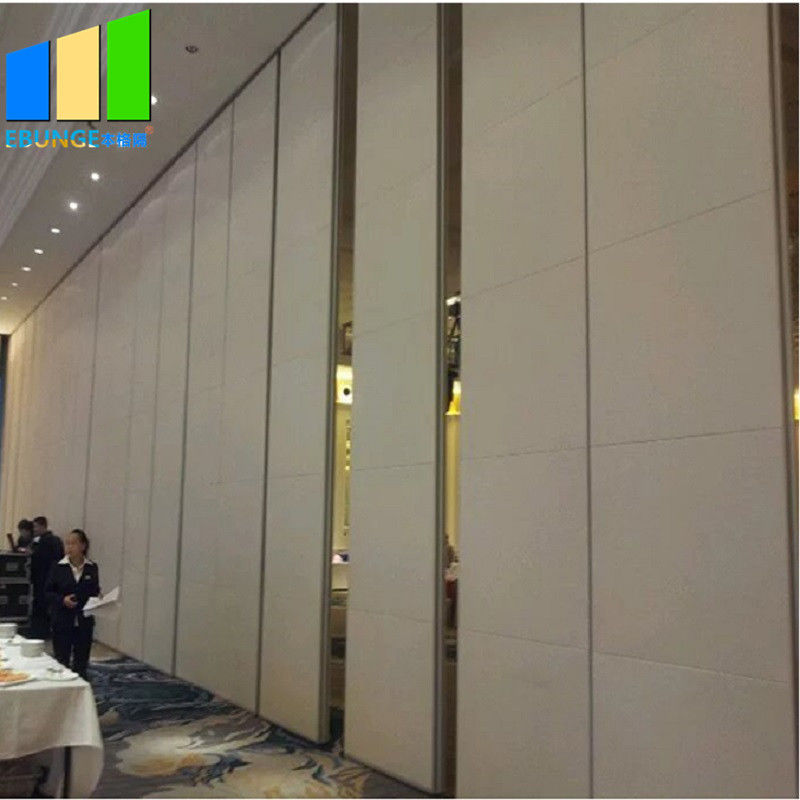

Removable sliding partition walls interior room divider acoustical wall panel fabric banquet hall room divider

Description:

Our sliding partition walls system accessories are custom for each client and project, and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections.
Besides the high sound-absorbing test, we have passed the Eco-protection test and Fireproof test, to ensure you get the top quality product and enjoy a safe, comfortable and low carbon emission way of life on movable and operable partition system.

Removable Sliding Partition Walls Interior Room Divider Acoustical Wall Panel Fabric 0

Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized)

Removable Sliding Partition Walls Interior Room Divider Acoustical Wall Panel Fabric 1

Feature:

1. Space management ~ Movable walls offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centers, or retail areas.


2. Smart use of space – Movable walls offers a flexible solution for making the most of interior space. Room sizes can be changed in a matter of moments to capitalism on the revenue potential of commercial space or simply create the most efficient use of floor space.


3. Acoustics ~ the movable wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation of up to 58dB noise reduction is achieved with a combination of acoustic infills and operable top and bottom seals.


4. Operation ~ space without a trace ~ when the operable seals are retracted the panels will glide effortlessly and quietly along with the unique aluminum overhead track system (no need for floor guide). The final closure of each panel is by a removable operating handle that extends the seal from the top and bottom of each panel forming an acoustic seal.


5.Adaptable configurations – The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.


6.Panel options ~ Individual panels can be constructed with either manual or semi automatic retractable top and bottom seal. Panels are also available curved or with inset pass doors and glazed cut outs.

Removable Sliding Partition Walls Interior Room Divider Acoustical Wall Panel Fabric 2

Operation:
When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).
Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
