Home ProductsSliding Partition Walls

Sliding Partition System Soundproof Partition Wall Hall Divider

Certification
China Guangdong Bunge Building Material Industrial Co., Ltd certification
China Guangdong Bunge Building Material Industrial Co., Ltd certification
Customer Reviews
We had installed the partition wall - it worked out well and our customer is happy. So we would like to thank you for delivering high quality goods an

—— Frank

I am so glad to cooperate with Bunge. Their products with good quality and pretty competitive price. My customers like it very much.

—— Grace

We have a lot of business with Bunge since 2011 ,I hope we have more orders and they continue to give our best service and quality.

—— Roger

Bunge is very serious and responsible supplier , partition walls have good quality and high sound proof .

—— Charles

I'm Online Chat Now

Sliding Partition System Soundproof Partition Wall Hall Divider

Sliding Partition System Soundproof Partition Wall Hall Divider
Sliding Partition System Soundproof Partition Wall Hall Divider Sliding Partition System Soundproof Partition Wall Hall Divider Sliding Partition System Soundproof Partition Wall Hall Divider Sliding Partition System Soundproof Partition Wall Hall Divider Sliding Partition System Soundproof Partition Wall Hall Divider

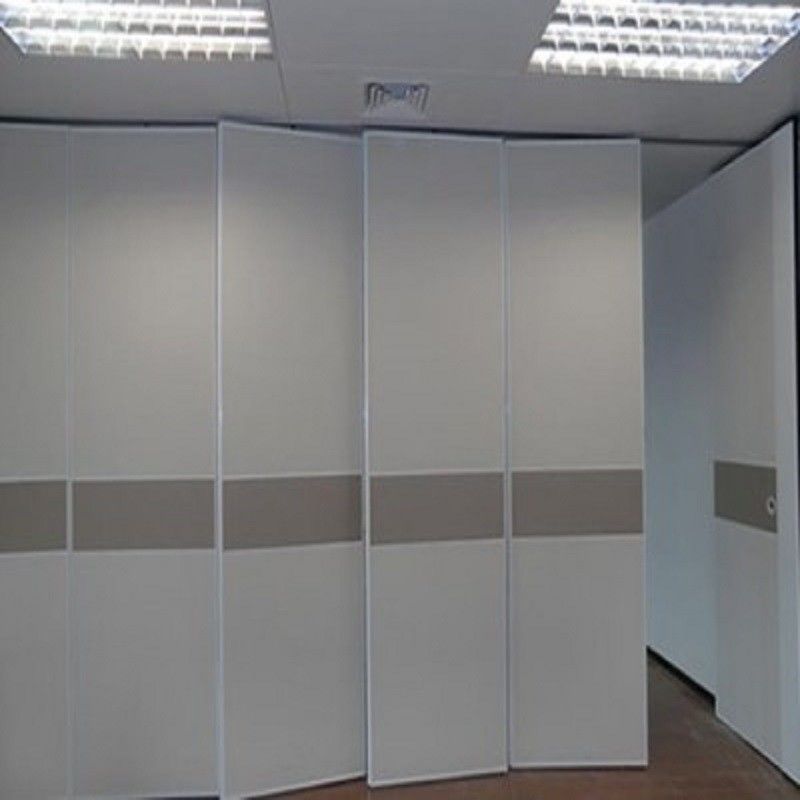

Large Image :  Sliding Partition System Soundproof Partition Wall Hall Divider

Product Details:

Place of Origin: Guangdong, China
Brand Name: EBUNGE
Model Number: 65 MM

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: Negotiable
Packaging Details: Carton paper packing ,MDF Batten cover all over the corner
Delivery Time: 7-28 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 square meters per month
Detailed Product Description
Product Name: Sliding Partition Walls Material: MDF With Melamine
Color: Customized Function: Soundproof Partition Wall Panels
Service: ODM OEM MOQ: NO MOQ
Finish: Melamine Package: Standard Wooden Case
Frame Material: Aluminum Alloy Profile Height: 4000 MM
Thickness: 65 MM
High Light:

sliding folding partition

,

sound proof sliding partitions

Sliding partition system soundproof partition wall price hall divider

Product Description

Sliding partition wall can separate the space speedy and conveniently.
There is top hung system without the need for a floor track.
Sliding wall partition is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.

Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
Sliding partition wall is hanging on the aluminum track, assembled with multi-direction wheels.

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65mm 85mm 100mm
Max height 4000mm 6000mm 18000mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9mm 9mm 12 mm
Passdoors Single door or Double door
Sound insulation 28-38dB Rw 28-42dB Rw 32-50dB Rw
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)



Modernized Soundproof Sliding partition
1. Hanging on ceiling The floor without a track, just put the rail mounted on the ceiling
2. Excellent Quality Each pieces of partition can turn around 360 degree.
3. Stable and secure After partition is stable and reliable, and is not easy to swing
4. Energy efficient The large space divided into a small space, in order to reduce air conditioning power consumption;
5. Heatproof&fireproof Good heat insulation performance, Adopt effective fire prevention materials
6. Elegant appearance Surface any adornment, can unite with indoor adornment effect
7. Easy to collect Can be hidden in the special coffer, does not affect the overall appearance
8. Various applications Hotels, exhibition halls, restaurants, multi-functional rooms etc.



Sliding Partition System Soundproof Partition Wall Hall Divider 0



Features & Benefits:

Top hung supported.

Wide range of surface finishes.

Individual panels that can be stored away for maximum space usage.

Robust aluminum frame construction for demanding environments.

Hinged pair panels for quick operation.

Operable top and bottom seals for effortless operation.



Partition Construction

Sliding Partition System Soundproof Partition Wall Hall Divider 1

Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the retractable partitions panels with wheels.
Wheels/Rollers: It is the carrier for the retractable partitions,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the retractable partitions.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.



FAQ

1. What you should do on site?

A beam(truss) should be built on site for track installation. The minimum distance leaving for track installation from false ceiling to top ceiling is 180 mm.

2. How to install?

We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.

3. What is lead time?

The lead time is 7 days to 28 days.

4. How to transport?

Sea transport is a common mode of transportation. In an emergency, can be air freight.

5. How do the goods packing?

Carton paper packaging, MDF batten cover all around corner.

The movable wall panel and track, fittings will be packed separately.

6. What is procurement procedure?

Firstly, send us the shop drawings(if the shop drawing is not available, you can tell us the height from false ceiling to finished floorand width from wall to wall).

Secondly, we offer you the movable wall layout drawings for your confirmation.

Thirdly, we quote the movable wall in accordance with confirmed drawings.
