|Product Name:||Movable Partition Walls||Material:||MDF With Melamine|
|Color:||Customized||Function:||Soundproof Partition Wall Panels|
|Service:||ODM OEM||MOQ:||NO MOQ|
|Finish:||Melanimine||Package:||Standard Wood Case|
|Frame Material:||Aluminum Alloy Profile||Height:||4000 MM|
|Panel Board Thickness:||9 Mm|
movable walls on wheels,
movable partitions systems

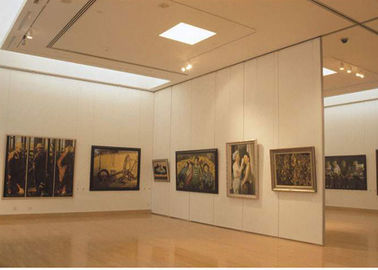

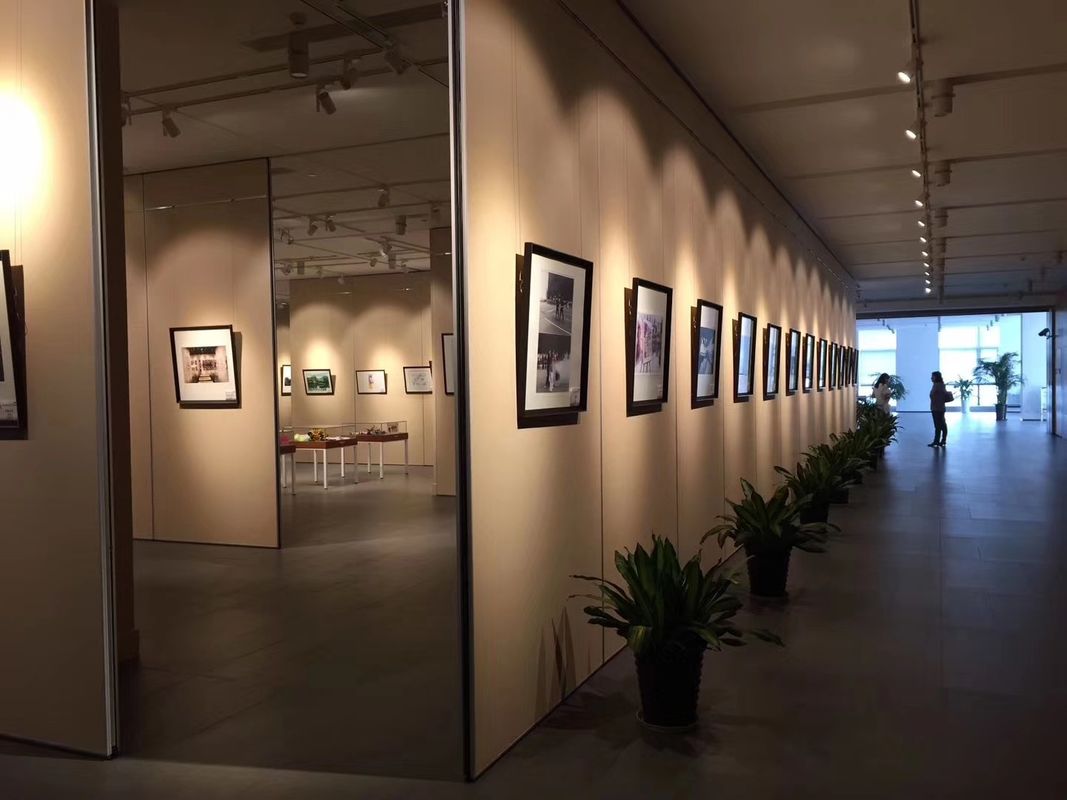

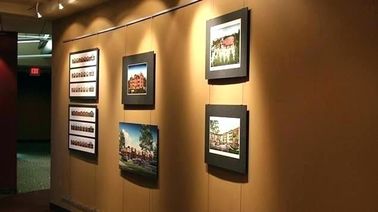

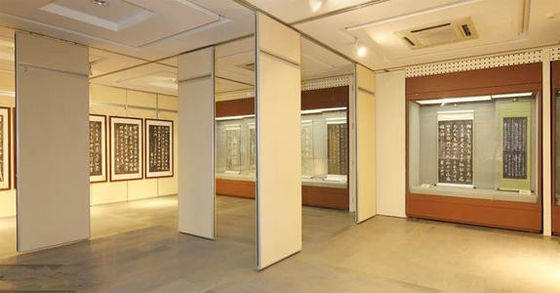

Temporary detachable walls museum movable wall partition sliding room divider for art gallery
The effective division of space some times requires utmost flexibility. Whether the requirement is to divide a teaching area, temporarily divide a conference suite, or simply create extra rooms out of one large space, the answer is movable walls. Ebunge Movable Walls have adopted the advance partition technology of USA, Germany and Denmark. We have professional staff with more than 10 years experience in design, production and installation.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
1. Individual panels that can be stored away for maximum space usage.
2. Operable top and bottom seals for effortless operation.
3. Aluminum frame construction for ehanced acoustics.
4. The system offers various levels of sound reduction.
5. Unique track and carrier system ensuring quiet and easy operation.
6. Numerous panel stacking options for complete flexibility.
7. Top hanging and no floor track.
8. Extensive range of surface finishes can be available.
Packaging & Delivery
Selling Units:Single item
Single package size: 4000X1100X100 cm
Single gross weight:26.0 kg
Package Type:Carton package, MDF batten on four section sides ,foam board on both front face
Lead Time :
|Quantity(Square Meter)||1 - 50||51 - 200||201 - 500||>500|
To be negotiated
Components of Office Partition Walls:
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.
Wheels/Rollers: It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g
What can we provide?
1. Factory direct price
2. Nice quality
3. Quick shipping with 5 days
4. Small order welcome
5. More than 3 years warranty
6. Support customer designs OEM ODM service
1: What you should you do on site?
A beam (truss)should built on site for track installation.The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.
2: How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
3: What is lead time ?
The lead time is 7 days to 10days.
4: How to ransport?t
Sea transport is a common mode of transportation.In an emergency,can be air freight .
5: How do the goods packing?
Carton paper package ,MDF batten cover all around cotner.
6: What is procurement procedure?
Firstly, seng us the shop drawing (if the shop drawings is not available ,you can tell us the height from false ceiling to finfshed floor and width from wall to wall)Secondly, we offer you the movable wall layout drawings for your confirmation.Thirdly, we quote the movable wall in acordance with confirmed
