Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center

China Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center supplier
Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center supplier Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center supplier Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center supplier Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center supplier Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center supplier Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center supplier

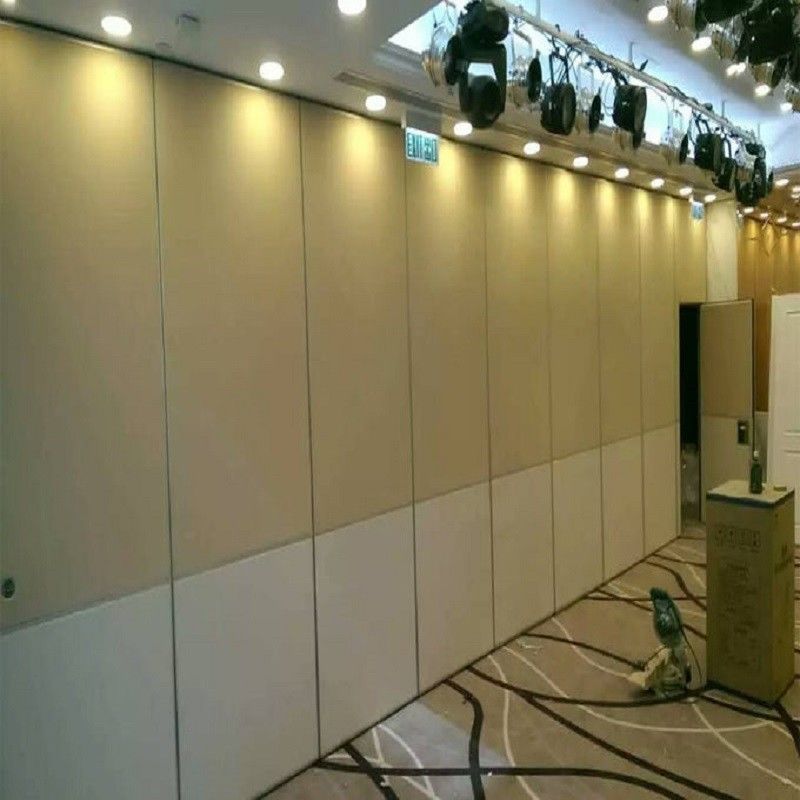

Large Image :  Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center

Product Details:

Place of Origin: Guangdong, China
Brand Name: EBUNGE
Model Number: 85 MM

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: $ 69-90 per square meter
Packaging Details: Carton paper packing ,MDF Batten cover all over the corner
Delivery Time: 7-28 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 square meters per month
Contact Now
Detailed Product Description
Product Name: Folding Partition Wall Material: MDF With Melamine
Color: Customized Function: Soundproof Partition Wall Panels
Service: ODM OEM MOQ: NO MOQ
Finish: Melanimine Package: Standard Wood Case
Frame Material: Aluminum Alloy Profile Height: 6000 MM

Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M

Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center

Operation:

When moving a wall panel there is a 20-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.

Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending presure seals. The pressure seals are extended and retracted by a single 180° turn of a removable operating handle.

Final closure of the wall is achwared by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.

Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center

Packaging & Delivery

Selling Units:Single item
Single package size: 4000X1100X100 cm
Single gross weight:26.0 kg
Package Type:Carton package, MDF batten on four section sides ,foam board on both front face
Lead Time :

Quantity(Square Meter) 1 - 50 51 - 200 201 - 500 >500
Est. Time(days) 7 18 28 To be negotiated


Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center

Components of Office Partition Walls:

Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.

Wheels/Rollers: It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.

Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.

Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.

Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.

Handle: Operate the retractable being up and down.

Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.

Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.

MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g



Finish of partition

Aluminium partition wall convention center aluminum panels acoustic panels walls for exhibition center

The bottom panel is MDF or plywood, which is unfinished face.

You can do decoration on site, such as wallpaper, paint,etc.

We can also provide the product with finished face, such as melamine, faux wood, woven fabric and leather.

Choose from our stylish fabric or leather covers and have the option to have a soft/ hard surface.

We can also provide glass partition for glass clip or aluminum panel.



FAQ

1.Q: Are you a manufacturer or trading company?

A: We are a manufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.



2. Q: What is the price of the movable wall?

A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different

walls and the price of different finishes are different. Therefore, we need you to provide us detailed

dimensions such as height, width and finish requirements. If possible, we also need your

layout drawings.



3. Q: Is the movable partition acoustic (soundproof)?

A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and

various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can

reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type

we can reach 50db.



4.Q: How to install an active partition? Is it difficult to complete?

A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall

that does not require any ground track. Therefore the hanging rail structure will be very important. We

have very detailed drawings and videos showing how to install, so your employees just need to follow

them step by step.



5.Q: Do you provide sample?

A: Yes, and the sample is free, you just pay the express delivery fee is ok.



6.Q: What is your payment terms?

A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T

before loading container, or irrevocable L/C at sight.



7. Q : What is your warranty ? What do we do in case of problems?

A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and

accessories working properly under correct operation.In case of our quality problem, we will provide

replacement by international courier. Immediate delivery of replacement parts with available in stock,

and if not stocking, the time should be depending on material ordering time which is normally 10-

15 days.
